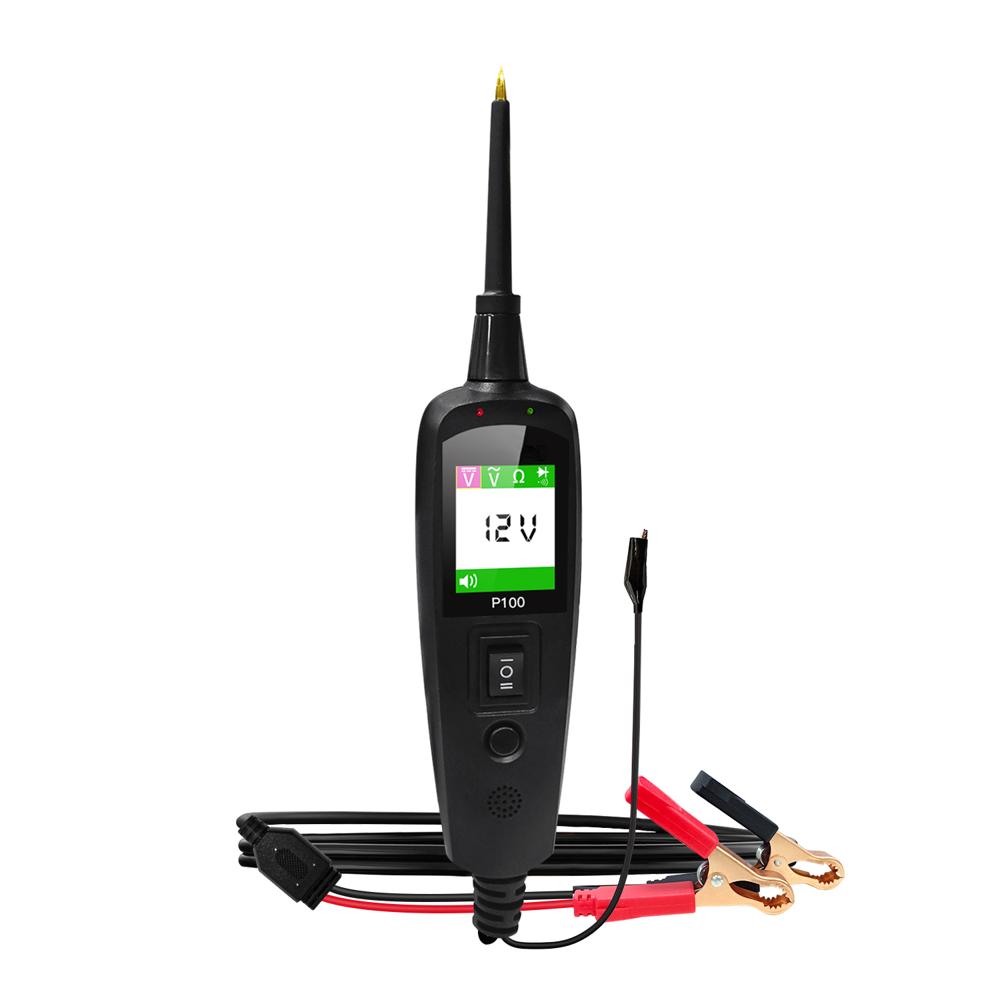

P100 Circuit Tester 12V 24V Car Electrical Diagnostic Tool AC DC Voltage Resistance Diode Test
4156.0 INR/Piece
Product Details:
- For Use In Car Electrical Systems, Automotive Diagnostics
- Surface Treatment Smooth
- Method Electronic Testing
- Connecting Type Clip-On and Probe
- Corrosion Resistant Yes
- Temperature Range -20C to 50C
- Finish Matte
- Click to View more
X
P100 Circuit Tester 12V 24V Car Electrical Diagnostic Tool AC DC Voltage Resistance Diode Test Price And Quantity
- 1 Piece
- 4156.0 INR/Piece
P100 Circuit Tester 12V 24V Car Electrical Diagnostic Tool AC DC Voltage Resistance Diode Test Product Specifications
- 210mm x 45mm x 35mm
- Car Electrical Systems, Automotive Diagnostics
- Electronic Testing
- Smooth
- Electrical Diagnostic Tool
- ABS Plastic and Metal Probes
- Manual
- Circuit Tester
- Car, Truck, Motorcycle, Bus
- Max 10A Continuous
- Approx. 350g
- -20C to 50C
- P100
- Matte
- Black
- Silent Operation
- Standard Handheld
- Over 100,000 cycles
- LCD Digital Display
- Clip-On and Probe
- Yes
- No, Power supplied from test circuit
- Yes, Built-in Fuse
- Yes, LED Indicator
- 6V~24V DC, AC/DC Testing Capability
- Yes
- Instantaneous (<1s)
- Voltage, Continuity, Resistance, Diode
- 0~200 K
- Approximately 4 meters
- Yes
Product Description
-
4 Working Modes + Diode Test Works on 1224V Sources The P100 Circuit Tester features four main working modes: DC Voltage, AC Voltage (with Max, Min, Freq, and Duty waveform display), Resistance, and Diode testing. A NEW Diode Test Mode allows you to check diode function within circuits. It also includes Sound & Language settings to toggle audio alerts on/off and select from 7 supported languages (English, German, French, Spanish, Italian, Russian, Portuguese).
-
High Performance Electrical Circuit Tester for 12V Cars & 24V Trucks Designed for professional-level diagnosis on both 12V cars and 24V trucks. Key capabilities include: AC and DC voltage testing, resistance testing, components activation (test components in your hand or while installed in the vehicle), overload protection, short circuit protection, and professional diagnosis. Comes with a 10M extension cable for extra long reach to access any part of the vehicle.
-
What Can P100 Do 4 Core Functions (1) AC/DC Voltage & Resistor measurement; (2) Activating Components in Your Hand test components like relays and fans outside the vehicle; (3) Activating Components in The Vehicle test components while they are still installed; (4) Testing Trailer Lights and Connections test trailer lamp circuits and verify proper connections.
-
Two Kinds of Supply Modes & Easy Language Selection The P100 can be powered two ways: via the vehicle's cigarette lighter socket or by connecting directly to the car battery using the included battery clamps. To select language: 1. Press [Mode Button] to enter the [Language] interface; 2. Push [Power Switch Button] forward to select, Press and Hold [Mode Button] to enter Language setting interface; 3. Press [Mode Button] to select desired language, Press and hold [Mode Button] to return to working status.
-
Complete Package Contents & Durable Design The P100 is built with ABS material and features a TFT Liquid Crystal Display. Package includes: 1x P100 Power Scanner, 1x Zipper Bag, 1x 10-metre Extension Lead, 1x User Manual, 1x Probe (stainless steel tip), 1x Battery Clamps, 1x Adapter (cigarette lighter). The circuit tester body includes: Probe, Cable, Indicator Light, Liquid Crystal Display, Power Switch, Mode Switch, Auxiliary Earth Lead, and Speaker. Operating Temperature: 0
60C (32140F). Storage Temperature: -2070C (-4158F). Dimensions: 27CM18CM8.5CM. External Power Supply: 12.0 or 24.0V supplied via the vehicle battery.
Full Product Description
Item No: P100
P100 Vehicle Electrical System Circuit Tester
Battery Circuit Tester More professional testing, a custom-tailored doctor for vehicles.
P100 Advanced Circuit Tester Make Your Car Repair More Efficient and Convenient. Multi-Lingual Support: English, Spanish, German, French, Italian, Russian, Portuguese.

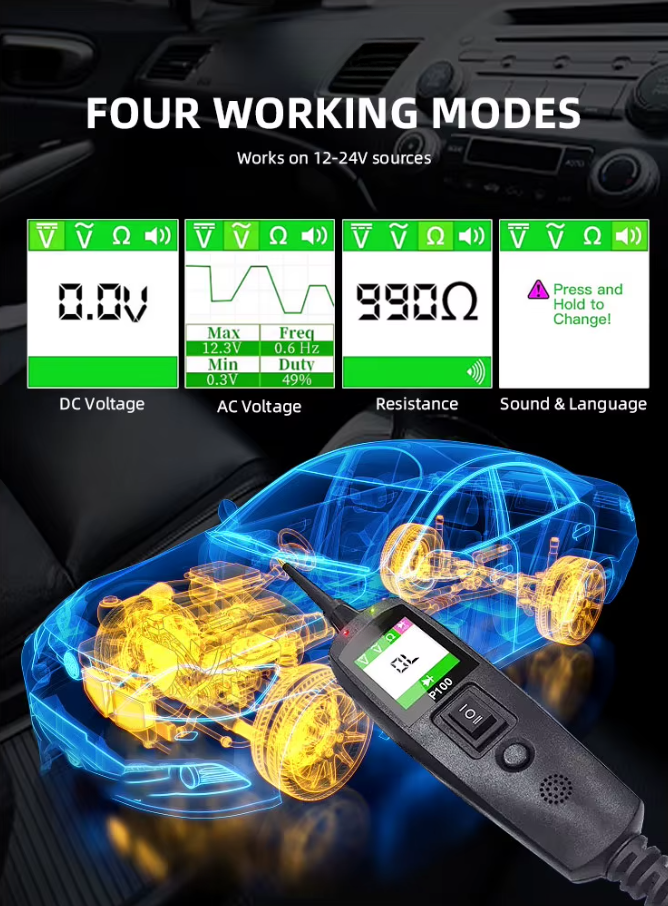

Four Working Modes (Works on 1224V Sources)
- DC Voltage Displays DC voltage reading on screen
- AC Voltage Displays AC voltage waveform with Max, Min, Freq, and Duty values
- Resistance Measures resistance of electrical components
- Diode Tests diode function in circuits
- Sound & Language Toggle sound on/off and select language

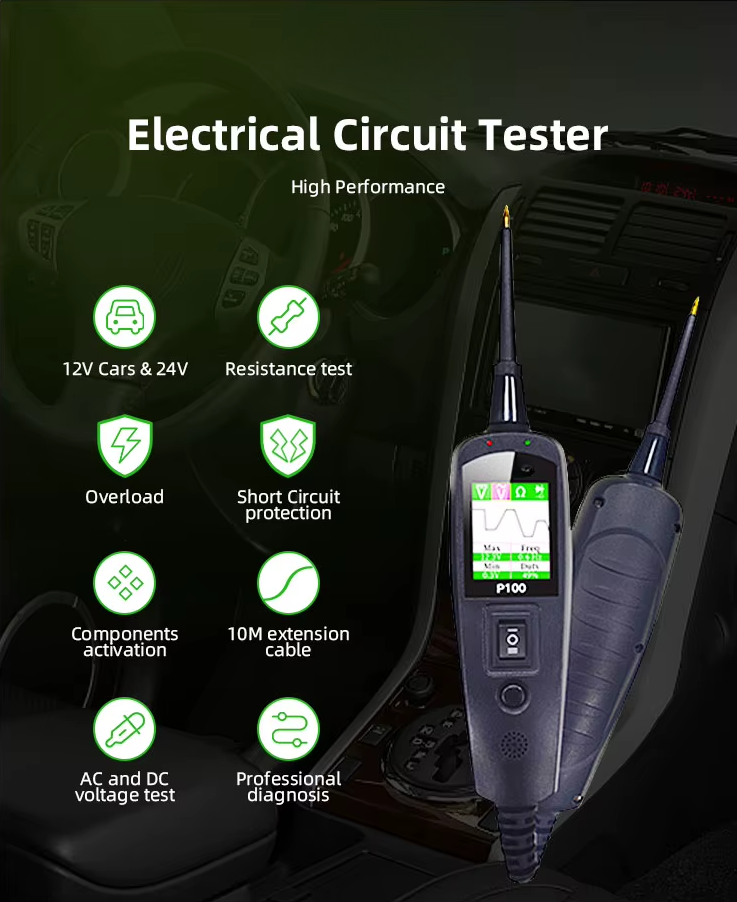

Electrical Circuit Tester High Performance
- 12V Cars & 24V Trucks Works on both 12V and 24V vehicle electrical systems
- Resistance Test Accurately measure the resistance of electrical components
- Overload Protection Built-in overload protection for safe operation
- Short Circuit Protection Protects against short circuits during testing
- Components Activation Activate components in your hand or in the vehicle
- 10M Extension Cable Extra long reach to access any part of the vehicle
- AC and DC Voltage Test Test both AC and DC voltage
- Professional Diagnosis Professional-level diagnostic capability
- Diode Test Mode NEW function for diode testing
What Can P100 Do
- AC/DC Voltage & Resistor Measure AC/DC voltage and resistance
- Activating Components in Your Hand Test components outside the vehicle
- Activating Components in The Vehicle Test components while installed in the vehicle
- Testing Trailer Lights and Connections Test trailer lamp circuits and connections

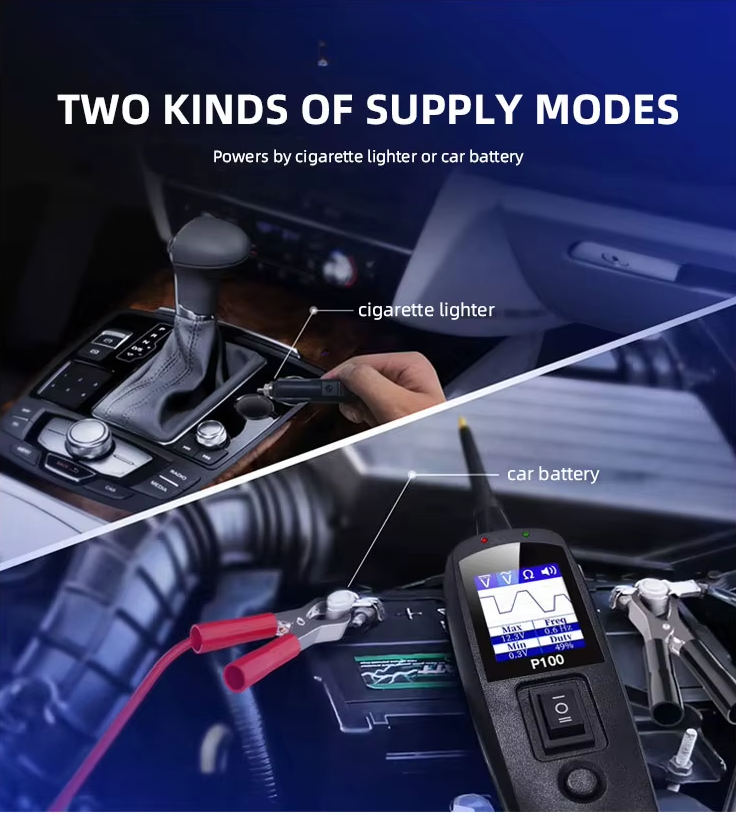

Two Kinds of Supply Modes
Powers by cigarette lighter or car battery:
- Cigarette Lighter Plug into the vehicle's cigarette lighter socket for power
- Car Battery Connect directly to the vehicle's battery using battery clamps

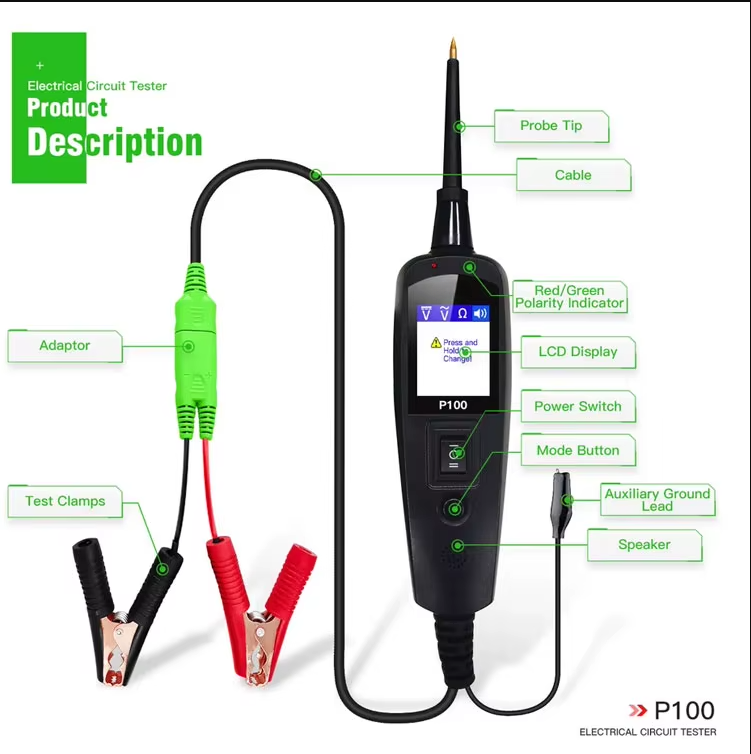

Circuit Tester Product Specifications (Component Diagram)
- Probe Stainless steel probe tip for precise contact
- Cable Durable connection cable
- Indicator Light LED indicator lights (red and green)
- Liquid Crystal Display TFT color screen
- Power Switch On/Off power control
- Mode Switch Switch between testing modes
- Auxiliary Earth Lead Built-in auxiliary ground lead
- Speaker Built-in speaker for audible alerts
- Adapter Cigarette lighter adapter for power
- Battery Clamps Heavy-duty battery clips for direct battery connection
Package Contents Simple and Practical
Includes P-100 main unit and 10M extension cable, all packed in a rugged carrying case.
- 1 x P100 Power Scanner
- 1 x Zipper Bag
- 1 x 10-metre Extension Lead
- 1 x User Manual
- 1 x Probe
- 1 x Battery Clamps
- 1 x Adapter
Advanced Car Electrical Diagnostics
The P100 Circuit Tester is engineered for advanced diagnostics in automotive electrical systems. Supporting 6V-24V AC/DC testing, it provides swift measurement of voltage, resistance, and diode functionality. Designed for use in cars, trucks, motorcycles, and buses, this tool ensures accurate fault tracing for every automotive professional or hobbyist.
Robust Design and User-Friendly Features
Constructed from durable ABS plastic and metal, the P100 boasts a matte finish and a comfortable, handheld build. The four-meter-long probe cable and clip-on/probe connections increase reach and flexibility in tight engine bays. Its LCD display provides clear, real-time readings, while LED indicators and polarity detection streamline troubleshooting.
FAQ's of P100 Circuit Tester 12V 24V Car Electrical Diagnostic Tool AC DC Voltage Resistance Diode Test:
Q: How does the P100 Circuit Tester power itself during operation?
A: The P100 Circuit Tester draws power directly from the electrical circuit being tested, eliminating the need for an external battery. This design ensures uninterrupted use and convenience in various vehicle diagnostics.Q: What types of tests can I perform with this diagnostic tool?
A: You can measure AC/DC voltages from 6V to 24V, check resistance values up to 200 K, test diode functionality, verify continuity, and determine polarity. The tool also has LED indicators and an LCD digital display for clear and instant feedback.Q: Where can I use the P100 Circuit Tester?
A: This tester is suitable for automotive electrical systems, including cars, trucks, motorcycles, and buses. Its clip-on and probe connection design makes it versatile for garages, workshops, and road-side diagnostics.Q: What is the process for conducting voltage and resistance tests with the P100?
A: To conduct tests, simply connect the tester's clips or probe to the component or wire in question, select the appropriate test mode (voltage, resistance, etc.), and view instant results on the LCD display. No special setup is required, and results are delivered in less than a second.Q: What are the benefits of using the P100 Circuit Tester over traditional multimeters?
A: The P100 offers faster diagnosis with a near-instant response, hands-free operation thanks to the long probe cable, built-in overload and fuse protection, and an intuitive interface. It is particularly optimized for automotive use with features like polarity indication and silent operation.Q: Is the P100 Circuit Tester safe for sensitive vehicle electronic systems?
A: Yes, the tester includes overload protection and a built-in fuse, ensuring it is safe to use on modern vehicles with delicate electronic modules. Its corrosion-resistant materials and robust build further enhance safety and longevity.Tell us about your requirement
