P100PRO Circuit Tester 12V 24V Oscilloscope Battery Diagnostic Pathfinder Dual Probe
12185.0 INR/Piece
Product Details:
- Surface Treatment Textured Plastic Finish
- Part Type Diagnostic Tool
- Finish Matte Finish
- Vehicle Type Car, Truck, Bus, Motorcycle (12V/24V Systems)
- Color Black & Red
- Operating System Independent Handheld Operation
- Size 255 mm x 75 mm x 38 mm (excluding cables)
- Click to View more
X
P100PRO Circuit Tester 12V 24V Oscilloscope Battery Diagnostic Pathfinder Dual Probe Price And Quantity
- 12185.0 INR/Piece
- 1 Piece
P100PRO Circuit Tester 12V 24V Oscilloscope Battery Diagnostic Pathfinder Dual Probe Product Specifications
- Textured Plastic Finish
- Diagnostic Tool
- -20C to 60C
- Matte Finish
- Black & Red
- Car, Truck, Bus, Motorcycle (12V/24V Systems)
- Independent Handheld Operation
- ABS Plastic and Electronic Components
- Digital Testing and Signal Analysis
- Maximum Test Load 35A
- Over 10,000 Tests
- 255 mm x 75 mm x 38 mm (excluding cables)
- 255 mm x 75 mm x 38 mm (main unit)
- Automotive Electrical Diagnosis and Testing
- Dual Probe / Alligator Clips
- P100PRO
- Circuit Tester Oscilloscope
- Yes
- High-definition Color LCD Display
- Approx. 430 g
- Silent Operation
- Yes, for screen visibility
- Multi-language menu
- PWM adjustable output
- Dual replaceable sharp probes
- <10 ms
- Direct from Vehicle Battery (12V/24V supported)
- Included
- Up to 70V Reverse Polarity Protection
- Multicolor for Status and Faults
- 1MHz
- Built-in protection circuit
- Yes
- Voltage test, Continuity test, Diode test, Signal analysis, Component activation
- 0-70V DC (1% accuracy)
- 6 meters
Product Description
Intelligent Voltage/Resistance Recognition & Multimeter Mode The P100 PRO Circuit Tester features intelligent automatic identification of voltage and resistance without manual switching. Multimeter mode includes DC Voltage (VDC), Resistance (OHM), Diode (DIO), and Continuity (CONT) testing with Min/Max voltage display on a 2.4-inch color LCD display.
Oscilloscope & 0-5V Adjustable Power Supply Built-in oscilloscope function provides parameter curve diagrams of tested components for advanced waveform analysis. The 0-5V adjustable power supply allows safe testing of ECU and sensor signals without risking damage to sensitive components.
Battery Diagnostics & Pathfinder Mode Comprehensive battery diagnostic suite includes Charging Test, Startup Test, Load Test, and Power Output Test. Pathfinder Mode (Breakpoint Detection) locates breakpoints in wires using a sonic signal, compatible with the P181 receiver for fault location.
Component Activation with Circuit Breaker Protection Activate vehicle components like lights, motors, and trailer lights with three activation modes: Moment, Latch, and Pulse. Built-in circuit breaker protection with overload and short-circuit protection ensures safe operation. Supports 9V to 30V vehicle electrical systems for both 12V cars and 24V trucks.
Dual Probes, 14 Languages & Free Firmware Updates Includes both bendable (90-degree) and extendable probes for tight spaces. Supports 14 languages: English, Spanish, German, French, Portuguese, Italian, Polish, Vietnamese, Russian, Thai, Indonesian, Malay, Filipino, and Arabic. Free online firmware updates (currently V6.10). Supported vehicles: Car, Pickup, SUV, Motorcycle, Excavator, Steamship. Package includes: Main Unit, Copper Probe Tip, Extension Cable, Battery Hookup Clips, User Manual, Alligator Clip, Portable Tool Bag, Bendable Back Probe, Extendable Back Probe (9 items).
Full Product Description:
Item No: P100PRO

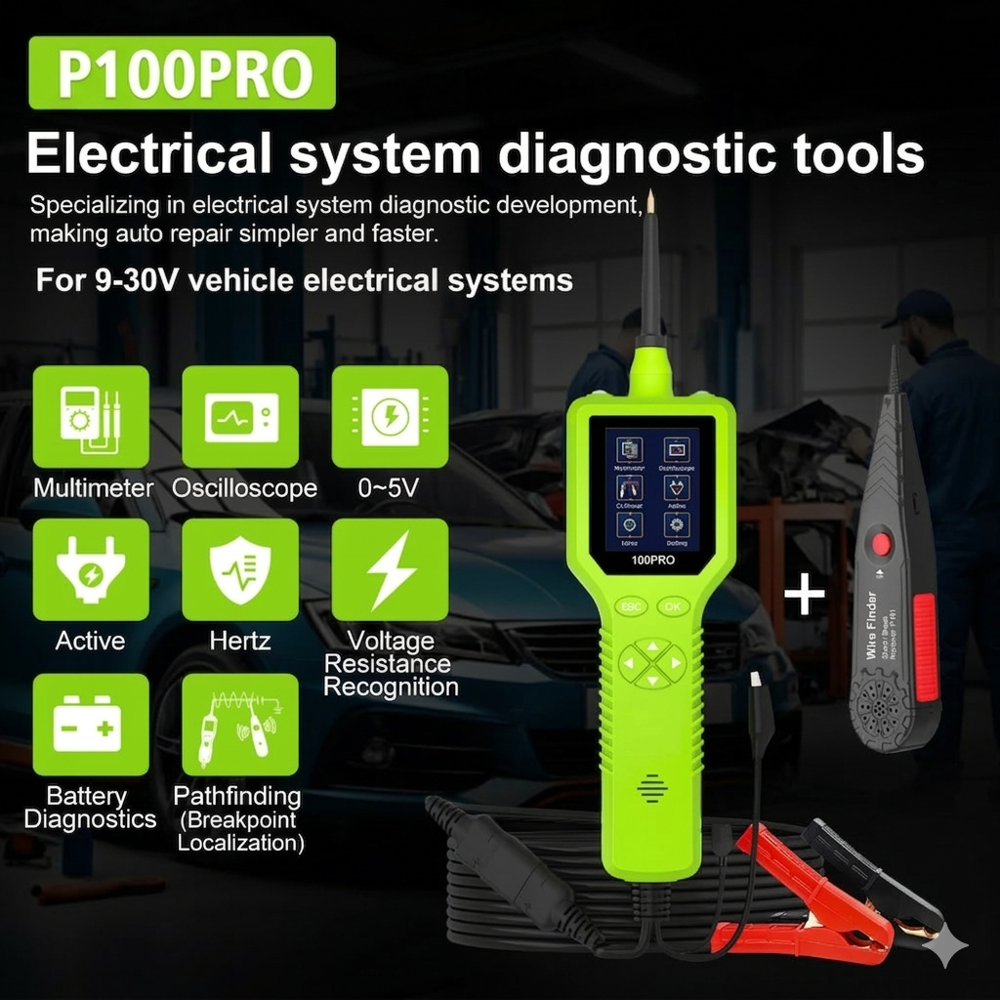

P100 PRO Vehicle Electrical System Circuit Tester
Advanced Circuit Tester with Oscilloscope and Pathfinder Make Your Car Repair More Efficient and Convenient. Free online firmware updates currently upgraded to V6.10.
Intelligent Test & Multimeter Mode
Intelligent Voltage/Resistance Recognition Automatically identifies and measures voltage and resistance without manual switching
DC Voltage (VDC) Displays DC voltage with Min/Max values on screen
Resistance (OHM) Accurately measures resistance of electrical components
Diode (DIO) Tests diode function in circuits
Continuity (CONT) Checks for continuous circuit paths

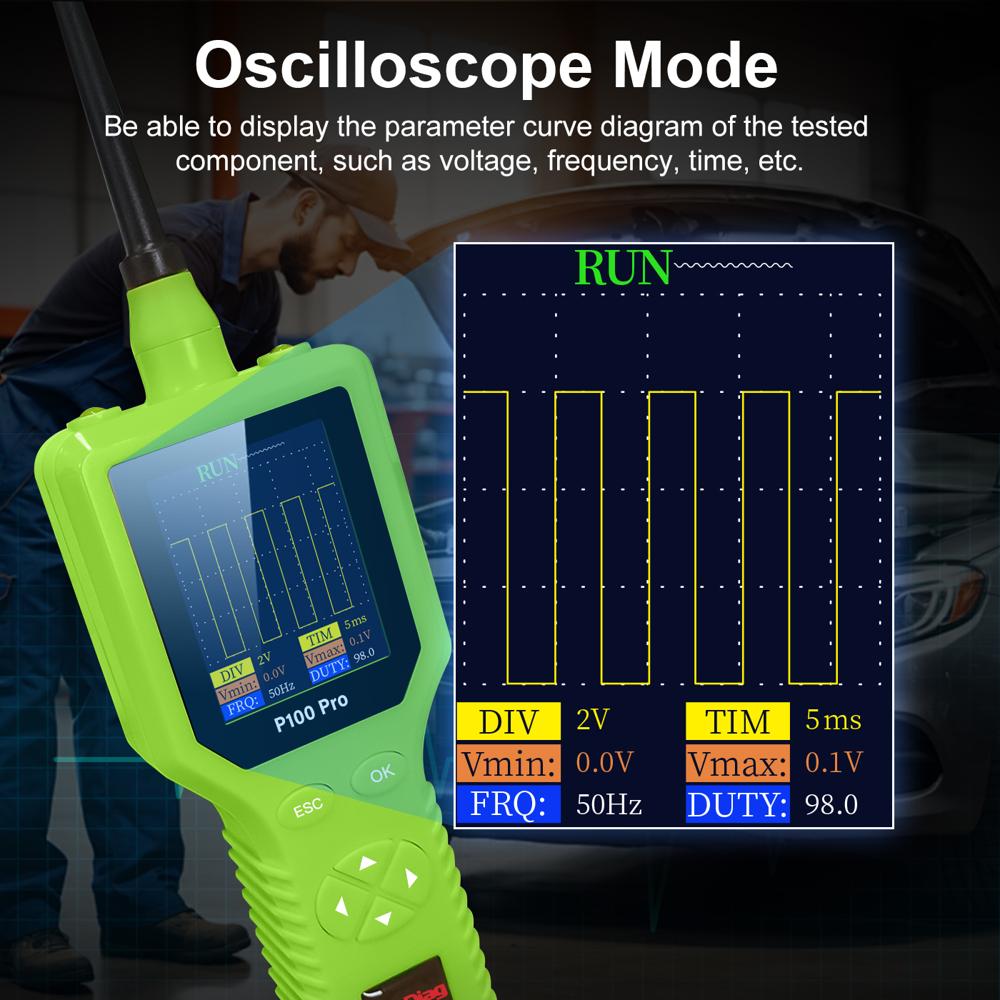

Oscilloscope Function
Provides a parameter curve diagram of the tested component
Advanced wave analysis for signal diagnostics
Real-time waveform display on 2.4-inch color LCD
Battery Diagnostics
Charging Test Tests the battery charging system
Startup Test Tests battery cranking performance
Load Test Tests battery under load conditions
Power Output Test Tests battery power output capability
Pathfinder Mode (Breakpoint Detection)
Specialized mode for locating breakpoints in wires
Uses sonic signal for fault detection
Compatible with P181 receiver for advanced pathfinding
Added in V6.10 firmware update

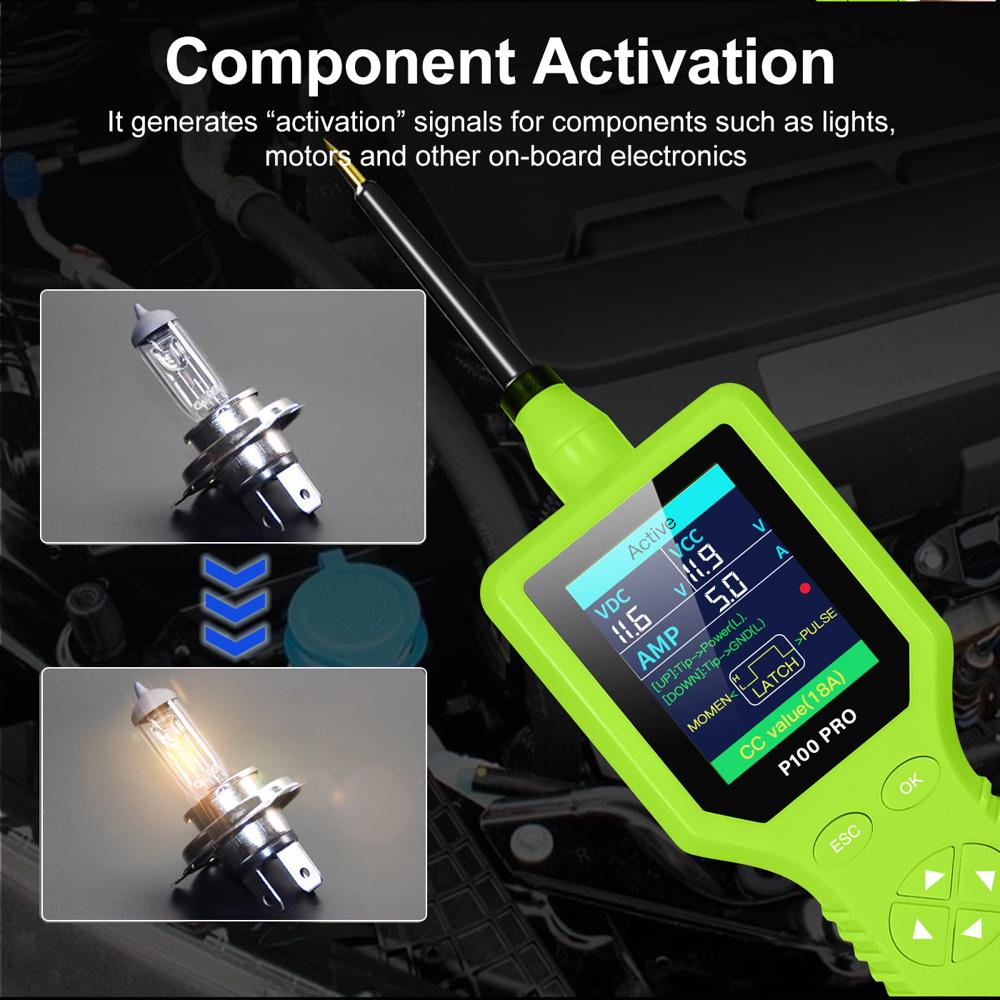

Component Activation

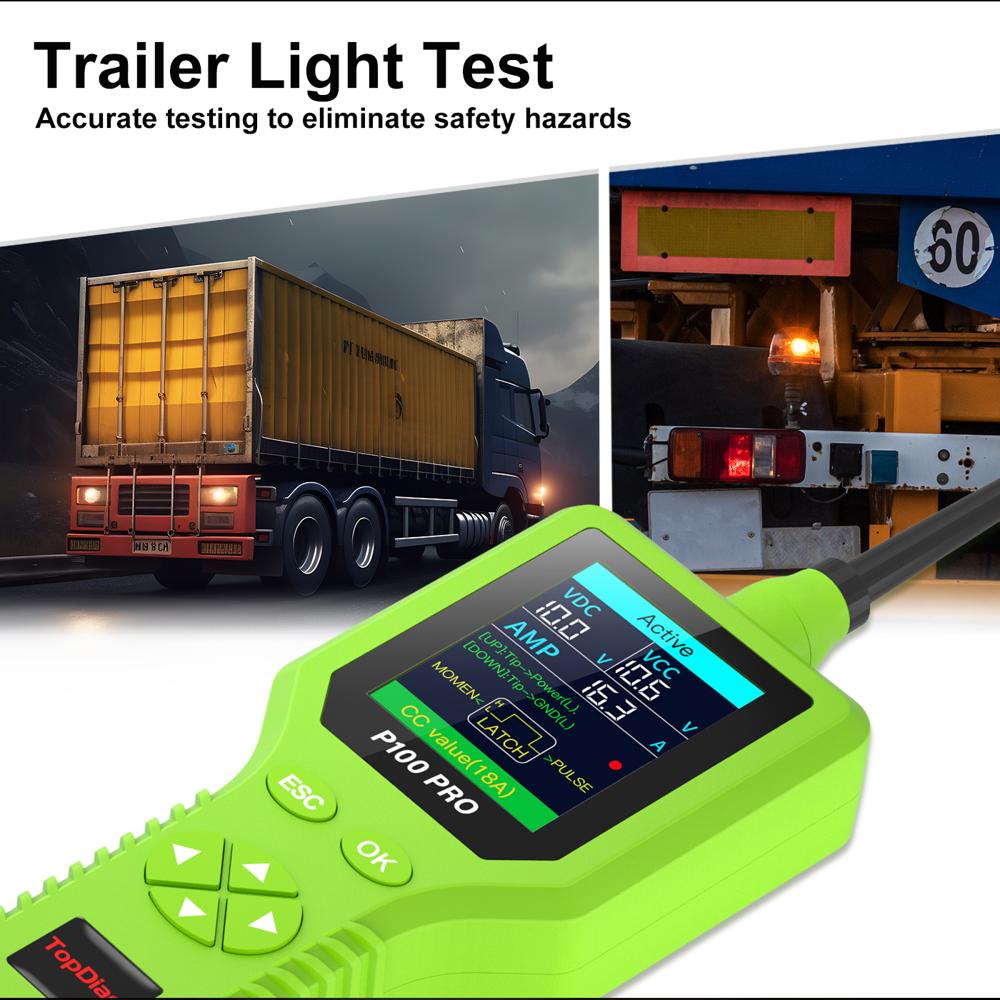

Powers components like lights, motors, and trailer lights
3 activation modes: Moment, Latch, and Pulse
Built-in circuit breaker protection overload and short-circuit protection
0-5V Adjustable Power Supply
Safe voltage output for testing ECU and sensor signals
Adjustable from 0V to 5V without damage to sensitive components
Frequency & Duty Cycle
Measures Hertz and Duty Cycle for signal diagnostics
Hardware Specifications
Display 2.4-inch color LCD display
Operating Voltage Supports 9V to 30V vehicle electrical systems
Dual Probes Includes both bendable (90-degree) and extendable probes for tight spaces
Dimensions Main body measures 19.50 cm (7.68 in) x 3.00 cm (1.18 in)
Supported Vehicles Car, Pickup, SUV, Motorcycle, Excavator, Steamship
14 Languages English, Spanish, German, French, Portuguese, Italian, Polish, Vietnamese, Russian, Thai, Indonesian, Malay, Filipino, Arabic
Component Diagram
Probe Tip & Front LED Light
LCD Display & Key Button Operation
Auxiliary Ground Lead & Speaker (for sound alerts/Pathfinder)
USB Port (for updates)
Test Clamps & Adaptor

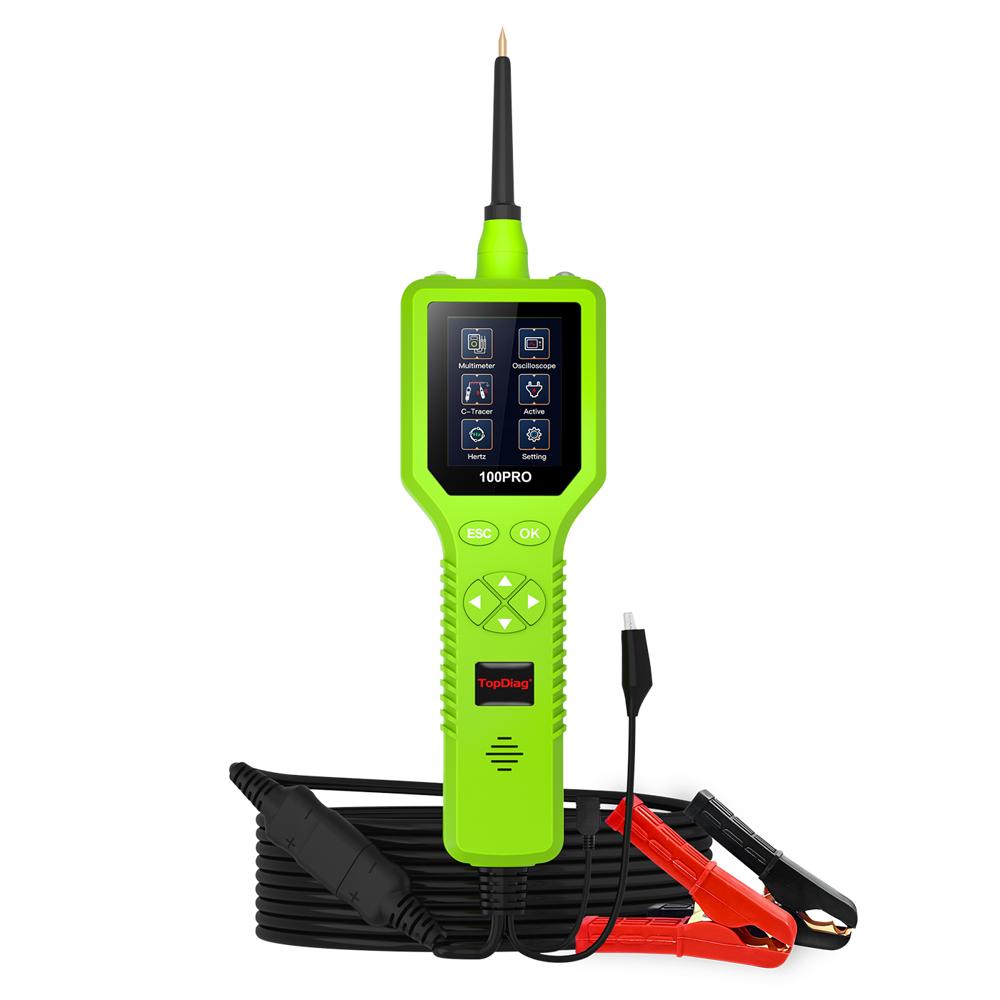

Package Contents (9 Items)
1 x Main Unit (P100 Pro)
1 x Copper Probe Tip
1 x Extension Cable
1 x Battery Hookup Clips
1 x User Manual
1 x Alligator Clip
1 x Portable Tool Bag
1 x Bendable Back Probe
1 x Extendable Back Probe
Advanced Diagnostic Capabilities
The P100PRO Circuit Tester delivers multi-functional testing with modes for voltage, continuity, diode checks, and signal analysis-essential for quick and accurate automotive electrical diagnostics. Its oscilloscope functionality enables detailed waveform inspection, supporting modern diagnostic needs.
User-Friendly and Durable Design
Engineered for convenience, the tester provides a backlit, high-definition LCD display, intuitive multi-language menu, and responsive data hold function. Its dual replaceable sharp probes and long cable allow flexibility during vehicle inspections, while the robust ABS plastic casing ensures durability in demanding environments.
Enhanced Safety and Reliability
Safety is prioritized through features such as built-in short-circuit protection, reverse polarity protection up to 70V, and maximum test load support of 35A. The P100PRO is designed for silent operation and offers over 10,000 tests in its working life, making it a dependable tool for professionals.
FAQ's of P100PRO Circuit Tester 12V 24V Oscilloscope Battery Diagnostic Pathfinder Dual Probe:
Q: How do I use the P100PRO Circuit Tester for voltage measurement?
A: Simply connect the dual probes or alligator clips to the desired circuit point and select the voltage test mode. The high-definition color LCD will display real-time voltage readings, accurate within 1% across a 0-70V DC range.Q: What makes the P100PRO suitable for both 12V and 24V vehicle systems?
A: The P100PRO is engineered for compatibility with both 12V and 24V automotive electrical systems, making it practical for cars, trucks, buses, and motorcycles. Its adjustable output and wide measurement range ensure versatile use across different vehicle types.Q: When should I use the oscilloscope function on this device?
A: Use the oscilloscope mode when you need to analyze electrical waveforms, diagnose complex signal patterns, or check component performance. The 1MHz bandwidth is especially helpful for detecting irregularities in sensor signals or verifying actuator responses.Q: Where can I utilize the dual probe design most effectively?
A: The dual replaceable sharp probes provide precision testing in tight spots and intricate wiring harnesses, making them ideal for tasks where alligator clips may not fit. This ensures flexibility and accuracy during on-vehicle diagnostics.Q: What is the benefit of the multicolor LED indicator and backlight feature?
A: The multicolor LED indicator quickly communicates operational status and fault conditions, while the backlight ensures clear screen visibility in dimly lit environments. These features enhance usability and reduce diagnostic errors.Q: How does the built-in short-circuit and reverse polarity protection work?
A: The device's integrated safety circuits protect both the tester and the vehicle's electronics from accidental shorts or incorrect connections, supporting input protection up to 70V and maintaining safe operation during diagnostic tasks.Q: Can the P100PRO handle heavy-duty automotive electrical testing?
A: Yes, the P100PRO supports a maximum test load of 35A and withstands the demands of frequent professional use, offering corrosion resistance and a robust construction for reliable performance in workshops and field environments.Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
