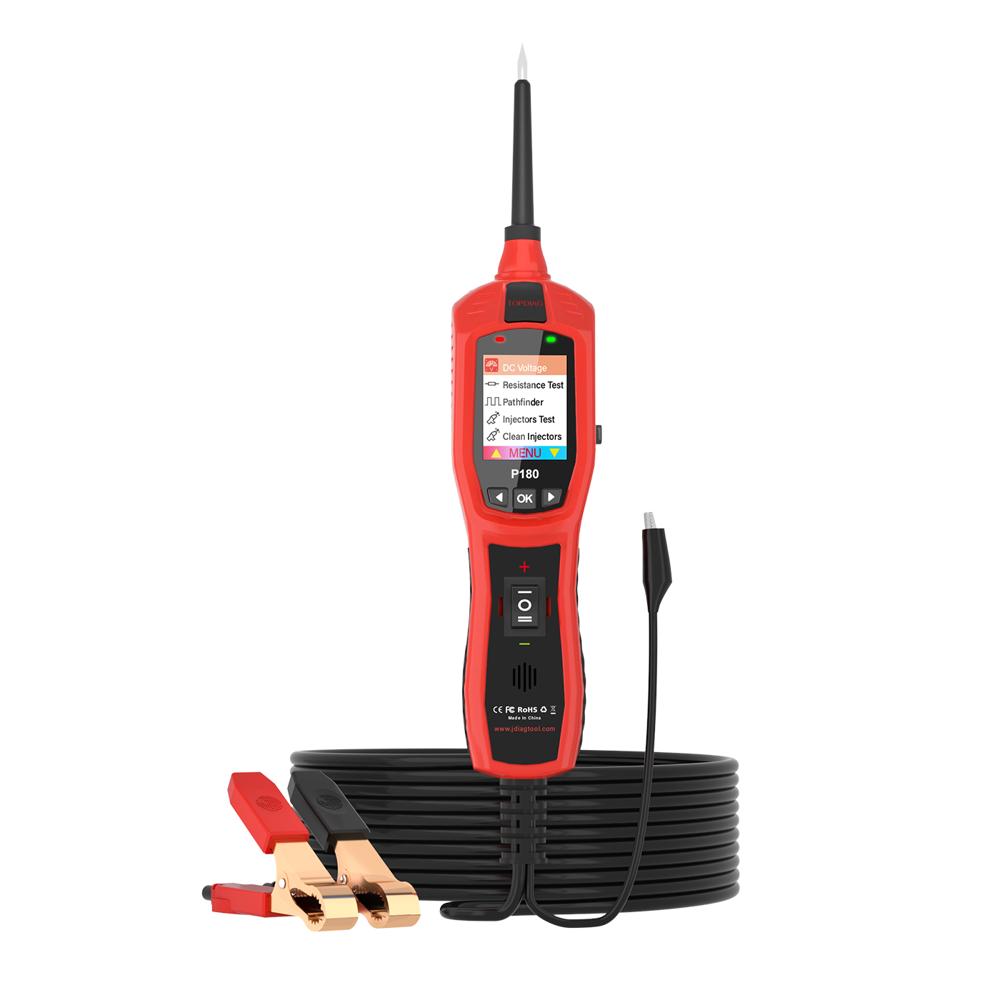

P180 Circuit Tester 12V 24V Oscilloscope Relay Injector Test 0-5V Power Supply 18A
13129.0 INR/Piece
Product Details:
- Part Type Testing Tool
- Material ABS, Electronic Components
- Noise Level Silent Operation
- Working Life Over 100,000 cycles
- Model No P180
- Temperature Range -20C to +60C
- Operating System Manual/Handheld
- Click to View more
X
P180 Circuit Tester 12V 24V Oscilloscope Relay Injector Test 0-5V Power Supply 18A Price And Quantity
- 13129.0 INR/Piece
- 1 Piece
P180 Circuit Tester 12V 24V Oscilloscope Relay Injector Test 0-5V Power Supply 18A Product Specifications
- P180
- Over 100,000 cycles
- Digital LCD
- Silent Operation
- Yes
- Universal (Car, Truck, Motorcycle)
- ABS, Electronic Components
- Testing Tool
- Electronic Probe
- Automotive Electrical Testing, 12V/24V Systems
- Black and Red
- Circuit Tester
- 420 g
- 18A
- Manual/Handheld
- Clip and Probe
- 217 x 52 x 35 mm
- Textured
- Matte Finish
- Handheld
- -20C to +60C
- Approximately 4 meters
- 12V and 24V DC
- Oscilloscope, Relay Tester, Injector Test, Voltage Test, Continuity Test, Circuit Polarity Detection, Power Supply Output
- Max 18A
- 0-5V (Power Supply)
- Yes
- Stainless Steel Sharp Probe
- Instantaneous
- Approx. 40 mA (standby), Max 18A (in use)
- Direct from Vehicle Battery
- Overload Protection, Short Circuit Protection, Over-Temperature Protection
- Professional and DIY Mechanics
- Automotive Maintenance, Diagnostics, Electric Circuit Test, Component Activation
Product Description
Intelligent Test & Multimeter Mode DC Voltage, Resistance, Diode, Continuity The P180 Circuit Tester features Intelligent Test mode that automatically identifies voltage, resistance, and positive/negative poles without manual switching. Multimeter mode includes DC Voltage (0.1V-200V), Resistance (1-200K), Diode Test, and Continuity Test. 2.4-inch color TFT display (320*240 DPI) for clear readings.

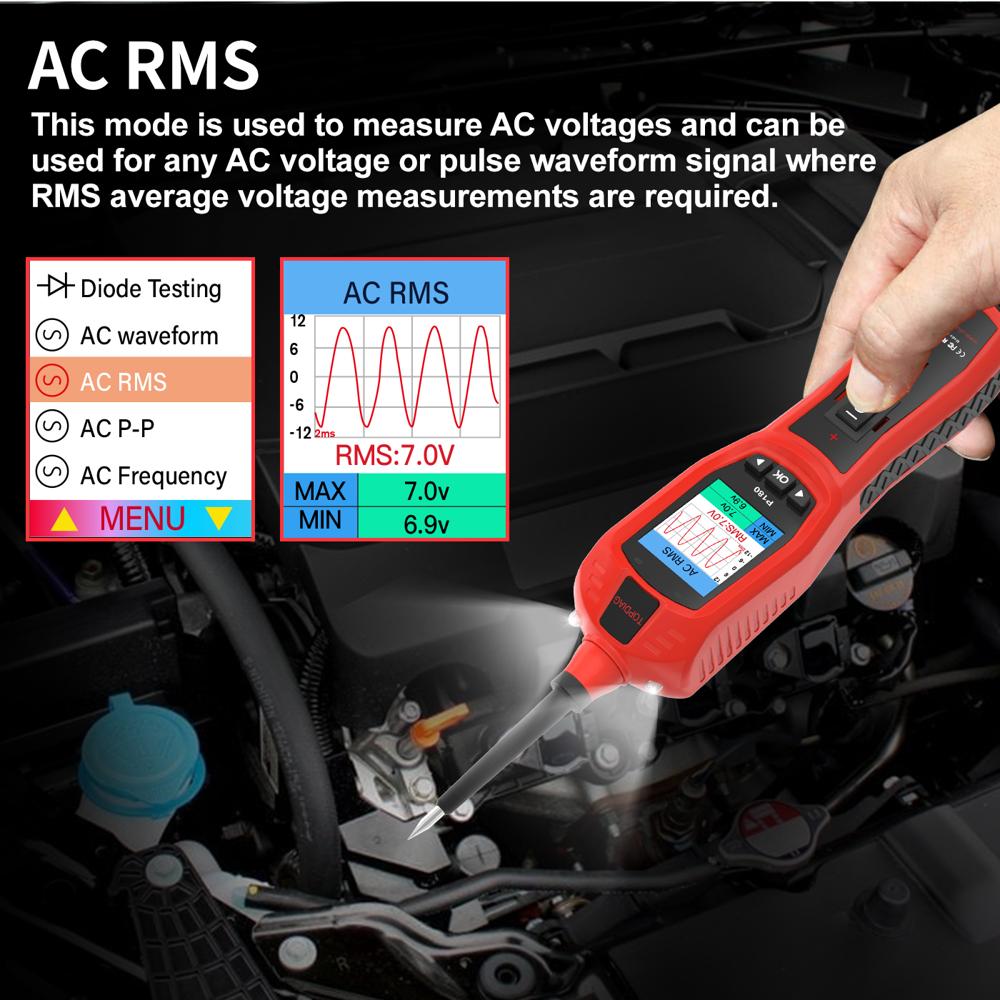

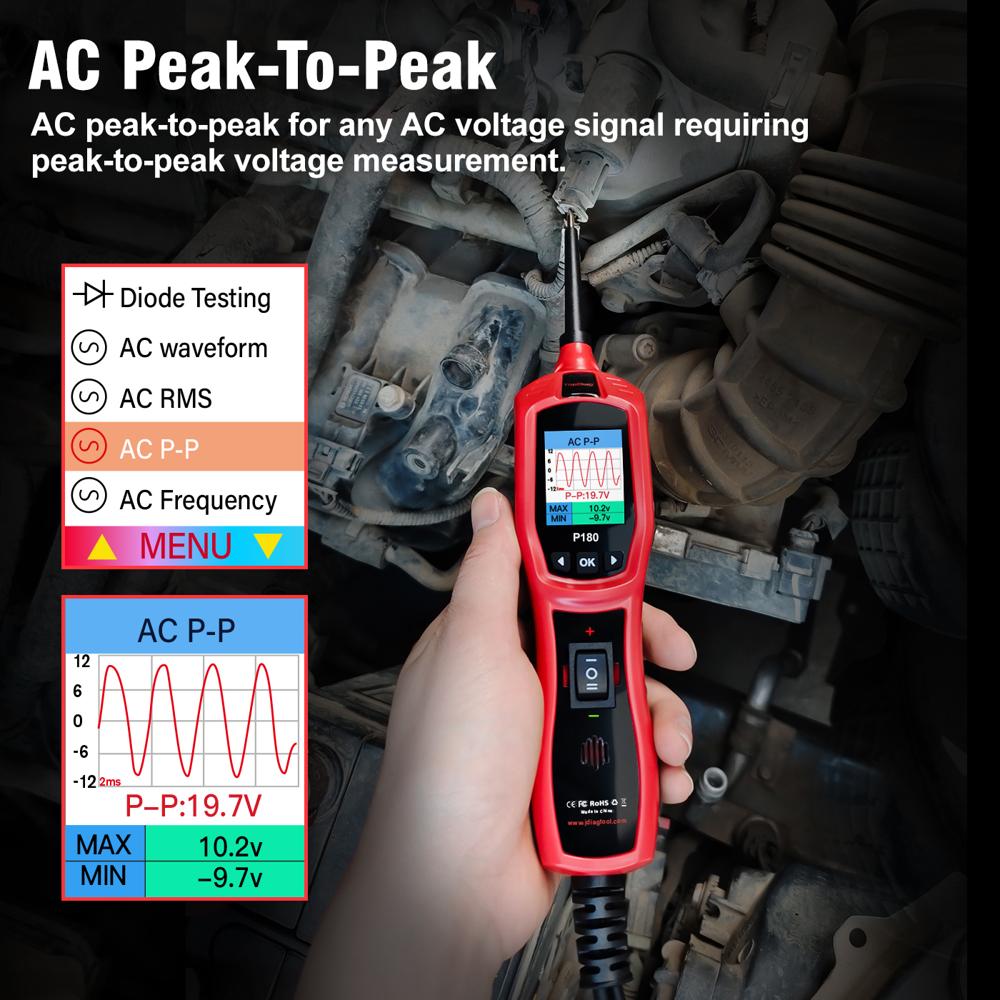

Oscilloscope & 0-5V Adjustable Power Supply Built-in oscilloscope mode displays voltage waveforms, frequency, and pulse width in real-time for advanced signal diagnostics. The 0-5V adjustable power supply provides safe voltage output for testing sensitive components like sensors and ECUs without risking damage.
Relay Test & Injector Test Dedicated Relay Test mode supports detection of most common automotive relays including both 5-terminal and 4-terminal types. Injector Test mode measures signals from fuel injectors, including max/min/avg voltage, frequency, and pulse width for comprehensive fuel system diagnostics.
Component Activation with 18A Circuit Breaker Protection Activate vehicle components with 3 modes: Momentary, Latch, and Pulse. Equipped with an 18A circuit breaker protection that automatically resets for safe operation. Supports 12V and 24V vehicle electrical systems. Working Voltage: 9V-30V. Maximum Measuring Voltage: 150V. Maximum Continuous Current: 18A.

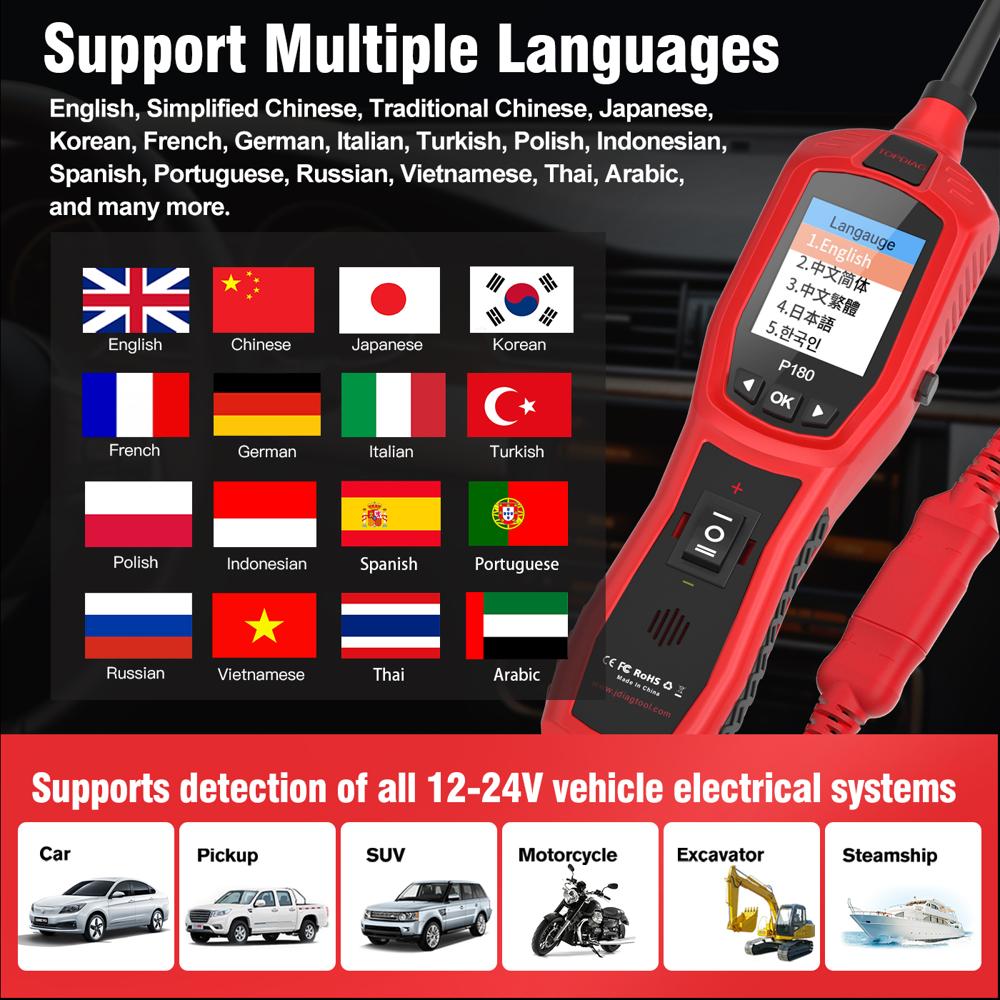

14 Languages, LED Work Light & Complete Package Supports 14 languages: English, German, French, Spanish, Italian, Portuguese, Russian, Polish, Dutch, Japanese, Korean, Arabic, Turkish, Chinese. Integrated LED work light at the probe tip for dark environments. Power supply via car battery, cigarette lighter, or external power. Working Temperature: 0-60C (32-140F). Storage Temperature: -40-70C (-40-158F). Package includes: P180 Main Unit, Copper Alloy Probe Tip, 20ft (6m) Extension Connection Cable, Battery Clamp Cable, Cigarette Lighter Cable, User Manual, Portable Blow Mold Case (7 items).
Full Product Description:
Item No: P180
P180 Vehicle Electrical System Circuit Tester
Advanced Automotive Electrical Diagnostic Tool with Intelligent Test, Oscilloscope, Relay Test, Injector Test, 0-5V Power Supply, and 18A Circuit Breaker Protection. Compatible with 12V and 24V vehicle electrical systems.
Intelligent Test
Automatically identifies voltage, resistance, and positive/negative poles
No manual switching required
Multimeter Mode

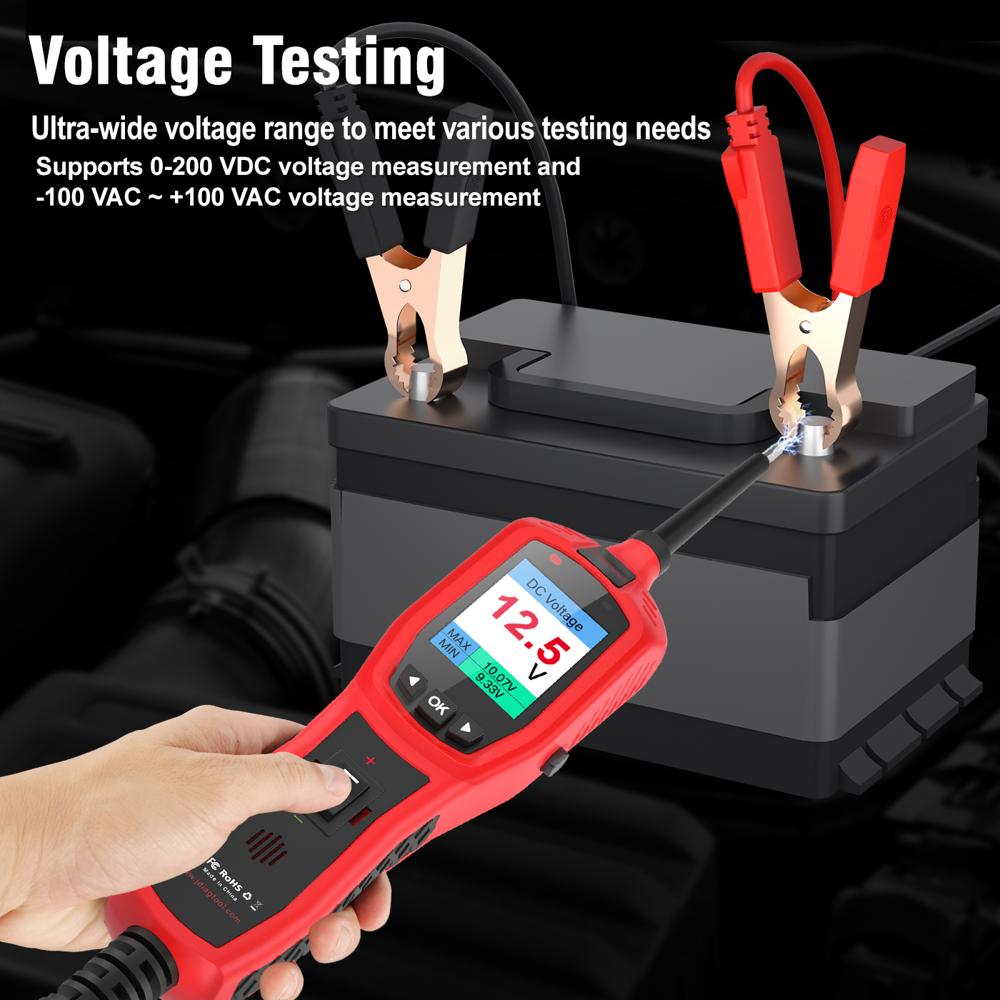

DC Voltage 0.1V to 200V
Resistance 1 to 200K
Diode Test Checks diode functionality
Continuity Test For circuit path verification
Oscilloscope Mode
Displays voltage waveforms in real-time
Measures frequency and pulse width
Advanced signal diagnostics
Component Activation
3 activation modes: Momentary, Latch, and Pulse
18A circuit breaker protection (automatically resets)
Safely activate pumps, fans, lights, motors
0-5V Adjustable Power Supply
Adjustable output voltage 0-5V
Safe testing of sensitive components like sensors and ECUs
Injector Test
Measures signals from fuel injectors
Includes max/min/avg voltage, frequency, and pulse width
Relay Test
Tests standard 5-terminal and 4-terminal automotive relays
Key Features
Display 2.4-inch color TFT display (320*240 DPI)
Voltage Support 12V and 24V electrical systems
Integrated LED Work Light At the probe tip for dark areas
14 Languages English, German, French, Spanish, Italian, Portuguese, Russian, Polish, Dutch, Japanese, Korean, Arabic, Turkish, Chinese
Power Supply Car battery, cigarette lighter, or external power
Technical Specifications
Working Temperature 0-60C (32-140F)
Storage Temperature -40-70C (-40-158F)
Working Voltage 9V to 30V
Maximum Measuring Voltage 150V
Resistance Range 1 to 200K
Active Current Range 0A to 18A
Maximum Continuous Current 18A
Component Diagram (Main Unit)
Probe Tip Copper alloy for testing
LED Work Light Illuminates the test point
2.4-inch Color Display Shows all measurements and waveforms
Navigation Buttons Up, Down, Left, Right arrows
Menu/OK & Back/Exit Buttons For interface navigation
Power Switch Located on the side for activating components
Package Contents (7 Items)
1 x P180 Main Unit
1 x Copper Alloy Probe Tip
1 x 20ft (6m) Extension Connection Cable
1 x Battery Clamp Cable
1 x Cigarette Lighter Cable
1 x User Manual
1 x Portable Blow Mold Case
Comprehensive Automotive Circuit Testing
The P180 Circuit Tester empowers users with multiple testing capabilities: oscilloscope analysis, relay and injector tests, voltage and continuity checks, polarity diagnostics, and component activation. This all-in-one solution is suitable for everyday automotive maintenance and more advanced diagnostics, enhancing efficiency in workshops and home garages alike.
High Performance and Durability
Built with precision, the P180 supports high up to 18A output directly from the vehicle battery, ensuring robust component activation. The tool features essential safety mechanisms-overload, short circuit, and over-temperature protections. Its stainless steel probe and ABS body are engineered for longevity and corrosion resistance, even in tough working conditions.
User-Friendly Operation and Display
The digital LCD display with backlight and intuitive clip-probe connection make the P180 circuit tester easy to use. The four-meter cable offers flexibility, while manual/handheld operation allows for precise and confident diagnostics on any 12V or 24V vehicle. Its silent operation and compact size ensure convenience without noise disruption.
FAQ's of P180 Circuit Tester 12V 24V Oscilloscope Relay Injector Test 0-5V Power Supply 18A:
Q: How do I use the P180 Circuit Tester to check for voltage in a circuit?
A: To test voltage, secure the P180's clip to the vehicle battery and use the stainless steel probe to touch the circuit point. The digital LCD will instantly display voltage readings between 0-5V, allowing you to identify power presence and measure precise levels.Q: What types of vehicles are compatible with the P180 Circuit Tester?
A: The P180 is universally compatible with all types of vehicles equipped with 12V or 24V electrical systems, including cars, trucks, and motorcycles, making it suitable for both personal and professional automotive work.Q: When should I utilize the relay or injector testing functions?
A: Activate the relay or injector testing functions when diagnosing starting issues, component failures, or inconsistent engine performance. These features help verify proper operation and quickly pinpoint faulty relays or injectors in your vehicle's system.Q: Where is the best place to connect the tester's power supply output?
A: Always connect the tester's clips directly to the vehicle's battery terminals. This ensures a stable power source for all functions, including component activation (up to 18A) and accurate diagnostic readings.Q: What process does the overload protection feature follow?
A: The P180 includes an intelligent protection circuit that detects overload, short circuit, or excessive heat. When these conditions occur, the tool instantly cuts off power to prevent damage and enhances user safety.Q: How can I benefit from the oscilloscope function on this tester?
A: The built-in oscilloscope provides real-time waveform analysis of voltage signals, which aids in diagnosing irregular electrical activity, verifying signal patterns, and ensuring electrical components are functioning correctly.Q: Is the P180 Circuit Tester suitable for DIY mechanics as well as professionals?
A: Yes, its ergonomic design, intuitive controls, and robust safety features make it ideal for both professionals in a workshop setting and DIY enthusiasts working on their own vehicles.Tell us about your requirement
