P200 Smart Hook Circuit Tester 12V 24V Oscilloscope Relay Injector Battery Diagnostic

Product Description

Smart Test & Enhanced Multimeter DC Voltage, Resistance, Diode, Current, Frequency The P200 Smart Hook Circuit Tester features Smart Test mode for automatic identification of voltage and resistance. Enhanced multimeter mode includes DC Voltage, Resistance, Diode/Continuity Test, Current (Ampere), and Frequency measurement. 2.4-inch TFT true color display (320*240 DPI). Supports 9V-30V operating voltage for 12V and 24V vehicles.

Oscilloscope, Relay Test & Injector Test Built-in oscilloscope mode provides visual waveform testing for advanced signal diagnostics. Relay Test supports most common automotive relays including 5-terminal and 4-terminal types. Injector Test supports 4 pulse modes for comprehensive fuel injector testing. Measuring voltage range: 0.1V-150V. Resistance measurement: 1-200K.

Battery Diagnostics & Fault Location (C-Tracer) Comprehensive battery diagnostic suite includes Charging Test, Startup (Cranking) Test, and Load Test. Specialized C-Tracer Pathfinding/Breakpoint Detection mode locates open conductor positions. Upgradeable via USB to the latest V5.0 system which supports the P181 wire finder.

Component Activation with Circuit Breaker Protection & 0-5V Power Supply Activate vehicle components with activation signal generation for lights, motors, and more. Built-in circuit breaker with adjustable trip current for safe operation. 0-5V adjustable power supply for safe testing of ECU and sensor signals. Current measurement: 0-18A maximum continuous current. Dual probes included standard probe and alligator clips for versatile testing.

P-N Polarity Test & Complete Package P-N (Positive & Negative) polarity testing for quick circuit identification. Working Temperature: 0-60C (32-140F). Storage Temperature: -40-70C (-40-185F). Package includes: P200 Host Unit, Alligator Clip Battery Test Line, Extension Cable, Terminal Test Line, Copper Test Probe, User Instruction Manual, Robust Tool Box/Carrying Case (7 items).

Full Product Description:

Item No: P200

P200 Smart Hook Powerful Vehicle Electrical System Circuit Tester

2.4-inch TFT color display, 12V/24V support, dual probes, circuit breaker protection, adjustable 0-5V power supply, and online upgradeability (V5.0).

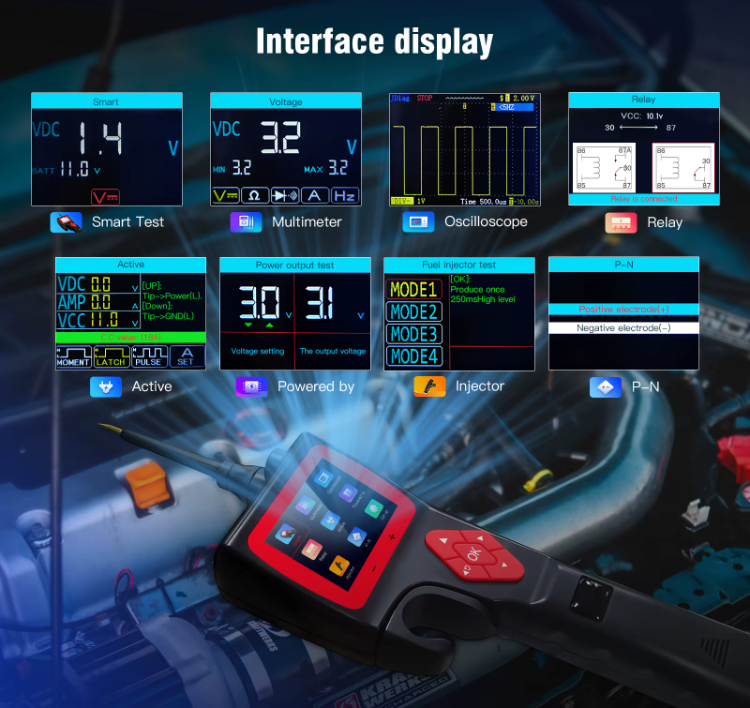

Working Modes

Smart Test Automatic identification of voltage and resistance

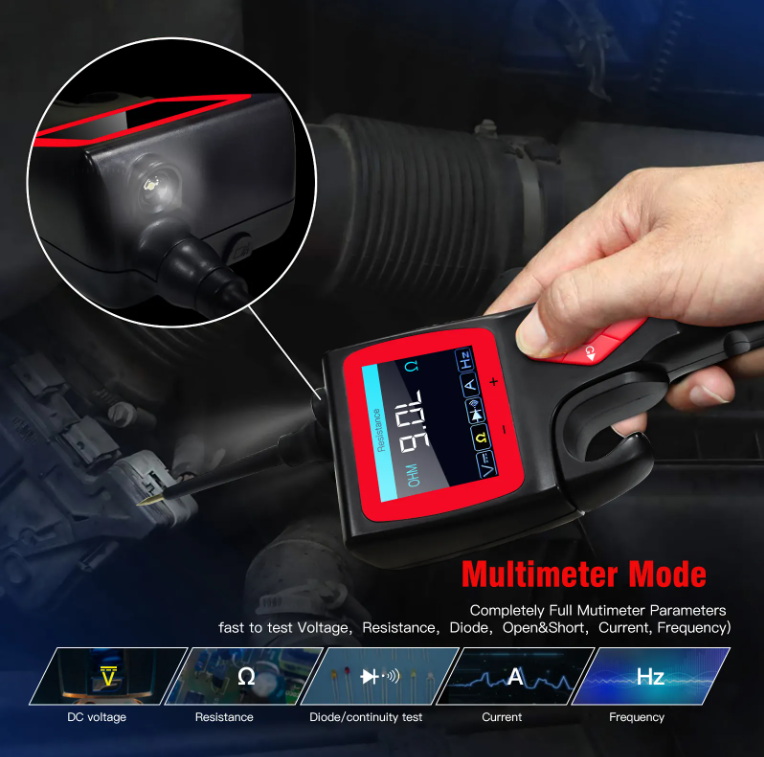

Multimeter Mode DC Voltage, Resistance, Diode/Continuity, Current (Ampere), Frequency

Oscilloscope Mode Visual waveform testing

Relay Test Supports 5-terminal and 4-terminal automotive relays

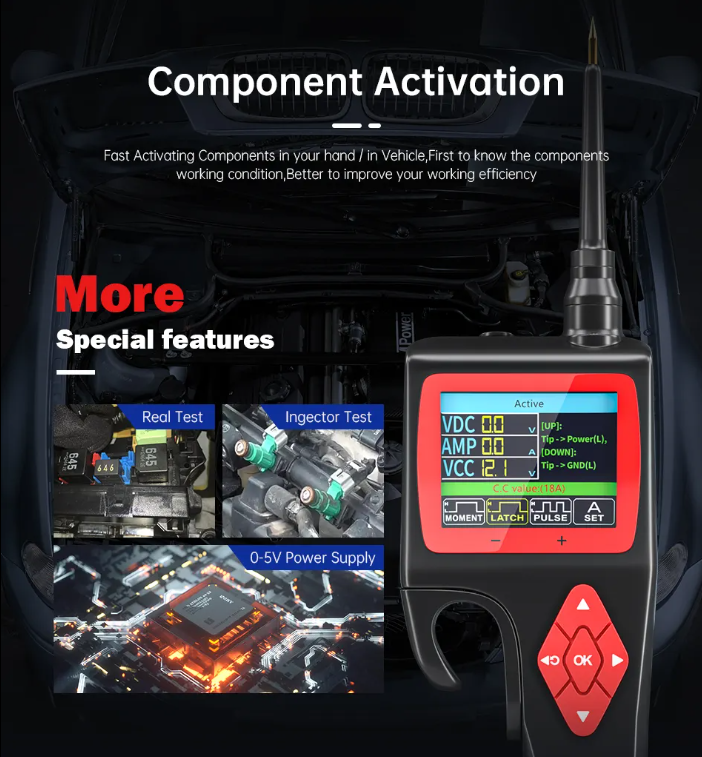

Component Activation (Active) Generates activation signals for lights, motors, etc.

Injector Test Testing of fuel injectors (supports 4 pulse modes)

P-N (Positive & Negative Test) Polarity testing

Set Up Language selection, sound, and system settings

Battery Diagnostics

Charging Test Tests the battery charging system

Startup (Cranking) Test Tests battery cranking performance

Load Test Tests battery under load conditions

Fault Location (C-Tracer)

Specialized Pathfinding / Breakpoint detection

Locates open conductor positions

Compatible with P181 wire finder via V5.0 update

Key Features

Display 2.4 inch (320*240 DPI) TFT true color display

Dual Probes Standard probe and alligator clips for versatile testing

Circuit Protection Built-in circuit breaker with adjustable trip current

0-5V Adjustable Power Supply Safe testing of ECU and sensor signals

Upgradeable USB update to latest V5.0 system

Technical Specifications

Working Temperature 0-60C (32-140F)

Storage Temperature -40-70C (-40-185F)

Power Supply 12V or 24V (powered by vehicle battery)

Working Voltage 9V-30V

Measuring Voltage 0.1V-150V

Resistance Measurement 1-200K

Current Measurement 0-18A (Maximum continuous current: 18A)

Component Diagram

Test Probe Front LED light

LCD Screen Red/Green polarity indicators

Operation Buttons

Auxiliary Ground Lead

Speaker

USB Port (for updates)

Main Line & Connector

Alligator Clips

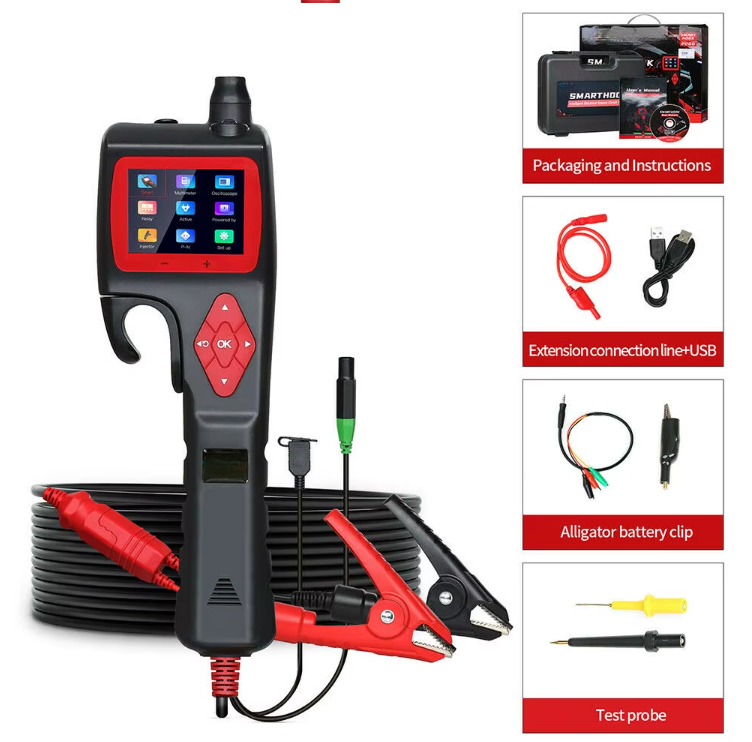

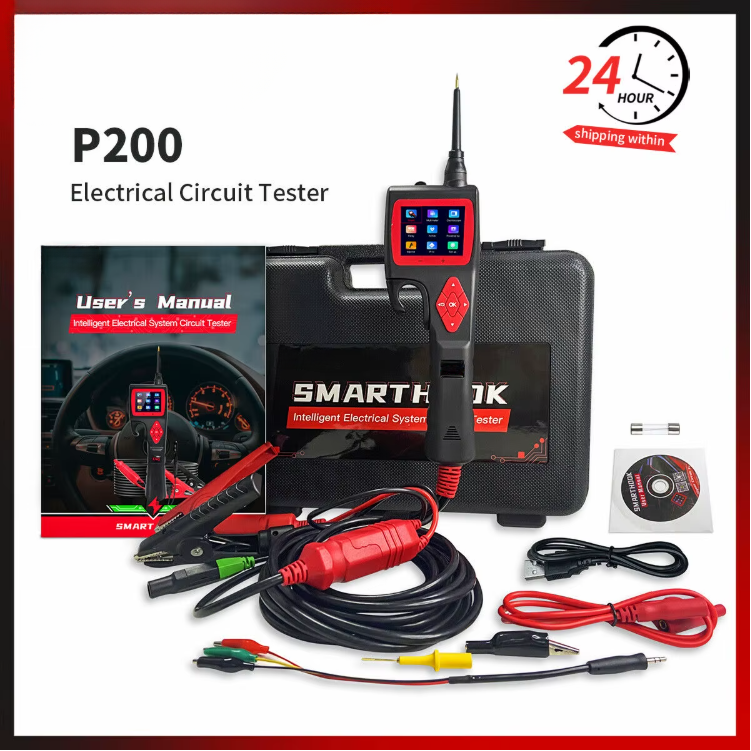

Package Contents (7 Items)

1 x P200 Host Unit

1 x Alligator Clip Battery Test Line

1 x Extension Cable

1 x Terminal Test Line

1 x Copper Test Probe

1 x User Instruction Manual

1 x Robust Tool Box (Carrying Case)
