P150 Circuit Tester 12V 24V Car Electrical Diagnostic Tool DC AC Voltage Resistance Diode
8123.0 INR/Piece
Product Details:
- Lubrication Type Non-Lubricated
- Size Medium
- Noise Level Silent
- Product Type Circuit Tester
- Corrosion Resistant Yes
- Working Life Over 50,000 Cycles
- Dimension (L*W*H) 185 x 50 x 30 mm
- Click to View more
X
P150 Circuit Tester 12V 24V Car Electrical Diagnostic Tool DC AC Voltage Resistance Diode Price And Quantity
- 1 Piece
- 8123.0 INR/Piece
P150 Circuit Tester 12V 24V Car Electrical Diagnostic Tool DC AC Voltage Resistance Diode Product Specifications
- Over 50,000 Cycles
- Approx 200g
- Digital Testing
- 185 x 50 x 30 mm
- -20C to 60C
- P150
- Wire with Alligator Clip
- ABS Plastic, Electronic Components
- Manual
- Automotive Electrical Diagnostics
- Matte
- LCD Digital Display
- Non-Lubricated
- Silent
- Matte Finish
- Medium
- 12V/24V Vehicles (Car, Truck, SUV, Trailer)
- Diagnostic Tool
- Black & Green
- Yes
- Circuit Tester
- Volt/Ohm
- Up to 200 k
- Voltage, Resistance, Continuity, Diode, Polarity
- Direct from Test Source
- Supported
- DC 6V-24V, AC 12V-24V
- Approx 80 cm
- Yes
- Included
- Over-voltage, Over-current
Product Description

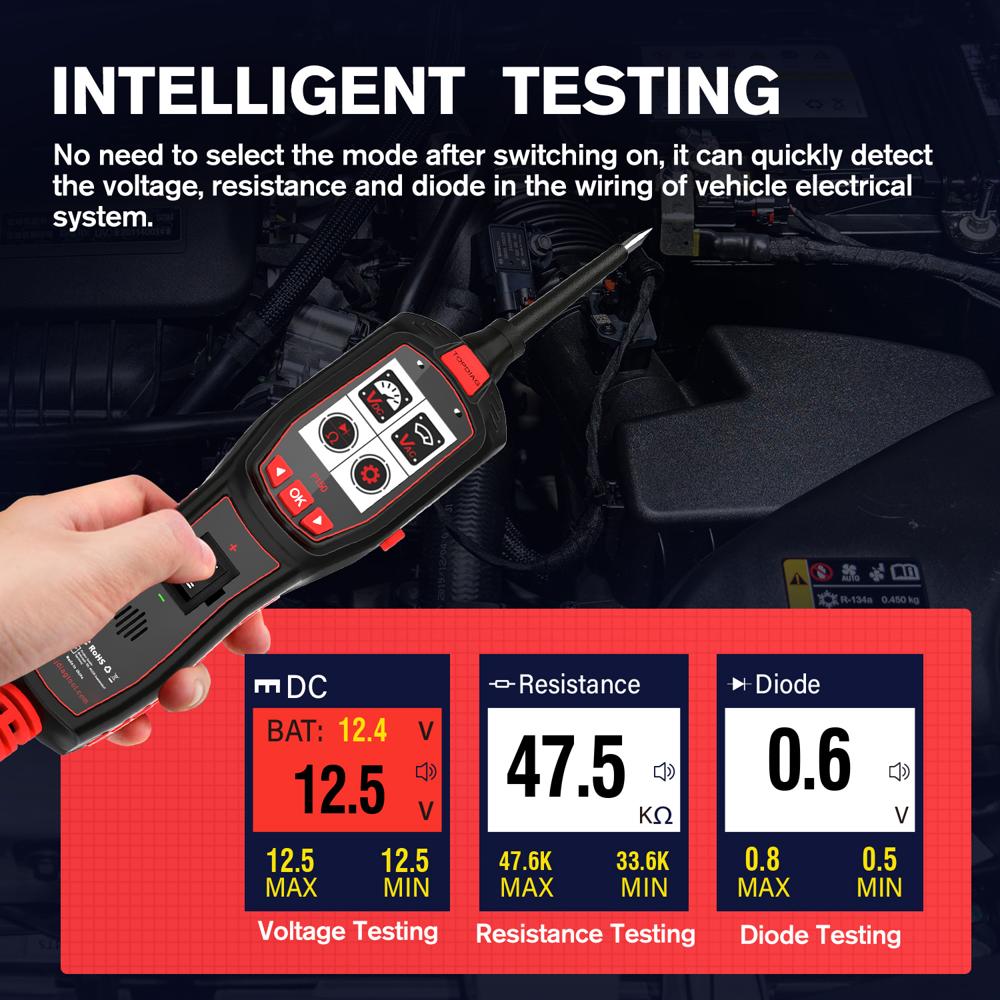

6 Working Modes DC/AC Voltage, Resistance, Diode, Sound & Language The P150 Circuit Tester features 6 comprehensive working modes: DC Voltage measurement, AC Voltage with frequency and duty cycle display, Resistance testing for circuit continuity and component resistance, Diode testing for checking diode functionality, Sound Setting to toggle audible beep, and Language Setting for selecting preferred operating language.

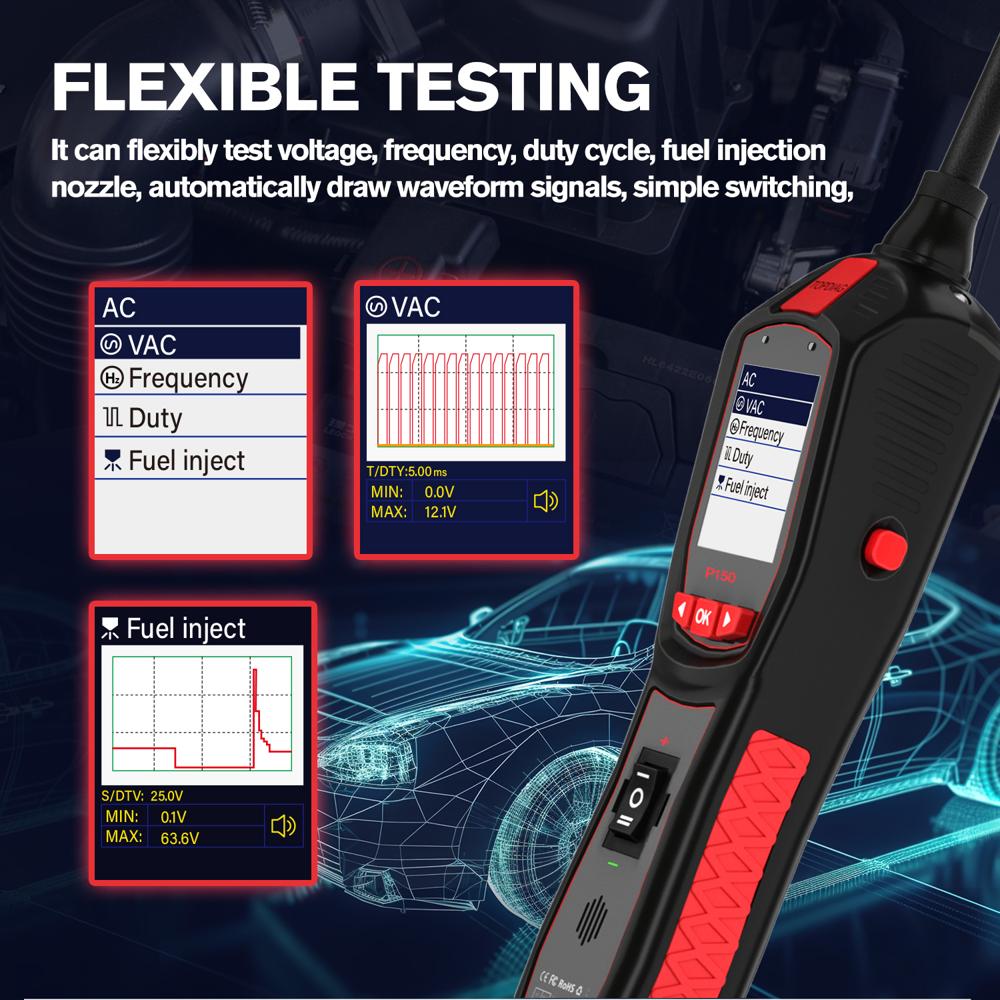

2.4-inch TFT Color Display with 320x240 DPI Resolution High-resolution 2.4-inch TFT true color display (320*240 DPI) provides clear data visualization and waveform display. Compatible with all 12V and 24V vehicle electrical systems including cars, pickups, SUVs, motorcycles, excavators, and steamships.

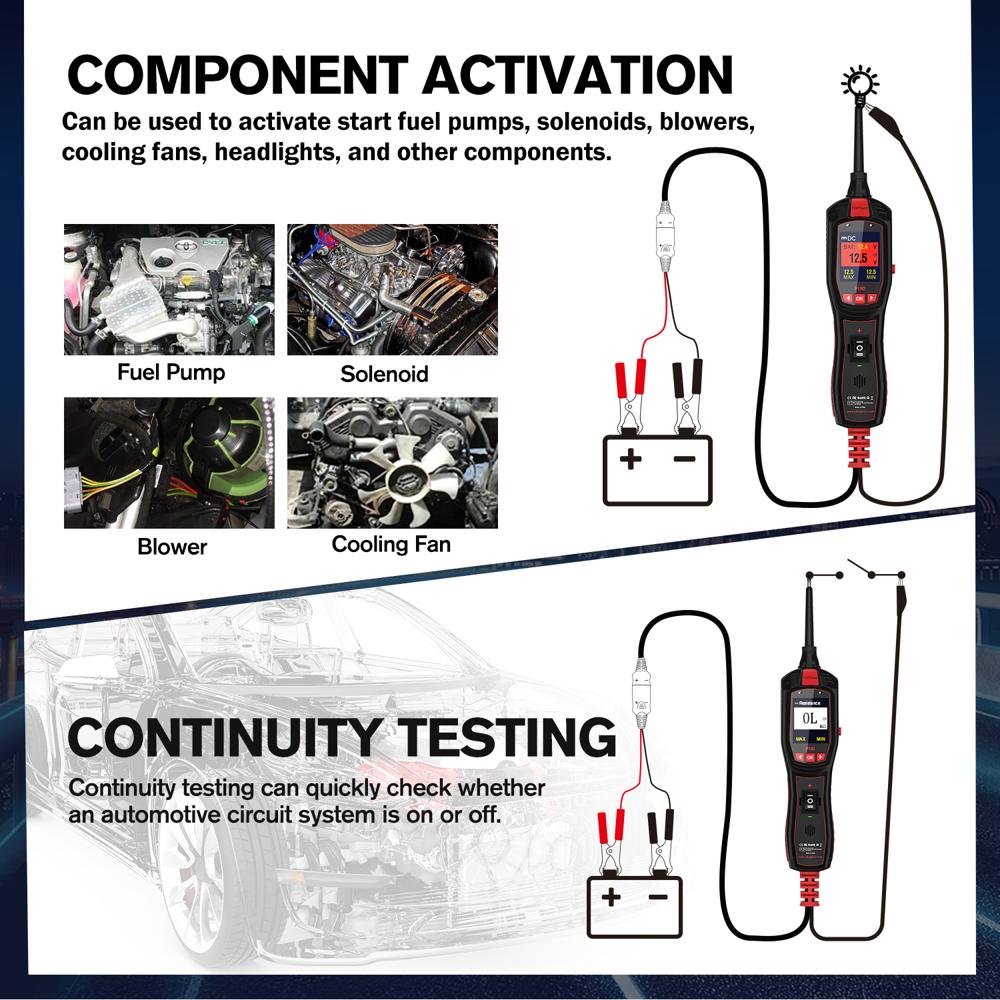

Component Activation, Trailer Lights & Grounding Test Activate and test components such as fuel pumps, solenoids, blowers, cooling fans, and headlights both in-hand and while installed in the vehicle. Quick trailer lighting circuit check. Identify poor ground contacts instantly with grounding test. Fast identification of positive and negative circuits with polarity and continuity checks.

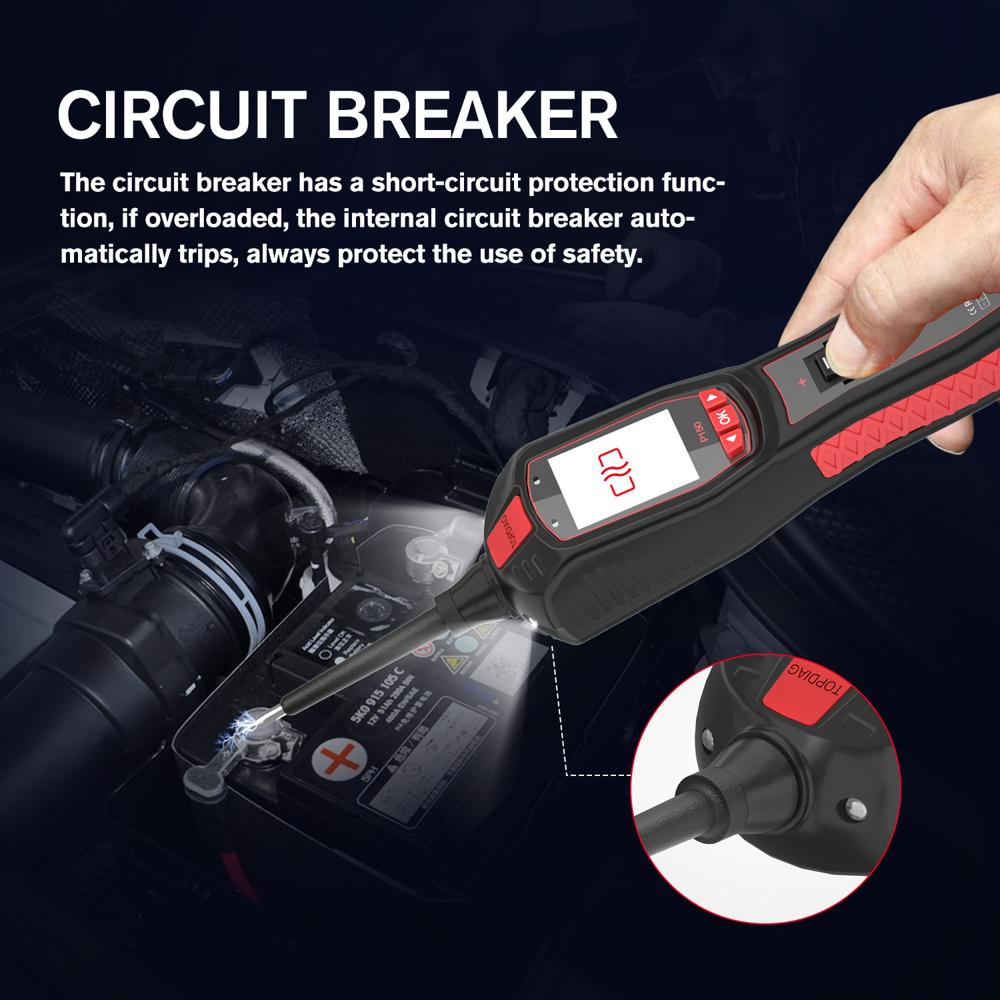

Overload Protection & Dual Power Supply Modes Built-in resettable fuse that automatically disconnects when current exceeds 10A, protecting the tool and vehicle components. Can be powered via the vehicle's battery clips or the cigarette lighter adapter. 20ft (6m) extension cable provides ample reach for testing throughout the entire vehicle.

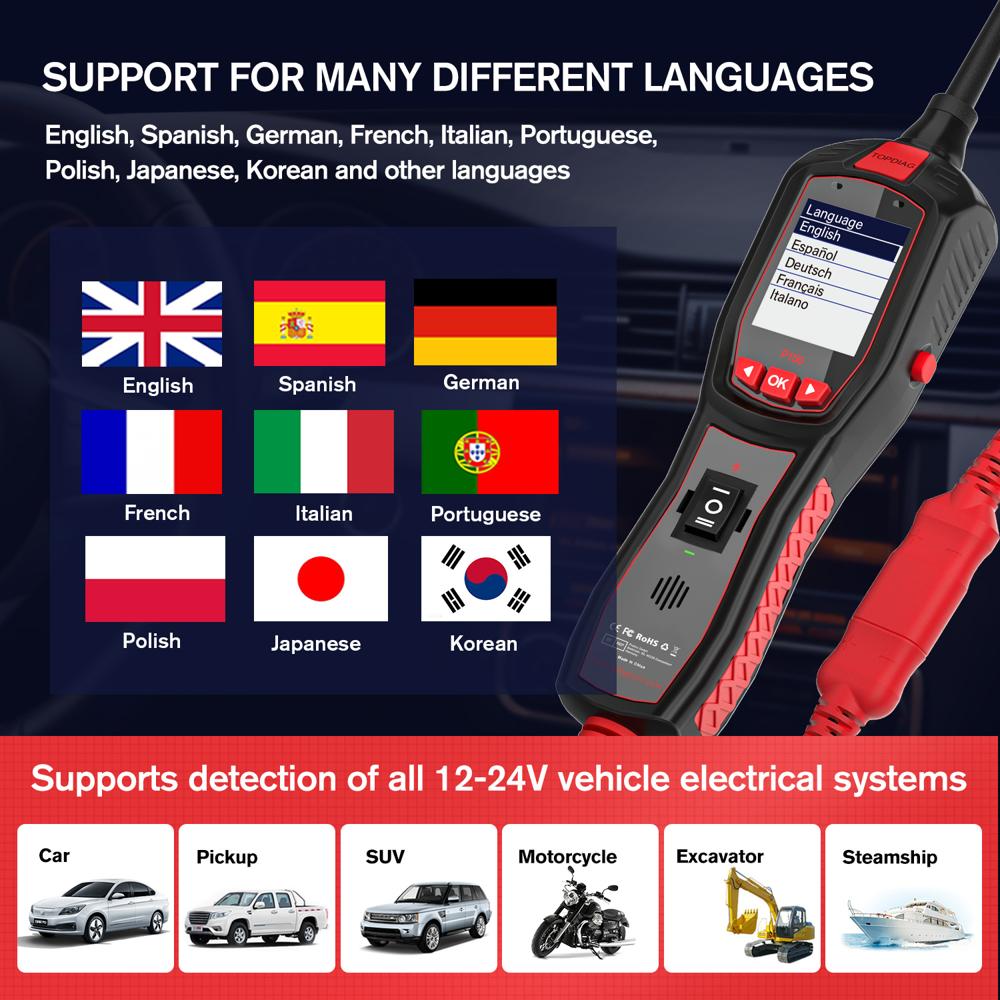

Built-in LED Flashlight & Complete Package Integrated large-area LED flashlight allows for convenient testing in dark or low-light environments. Working Temperature: 0-60C (32-140F). Storage Temperature: -40-70C (-40-185F). External Power: 12.0 or 24.0V via vehicle battery. Supported Languages: English, German, French, Spanish, Italian, Russian, Portuguese. Package includes: P150 Main Unit, Copper Test Probe, 20ft (6m) Extension Cable, Battery Connection Clips, Cigarette Lighter Adapter, User Manual, Durable Tool Case (7 items).
Full Product Description:
Item No: P150

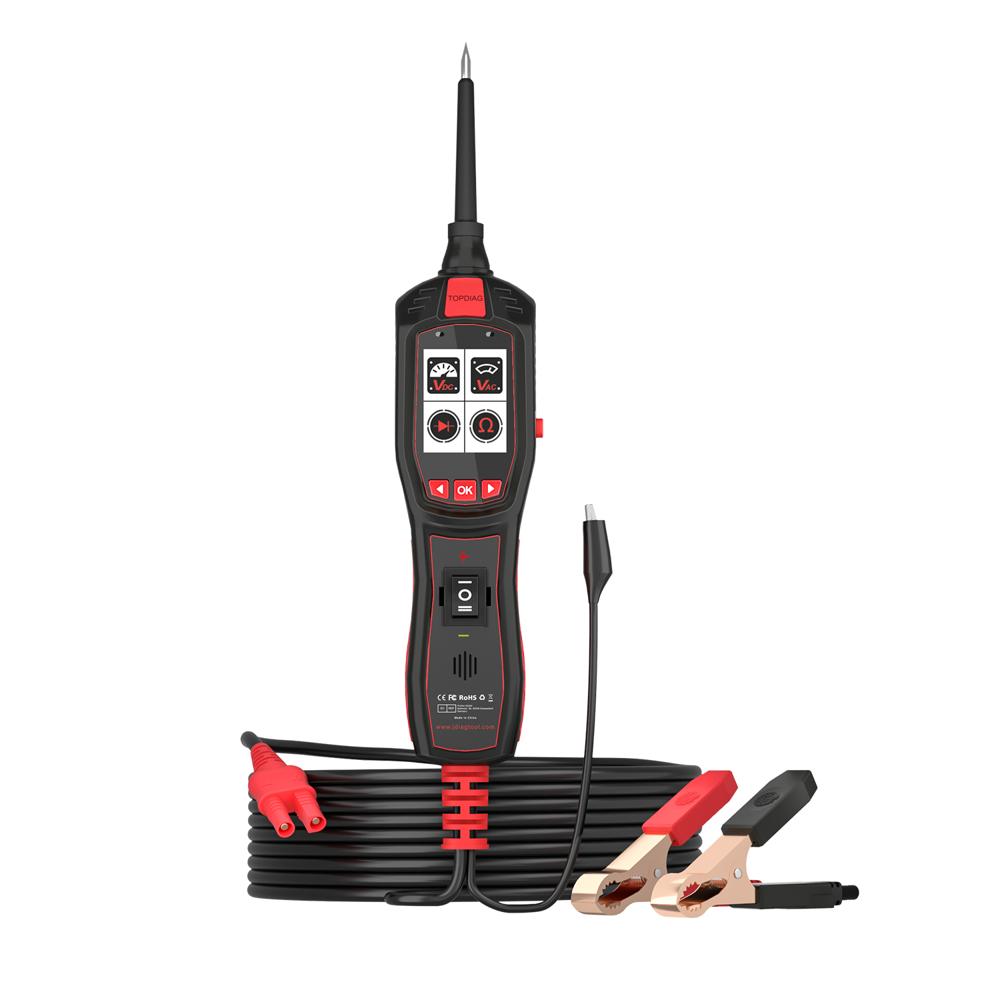

P150 Vehicle Electrical System Circuit Tester
Automotive Electrical System Diagnostic Tool with 2.4-inch TFT Color Display, 12V-24V Support, Overload Protection and Built-in LED Flashlight.
6 Working Modes
DC Voltage For measuring DC voltage in the circuit
AC Voltage For measuring AC voltage, frequency, and duty cycle
Resistance For testing circuit continuity and component resistance
Diode For testing diode functionality
Sound Setting Toggle the audible beep for various tests
Language Setting Select the preferred operating language
Core Functions What Can P150 Do
Component Activation Test fuel pumps, solenoids, blowers, cooling fans, headlights both in-hand or while installed
Trailer Lights Test Quick check for trailer lighting circuits
Grounding Test Identify poor ground contacts instantly
Polarity & Continuity Checks Fast identification of positive and negative circuits and continuity
Key Features
2.4-inch TFT Color Display High-resolution (320*240 DPI) screen for clear data visualization
12V-24V Support Compatible with all 12V and 24V vehicle electrical systems
Overload Protection Resettable fuse automatically disconnects when current exceeds 10A
Built-in LED Flashlight Large-area LED light for testing in dark environments
Dual Power Supply Powered via vehicle battery clips or cigarette lighter adapter
20ft (6m) Extension Cable Ample reach for testing throughout the entire vehicle
Ergonomic Design Compact and easy-to-handle
Technical Specifications
Display 2.4 inch (320*240 DPI) TFT color display
Working Temperature 0-60C (32-140F)
Storage Temperature -40-70C (-40-185F)
External Power 12.0 or 24.0V power provided via vehicle battery
Supported Languages English, German, French, Spanish, Italian, Russian, Portuguese
Component Diagram
Probe Tip (Pro Head)
LED Headlight
Power Switch
LCD Screen
Menu/Switch Button
Extension Cord Connection
Resettable Fuse
Cigarette Lighter Cord
Battery Clip
Cigarette Lighter Adapter
Package Contents (7 Items)
1 x P150 Main Unit
1 x Copper Test Probe
1 x 20ft (6m) Extension Cable
1 x Battery Connection Clips
1 x Cigarette Lighter Adapter
1 x User Manual
1 x Durable Tool Case
Multi-Function Testing Capabilities
The P150 Circuit Tester combines several diagnostic functions into one unit, allowing you to measure voltage, resistance, diode functionality, and circuit continuity. Ideal for automotive electrical work, this tool streamlines troubleshooting and repair processes, ensuring efficiency and accuracy.
User-Friendly Design & Display
Featuring a backlit LCD digital display with volt and ohm units, the tester is easy to read in various lighting conditions. Its 80 cm probe and included alligator test lead offer flexibility and convenience when accessing different automotive electrical components.
Robust and Safe for All Automotive Applications
Made from durable ABS plastic and resistant to corrosion, the P150 is built for longevity. Over-voltage and over-current protection features ensure safe operation, while a silent, non-lubricated design and temperature tolerance from -20C to 60C make it dependable in all environments.
FAQ's of P150 Circuit Tester 12V 24V Car Electrical Diagnostic Tool DC AC Voltage Resistance Diode:
Q: How do I use the P150 Circuit Tester to check voltage and continuity in a car circuit?
A: To check voltage, connect the alligator clip to a ground point and touch the probe to the circuit you want to test - the LCD display will show the voltage. For continuity, switch to the continuity mode and touch both ends of the wire with the probe and clip; a beep or display indication confirms circuit integrity.Q: What electrical parameters can the P150 Tester measure and display?
A: The P150 Circuit Tester measures DC voltage (6V-24V), AC voltage (12V-24V), resistance up to 200 k, and diode polarity. It also checks continuity, making it suitable for a broad range of automotive diagnostic tasks.Q: When should I use the diode test function on this tool?
A: Use the diode test function when you need to verify the proper operation or polarity of diodes within automotive circuits. This can help prevent incorrect installations and faulty circuit behavior.Q: Where is the P150 Circuit Tester most commonly used?
A: The P150 is primarily used in automotive electrical diagnostics. It is suitable for cars, trucks, SUVs, and trailers with 12V or 24V electrical systems, in auto repair shops, service centers, and by DIY enthusiasts.Q: What safety protections does the P150 Tester offer during use?
A: The P150 features integrated over-voltage and over-current protection, ensuring that both the tool and the vehicle's electrical system are safeguarded during diagnostics.Q: How does the direct power supply from the test source benefit the user?
A: By drawing power directly from the circuit being tested, the P150 eliminates the need for extra batteries, providing convenience and uninterrupted operation throughout diagnostic tasks.Tell us about your requirement
