EV001 3-in-1 NEV Insulation Tester Internal Resistance Voltage Resistance HD Color Screen

EV001 3-in-1 NEV Insulation Tester Internal Resistance Voltage Resistance HD Color Screen

Name: EV001 3-in-1 NEV Insulation Tester Internal Resistance Voltage Resistance HD Color Screen
Brand: ZHONG SHAN YUE SHUN ECOMMERCE CO.LTD
Price: 13224.0 INR
Availability: InStock

13224.0 INR/Piece

Get a Price/Quote

Product Details:

Temperature Range 0C to 40C
Size Standard
Finish Smooth
Connecting Type 4-Wire Test Probes
Operating System Manual
Corrosion Resistant Yes
Method Digital Measurement
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

EV001 3-in-1 NEV Insulation Tester Internal Resistance Voltage Resistance HD Color Screen Price And Quantity

Price 13224.0 INR/Piece
Minimum Order Quantity 1 Piece

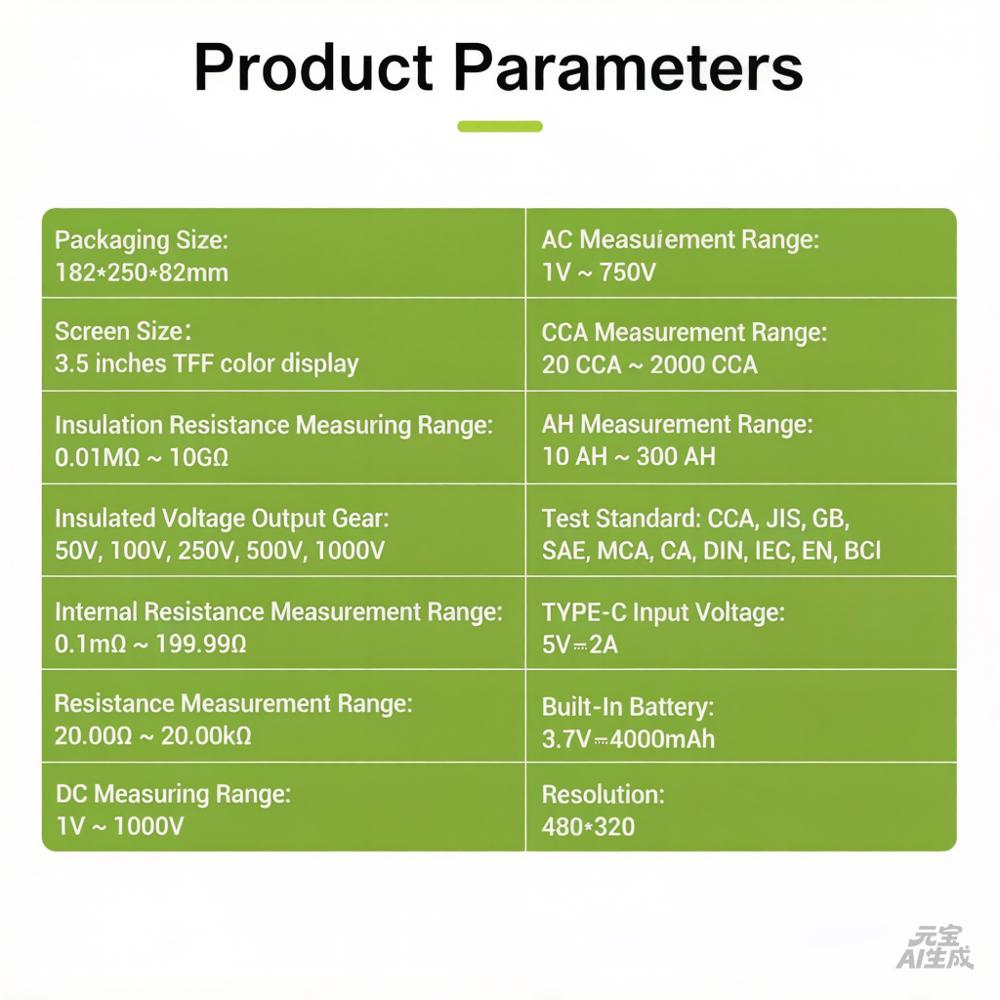

EV001 3-in-1 NEV Insulation Tester Internal Resistance Voltage Resistance HD Color Screen Product Specifications

Vehicle Type EV, Hybrid, NEV
Model No EV001
For Use In New Energy Vehicle (NEV) Electrical Systems
Operating System Manual
Product Type 3-in-1 NEV Insulation Tester
Corrosion Resistant Yes
Method Digital Measurement
Connecting Type 4-Wire Test Probes
Weight 185g
Finish Smooth
Surface Treatment Matte Finish
Color Black & Grey
Temperature Range 0C to 40C
Part Type Electrical Test Tool
Display Type HD Color Screen (2.8 inch)
Noise Level Silent
Dimension (L*W*H) 180mm x 90mm x 42mm
Working Life 5 Years
Material ABS + Electronic Components
Size Standard

Power Supply Built-in Rechargeable Lithium Battery (3.7V)
Backlight Function Yes
Application Battery Pack, High-Voltage Wiring, Motor Insulation, Controller Inspection
Auto Power Off Yes
Operating Humidity 80% RH
Voltage Measurement Range 1V to 1000V
Charging Method USB Charging
Overvoltage Protection Yes
Calibration Factory Calibrated
Insulation Test Voltage 100V/250V/500V/1000V selectable
Internal Resistance Range 0.01m to 200
Measurement Functions Insulation Resistance, Internal Resistance, Voltage Measurement
Insulation Resistance Range 0.01M to 1000M
Data Storage Up to 100 groups

Product Description

Specialized NEV Tool Crafted for New Energy Vehicles, testing battery internal resistance, motors, and high-voltage electrical equipment.

Insulation Test Mastery Features 5 adjustable test voltage gears (50V, 100V, 250V, 500V, 1000V) for precise insulation status verification.

High-Definition HD Screen Displays measurements, graphs, and settings on a Large 3.2-inch HD color screen for maximum legibility.

3-in-1 Measurement Suite Combines Insulation Testing (IT), Internal Resistance Testing (IRT), and standard Voltage/Resistance measurements.

Rich Data Storage Supports storage of up to 100 groups of test data with dual power supply options for versatile use in the field or shop.

Full Product Description:

Item No: EV001

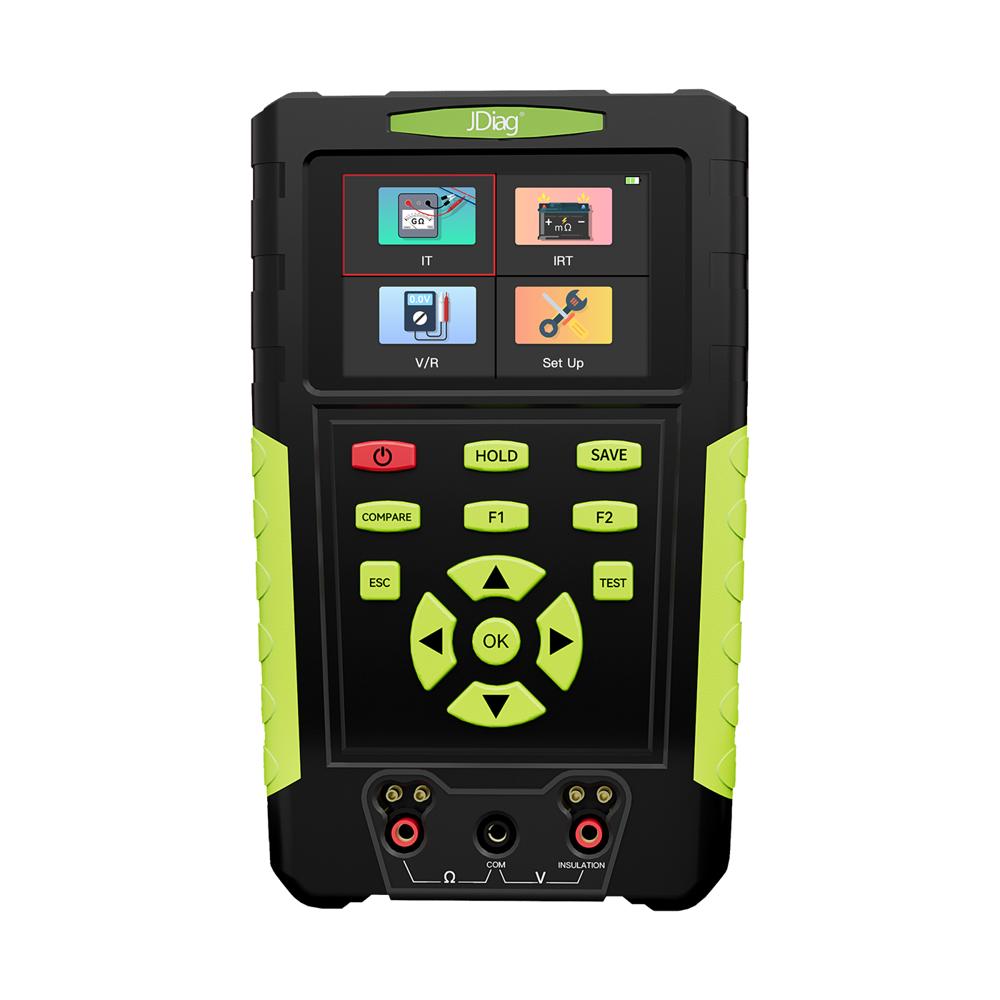

EV001 3-in-1 Professional Insulation & Internal Resistance Tester

The EV001 is a specialized diagnostic solution designed to meet the unique safety and performance testing requirements of New Energy Vehicles. Its combination of high-voltage insulation testing and precision resistance measurement makes it vital for EV battery and motor maintenance.

3-in-1 Test Capabilities

IT: Professional High-Voltage Insulation Testing

IRT: Precision Battery Internal Resistance Testing

V/R: Standard DC/AC Voltage and Resistance measurement

Insulation Testing Gears

Adjustable Voltages: 50V, 100V, 250V, 500V, 1000V

Safety: Automatic high-voltage discharge after test

Speed: Rapid measurement response

Advanced Features

Screen: 3.2-inch HD large color display

Memory: Stores 100 groups of measurement data

Power: Dual-mode (Battery or DC adapter)

Protection: Overload protection and low voltage signal warning

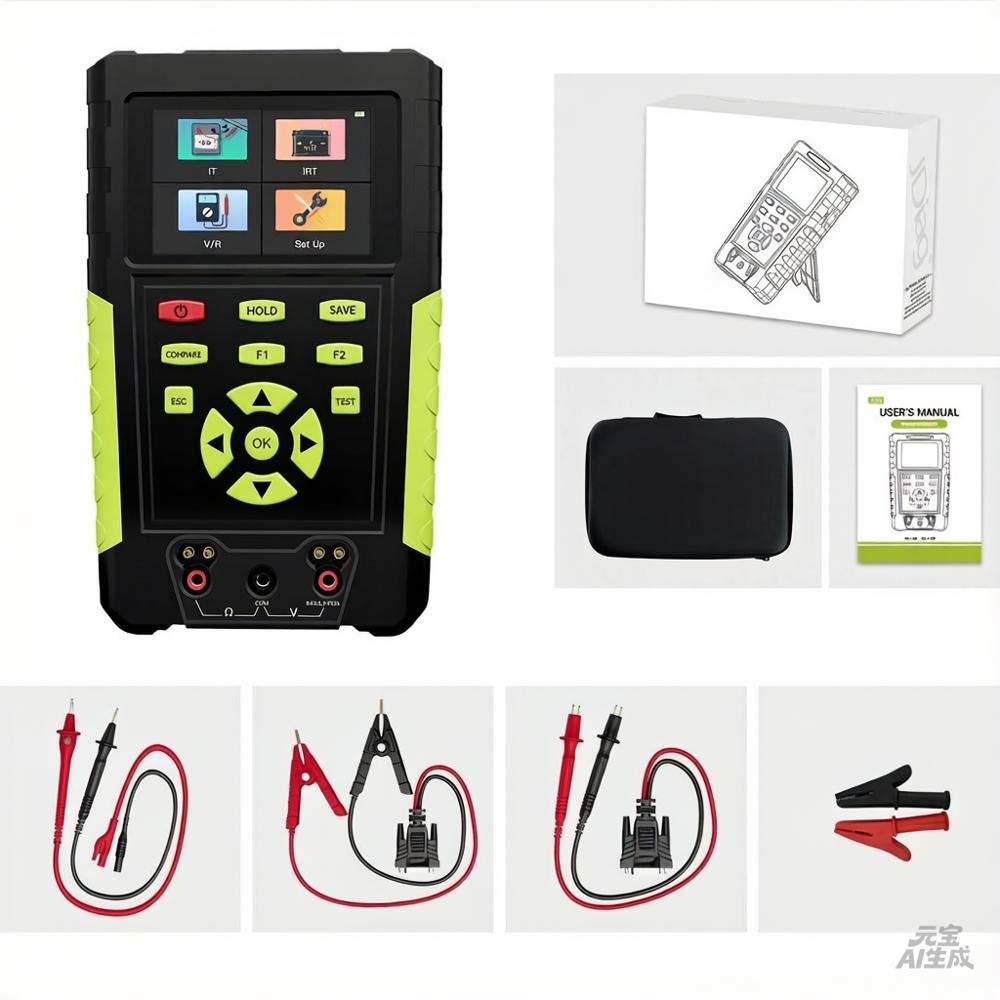

Package Contents

1 x EV001 Specialist Tester

2 Test Leads (Red/Black)

2 Large Alligator Clips

1 x USB Connection Cable

1 x Dedicated Protective Carrying Case

1 x User Manual

Versatile 3-in-1 Testing Capability

The EV001 Insulation Tester integrates insulation resistance, internal resistance, and voltage measurement in one compact tool. This multi-functionality is ideal for battery packs, motor insulation, and controller inspection within new energy vehicles. The selectable test voltages and wide measurement ranges accommodate varied testing situations, supporting both troubleshooting and preventive diagnostics.

User-Friendly Features for Efficient Operation

Equipped with an HD color screen, intuitive manual operation, and a responsive backlight, the EV001 is designed for clarity and ease of use, even in low-light environments. The built-in rechargeable lithium battery and USB charging make it both eco-friendly and convenient for fieldwork or workshop use. Automatic power-off and overvoltage protection help preserve battery life and enhance safety.

Reliable Performance and Rugged Design

Manufactured with a smooth matte-finish ABS body and electronic components, this tester offers excellent corrosion resistance and durability. It maintains performance under humid conditions (up to 80% RH) and within a silent noise profile, ensuring dependable testing in professional settings. The device's factory calibration guarantees measurement accuracy, while data storage facilitates record-keeping and analysis.

FAQ's of EV001 3-in-1 NEV Insulation Tester Internal Resistance Voltage Resistance HD Color Screen:

Q: How do I select the desired insulation test voltage on the EV001 Tester?

A: To select the insulation test voltage, simply use the function selection controls to choose between 100V, 250V, 500V, or 1000V, depending on your testing requirements for different components or systems.

Q: What types of electrical systems can the EV001 be used on?

A: The EV001 is suitable for a variety of new energy vehicle (EV, hybrid, NEV) electrical systems, including battery packs, high-voltage wiring, motor insulation, and controller inspection tasks.

Q: When should I use the internal resistance measurement function?

A: Use the internal resistance measurement function to evaluate battery health, check for cell degradation, or troubleshoot wiring and connection issues within NEV electrical circuits.

Q: Where can I store the measurement data, and how much can the EV001 hold?

A: The EV001 Tester stores measurement results internally, with a capacity to save up to 100 groups of data for your review and analysis.

Q: What is the process for recharging the device?

A: Recharge the built-in lithium battery using the included USB charging cable. Simply connect the device to a compatible USB power source until fully charged.

Q: How does the EV001 benefit professional technicians or service providers?

A: The EV001 offers efficient, accurate measurements with multi-function capability, reducing the need for multiple tools. Its portability, factory calibration, and ease of use streamline diagnostic work, saving both time and effort during inspections and maintenance tasks.
