P50PRO Mini Oscilloscope Circuit Tester LED Test Light DC AC Voltage Resistance Diode
3117.0 INR/Piece
Product Details:
- For Use In Automotive, Electrical Testing, Circuit Diagnosis
- Model No P50PRO
- Display Type LED Digital Display
- Vehicle Type Universal
- Working Life Over 50,000 Uses
- Load Capacity 15A Max
- Method Digital Measurement
- Click to View more
X
P50PRO Mini Oscilloscope Circuit Tester LED Test Light DC AC Voltage Resistance Diode Price And Quantity
- 1 Piece
- 3117.0 INR/Piece
P50PRO Mini Oscilloscope Circuit Tester LED Test Light DC AC Voltage Resistance Diode Product Specifications
- 15A Max
- Digital Measurement
- P50PRO
- ABS Plastic, Electronic Components
- Automotive, Electrical Testing, Circuit Diagnosis
- Black & Yellow
- Manual
- Diagnostic Tool
- Matte
- 160mm x 27mm x 18mm
- LED Digital Display
- Over 50,000 Uses
- 65g
- Universal
- Pocket Size
- Alligator Clip
- -20C to 60C
- Mini Oscilloscope Circuit Tester
- Silent
- Yes
- Smooth
- Built-in Rechargeable Li-ion
- 3V - 60V DC, 12V - 380V AC
- 0.1V
- Yes
- Supported
- Needle Sharp Probe
- Buzzer & LED Warning
- LED (High Brightness)
- Yes
- IP54
- Instant (<1s)
- Supported
Product Description
Integrated Mini Oscilloscope 10Hz to 200KHz Bandwidth The P50 PRO Circuit Tester features a built-in mini oscilloscope supporting both AC and DC signal modes with a 10Hz-200KHz frequency range. 1.3-inch color screen displays waveforms, voltage readings, and diagnostic data for advanced automotive signal analysis.
AC/DC Voltage Detection with Real-time Max/Min Recording Measures 0.1V-45V with real-time Max/Min voltage recording for comprehensive DC and AC voltage analysis. Additional testing modes include Resistance measurement, Diode testing, and Open/Short Circuit detection. Positive/Negative polarity identification with LED indicators.
Multi-Function Test Lamp 5W Power Test Lamp & LED Test Light Integrated 5W Power Test Lamp for load testing verifies circuit capacity under actual load conditions. Separate LED Test Light for quick visual circuit confirmation. Built-in high-brightness flashlight for working in dark environments.
Rechargeable Built-in Battery 4-5 Hours Battery Life Built-in 3.7V/200mAh rechargeable lithium battery provides 4-5 hours of continuous operation. USB Type-C charging port for convenient recharging. 40mA working current for efficient power usage. Compact design for one-handed operation.
13 Languages & Complete Package Supports 13 languages: English, Spanish, German, French, Italian, Portuguese, Polish, Russian, Vietnamese, Thai, Indonesian, Filipino, Arabic. Package includes: P50 Pro Tester, Ground Clamp, Small Probe, User Manual.
Full Product Description:
Item No: P50PRO

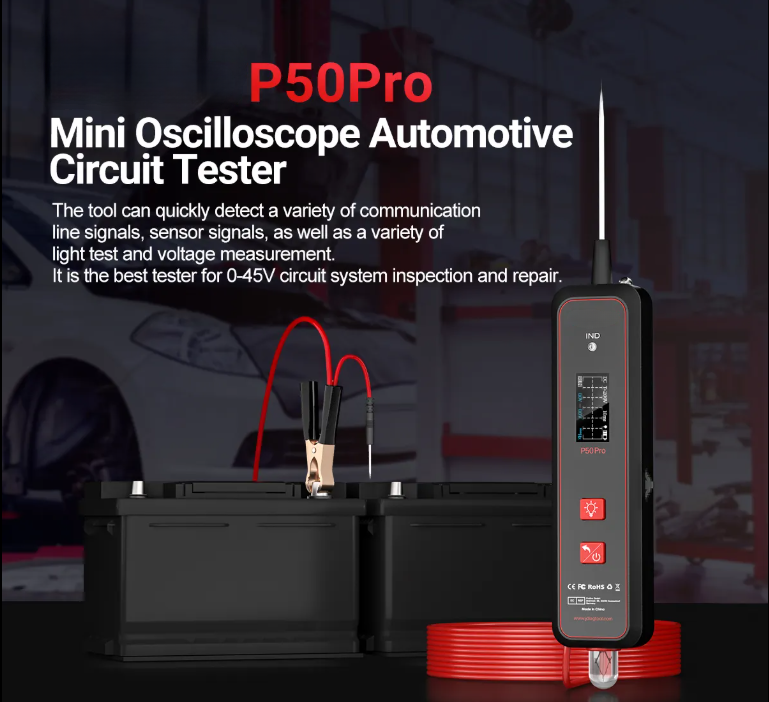

P50 PRO Mini Oscilloscope Automotive Circuit Tester
Advanced Circuit Tester with 1.3-inch Color Screen, Built-in Oscilloscope, Power Test Lamp, LED Test Light, DC/AC Voltage, Resistance, and Diode Testing. Rechargeable lithium battery with 4-5 hours battery life.

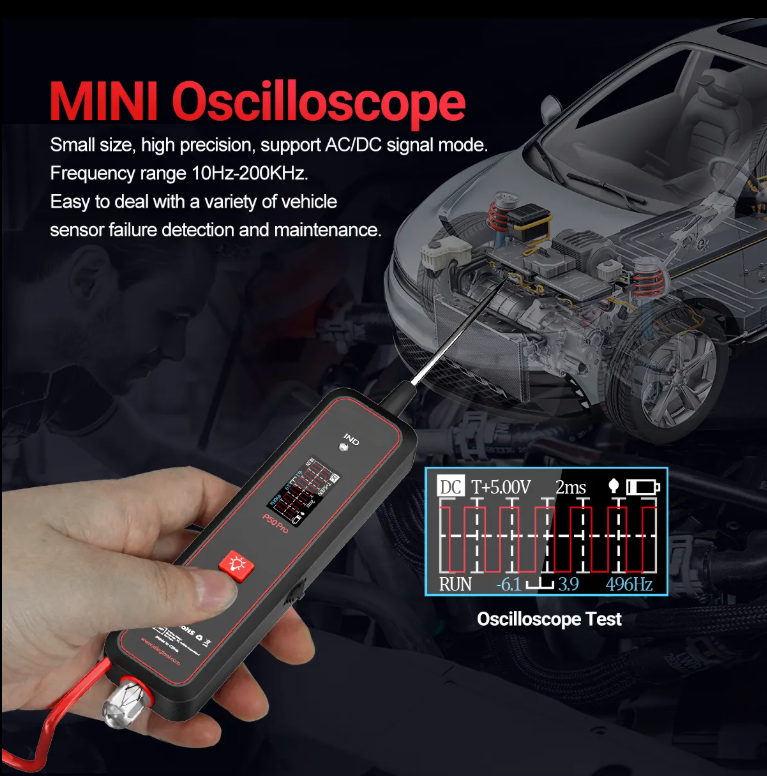

Mini Oscilloscope
Supports AC and DC signal modes
10Hz-200KHz frequency range (bandwidth)
Waveform display on 1.3-inch color screen

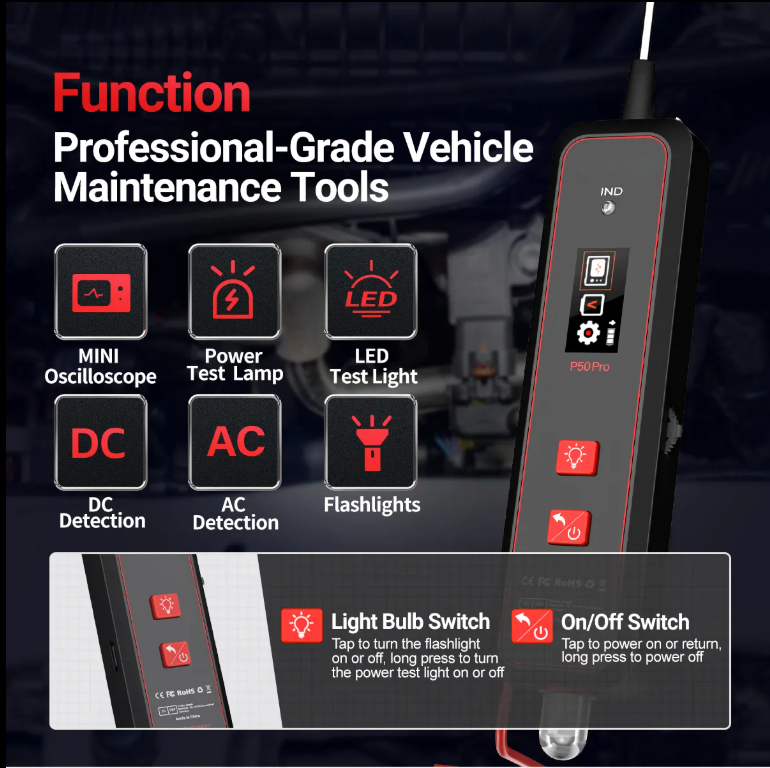

Working Modes
DC Voltage 0.1V-45V with Max/Min recording
AC Voltage AC signal measurement
Resistance Component resistance testing
Diode Diode function verification
Oscilloscope AC/DC signal waveform display
Open/Short Circuit Detection Quick fault finding
Positive/Negative Polarity LED polarity identification

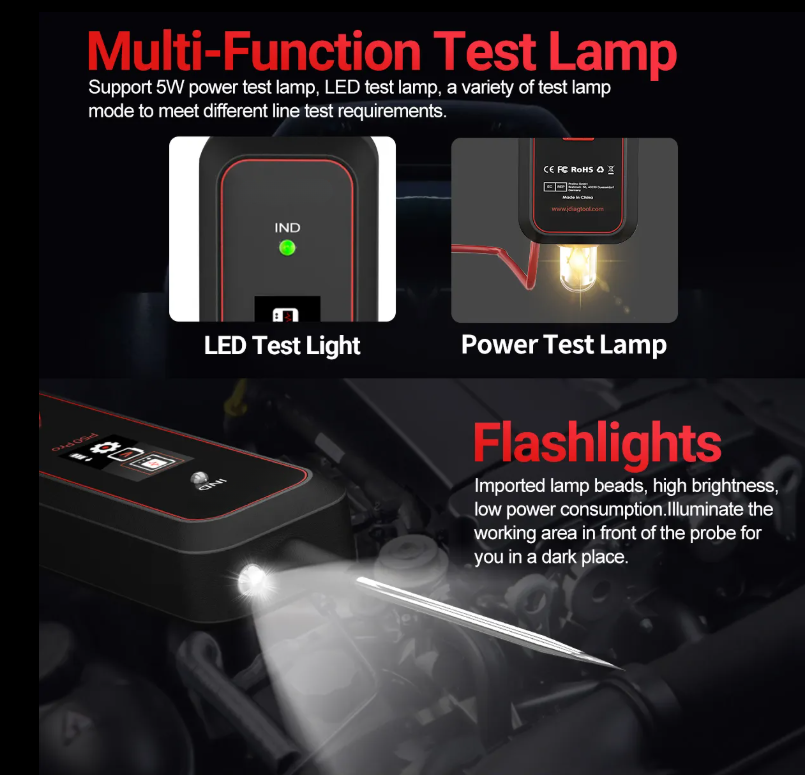

Test Lamp Functions
5W Power Test Lamp Load testing to verify circuit capacity
LED Test Light Quick visual circuit confirmation
Built-in High-Brightness Flashlight For dark environments
Specifications
Display 1.3-inch color screen
Voltage Range 0.1V-45V
Working Current 40mA
Bandwidth 10Hz-200KHz
Test Lamp Power 5W
Battery Built-in 3.7V/200mAh lithium battery
Battery Life 4-5 hours
Charging USB Type-C
13 Languages English, Spanish, German, French, Italian, Portuguese, Polish, Russian, Vietnamese, Thai, Indonesian, Filipino, Arabic
Package Contents
1 x P50 Pro Tester
1 x Ground Clamp
1 x Small Probe
1 x User Manual

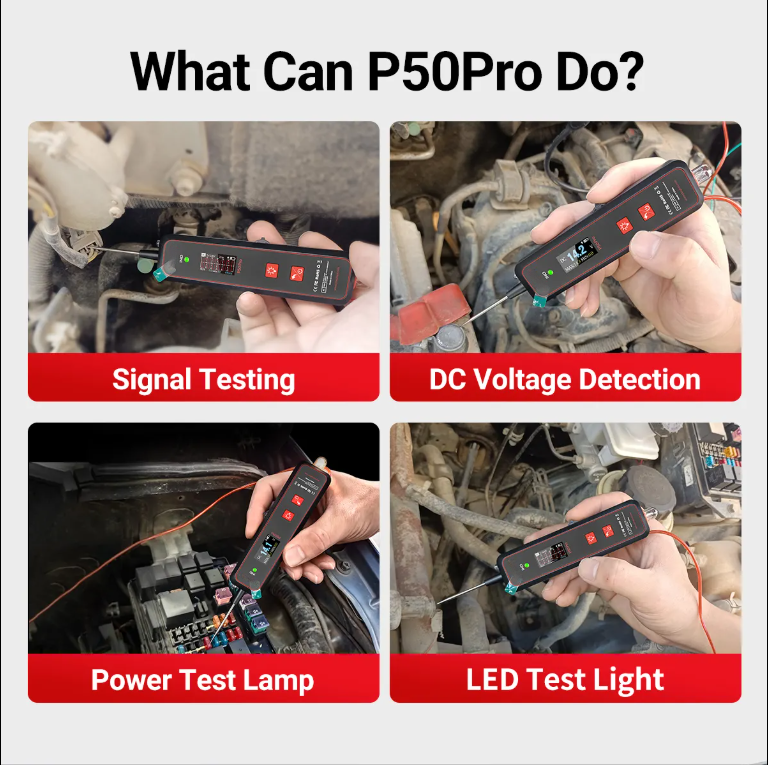

Precise and Efficient Electrical Testing
The P50PRO Mini Oscilloscope Circuit Tester enables quick and accurate fault detection in vehicles and electrical systems. Its instant response ensures you receive test results in less than a second, streamlining diagnostics and improving workflow efficiency. With an LED digital display and sharp needle probe, readings are clearly visible, even in low-light environments. The tool's rugged, matte-finished ABS body and IP54 waterproof rating make it well-suited for rugged workshops or outdoor testing jobs.
Versatile Applications Across Sectors
Whether you are troubleshooting circuit boards, verifying diode integrity, or testing live automotive wiring, the P50PRO adapts to countless scenarios. Its resistance and diode support, combined with alligator clip connectivity, make it a universal asset for technicians, electricians, and vehicle owners alike. This device is engineered for reliability with long-life electronic components and is suitable for use by distributors, service providers, and manufacturers.
FAQ's of P50PRO Mini Oscilloscope Circuit Tester LED Test Light DC AC Voltage Resistance Diode:
Q: How do I use the P50PRO Mini Oscilloscope Circuit Tester for voltage measurements?
A: To measure voltage, connect the alligator clip to a suitable ground point and use the sharp needle probe to contact the test point. The LED digital display will show the measured voltage instantly with a 0.1V resolution. It supports DC voltages from 3V to 60V and AC voltages from 12V to 380V.Q: What types of tests can the P50PRO perform?
A: The P50PRO can measure AC and DC voltage, resistance, and diodes. It also functions as an LED test light, features a data hold function, and provides short circuit alerts with a buzzer and LED warning.Q: When should I use the short circuit alarm feature?
A: The short circuit alarm is automatically activated when the tester detects a short condition during diagnostic procedures. The device emits an audible buzzer and lights an LED warning, helping prevent accidental damage and ensuring safe troubleshooting.Q: Where is the P50PRO best utilized?
A: This tester is ideal for automotive workshops, electrical service centers, manufacturing facilities, and home diagnostics. Its compact, waterproof design allows reliable operation in both indoor and outdoor environments.Q: What benefits does the built-in rechargeable battery provide?
A: The integrated Li-ion battery ensures the tester is always ready for use without the frequent need for replacements. It offers over 50,000 uses per full cycle and enhances portability, making the P50PRO convenient for on-the-go diagnostics.Q: How does the overload protection work?
A: Overload protection safeguards the device and connected circuits against excessive current draw, supporting a maximum load of 15A. The circuit tester will alert you if limits are exceeded, prolonging both tool and circuit life.Q: What makes the P50PRO durable for repeated professional use?
A: Constructed with ABS plastic and high-quality electronic components, the tester is corrosion resistant, waterproof (IP54), and designed for over 50,000 operational cycles. Its matte finish and smooth contour provide both durability and ergonomic convenience.Tell us about your requirement
