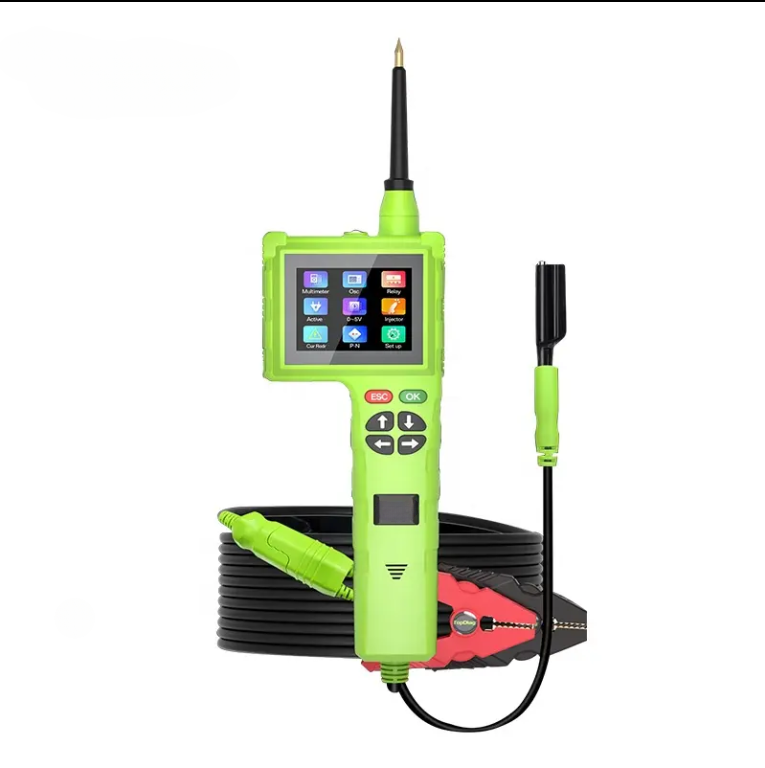

P200PRO Circuit Tester 12V 24V Oscilloscope Relay Injector Battery Leakage C-Tracer
23520.0 INR/Piece
Product Details:
- Material ABS Plastic, Electronic Components
- Part Type Diagnostic Tool
- Finish Matte
- Dimension (L*W*H) 185mm x 32mm x 24mm
- Corrosion Resistant Yes
- Product Type Circuit Tester
- Weight 330g
- Click to View more
X
P200PRO Circuit Tester 12V 24V Oscilloscope Relay Injector Battery Leakage C-Tracer Price And Quantity
- 23520.0 INR/Piece
- 1 Piece
P200PRO Circuit Tester 12V 24V Oscilloscope Relay Injector Battery Leakage C-Tracer Product Specifications
- Oscilloscope, Relay Test, Injector Test, Battery Leakage Detection
- 330g
- 185mm x 32mm x 24mm
- Circuit Tester
- -20C to 60C
- Yes
- Automotive 12V/24V Vehicles, Electrical Circuit Diagnosis
- Matte
- 185mm x 32mm x 24mm
- Diagnostic Tool
- Color TFT LCD Display
- ABS Plastic, Electronic Components
- Clip and Probe
- P200PRO
- Matte Finish
- 50dB
- 0-30A
- Standalone
- 10000 cycles
- Car, Truck, Bus, Motorcycle
- Black
- Relay, Fuel Injector, Continuity, Voltage, Diode, Battery Leakage, Oscilloscope Mode
- Yes
- 160x128 pixels
- Yes
- 2.5MSa/s
- 12V/24V DC
- Yes
- 6 meters
- 70V
- Yes
- 1.77-inch LCD
- English, Chinese
- 20A (test mode)
Product Description
Enhanced Multimeter & Oscilloscope DC/AC Voltage, Resistance, Diode, Frequency The P200 PRO Circuit Tester features an enhanced multimeter with DC Voltage, AC Voltage, Resistance (10 milliohms-10 megohms), Diode, Continuity, Duty Cycle, and Frequency testing. Built-in oscilloscope supports testing of DC voltage, PWM, Crank, and Fan speed signals. Measured Voltage range: 2mV-100V. Maximum Measuring Voltage: 150V.
Relay Test, Injector Test/Cleaning & Battery Diagnostics Dedicated Relay Test mode supports detection of both 4-terminal and 5-terminal relays. Injector Test/Cleaning mode for testing and cleaning fuel injectors. Comprehensive battery diagnostics include Charging Test, Startup Test, and Load Test. Operating voltage: 9V-30V for both 12V cars and 24V trucks.
C-Tracer Fault Location & Leakage Detection with P181 Wire Finder Specialized C-Tracer function for fault location and pathfinding computing to trace wire breakpoints. Leakage Detection capability for identifying circuit leakage issues. Includes the P181 Wire Finder receiver for advanced pathfinding. Free upgrade to the latest V2.2.4 operating system via USB.
Component Activation 25A Continuous, 120A Instantaneous Max Activate vehicle components with Momentary, Latch, and Pulse modes. Component activation current: 0A-25A (Continuous), 50A (7s), 60A (5s), 120A (Instantaneous Max). Dual probes (Black and Yellow) included for versatile testing. Operating Temperature: 0-60C (32-140F). Storage Temperature: -40C-70C (-40-185F). Dimensions: 23.00cm x 7.80cm x 3.00cm.
12 Languages & Complete Professional Package (13 Items) Supports 12 languages: English, Spanish, German, French, Italian, Portuguese, Polish, Russian, Vietnamese, Thailand, Arabic, Japanese. Package includes: P200 PRO Master Unit, Wire Finder Receiver P181, User's Manual, Carrying Case, Probe (Black), Probe (Yellow), Alligator Clip (Black), USB to Type-C Cable, USB to DC Cable, Relay Test Adapter, Extension Cable (Red), Battery Clamp Cable, Type-C Test Cable (13 items total).
Full Product Description:
Item No: P200PRO
P200 PRO Vehicle Electrical System Circuit Tester
Advanced Professional Circuit Tester with Dual Probes, P181 Wire Finder, Oscilloscope, Relay Test, Injector Test/Cleaning, Battery Diagnostics, Leakage Detection, and C-Tracer Fault Location. Free upgrade to V2.2.4 operating system.
Core Functions

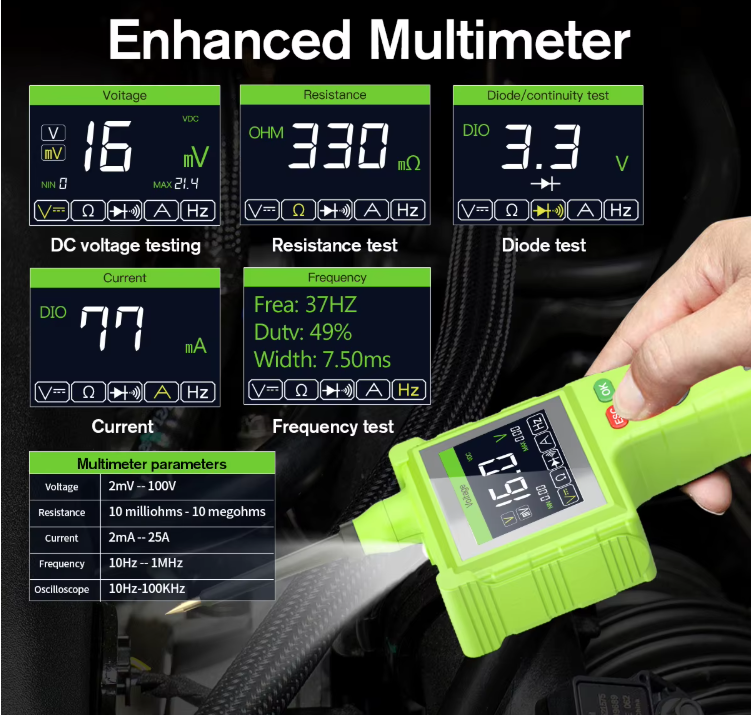

Enhanced Multimeter DC Voltage, AC Voltage, Resistance, Diode, Continuity, Duty Cycle, Frequency

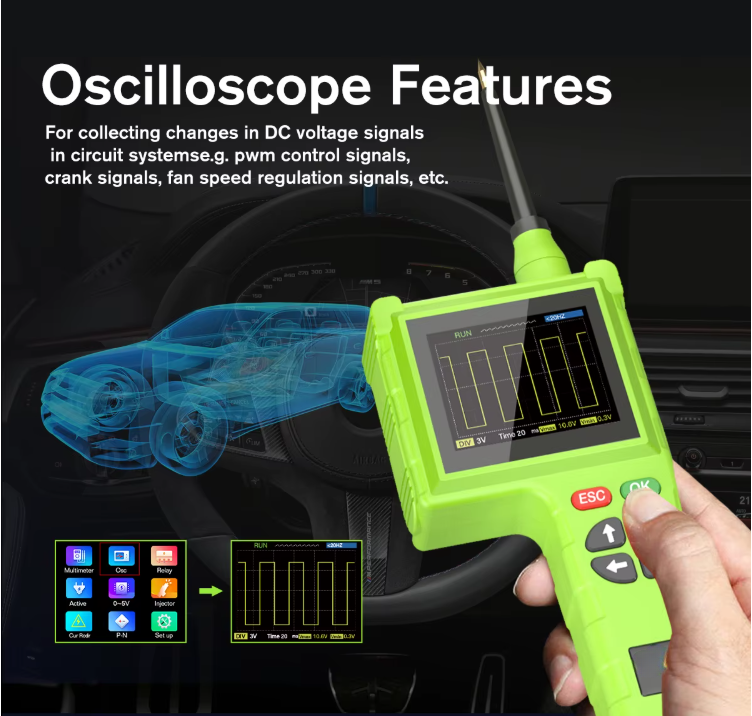

Oscilloscope (Osc) Supports DC voltage, PWM, Crank, and Fan speed signal testing

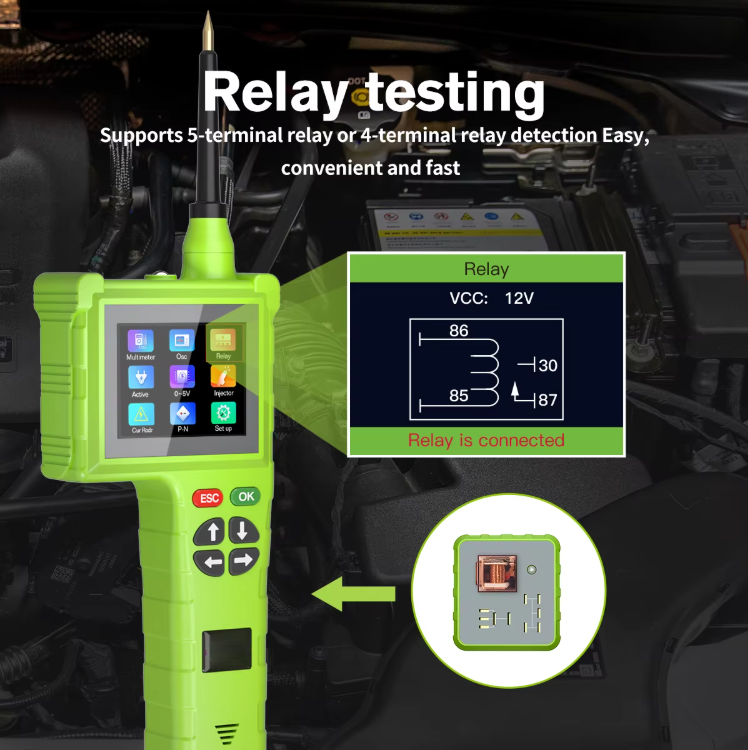

Relay Test Supports 4-terminal and 5-terminal relay detection
Injector Test/Cleaning Dedicated mode for testing and cleaning fuel injectors
Battery Diagnostics Charging, Startup, and Load tests
Leakage Detection Detects circuit leakage issues
C-Tracer Fault location and pathfinding computing
P181 Wire Finder Included receiver for advanced pathfinding

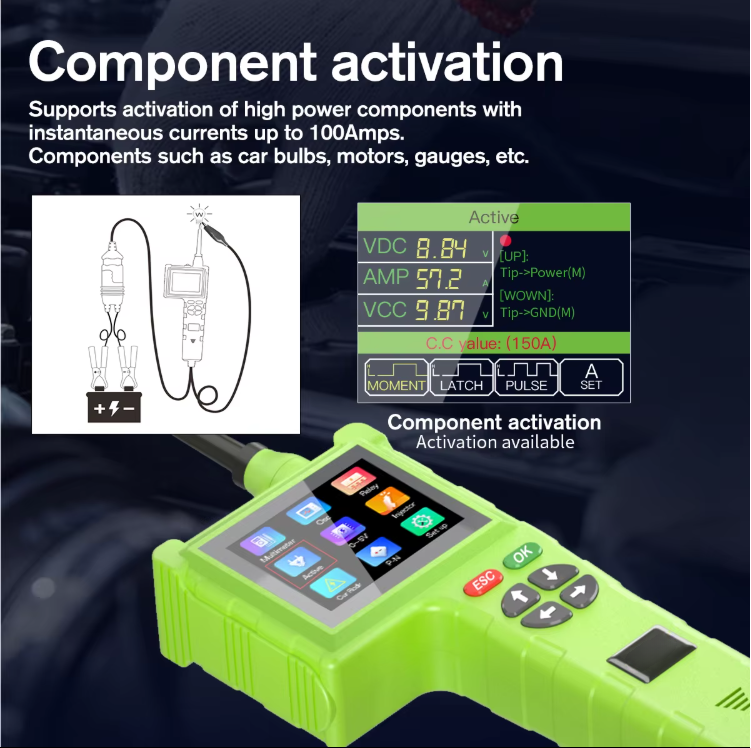

Component Activation Momentary, Latch, and Pulse modes
Technical Specifications
Measured Voltage 2mV-100V
Measured Resistance 10 milliohms-10 megohms
Component Activation Current 0A-25A (Continuous), 50A (7s), 60A (5s), 120A (Instantaneous Max)
Operating Voltage Range 9V-30V
Maximum Measuring Voltage 150V
Operating Temperature 0-60C (32-140F)
Storage Temperature -40C-70C (-40-185F)
Dimensions 23.00cm x 7.80cm x 3.00cm (9.06" x 3.07" x 1.18")
Languages
Supports 12 languages: English, Spanish, German, French, Italian, Portuguese, Polish, Russian, Vietnamese, Thailand, Arabic, Japanese
Power Supply
Powered via Car Battery or Cigarette Lighter (12V/24V)
Package Contents (13 Items)
1 x P200 PRO Master Unit
1 x Wire Finder Receiver P181
1 x User's Manual
1 x Carrying Case
1 x Probe (Black)
1 x Probe (Yellow)
1 x Alligator Clip (Black)
1 x USB to Type-C Cable
1 x USB to DC Cable
1 x Relay Test Adapter
1 x Extension Cable (Red)
1 x Battery Clamp Cable
1 x Type-C Test Cable
Advanced Automotive Diagnostics Made Easy
The P200PRO Circuit Tester streamlines electrical fault detection for both 12V and 24V vehicles. With its intuitive color TFT LCD display, users can perform various functions such as relay, injector, voltage, and battery leakage tests with clear and immediate results. This tool serves as an all-in-one solution, supporting professionals and DIYers in efficiently diagnosing and repairing complex circuit issues.
Comprehensive Testing Functions
Equipped with multiple feature modes-oscilloscope, voltage detection, continuity, fuel injector, and relay tests-the P200PRO covers all essential areas of automotive electrical diagnosis. Its oscilloscope function captures signal patterns at a rapid 2.5MSa/s sampling rate, enabling quick identification of irregularities. With a peak testing current of 20A and maximum voltage detection up to 70V, the tester accommodates a wide range of vehicular circuits.
User-Friendly Design and Robust Safety
The P200PRO is engineered for efficient workflow, featuring an ergonomic matte-finish ABS body and 6-meter cable for unrestricted movement around vehicles. Safety mechanisms such as reverse polarity and short circuit protection safeguard users and electronics. The device's backlit display and data hold function ensure clarity and accuracy even in dimly lit environments, making it an essential tool in any automotive workshop.
FAQ's of P200PRO Circuit Tester 12V 24V Oscilloscope Relay Injector Battery Leakage C-Tracer:
Q: How does the P200PRO Circuit Tester help diagnose electrical issues in vehicles?
A: The P200PRO offers multifunctional testing for relays, fuel injectors, voltage, continuity, diodes, and battery leakage. Its oscilloscope mode visually displays electrical signals, allowing users to quickly pinpoint malfunctioning components or weak circuits, saving time and minimizing guesswork in automotive diagnostics.Q: What is the process for using the P200PRO to test relays or fuel injectors?
A: Simply connect the tester to your vehicle's battery using the supplied clip and probe. Select the relay or injector test mode, and follow on-screen prompts. The 6-meter cable allows you to reach different parts of your vehicle easily, and results are displayed on the 1.77-inch LCD for clear interpretation.Q: When should I use the battery leakage detection function?
A: Use the battery leakage detection function whenever you suspect current drain is causing battery-related issues, such as unexpected battery discharge. This mode helps identify parasitic draws by detecting abnormal current flow in the circuit, preventing recurring battery problems.Q: Where can the P200PRO Circuit Tester be utilized?

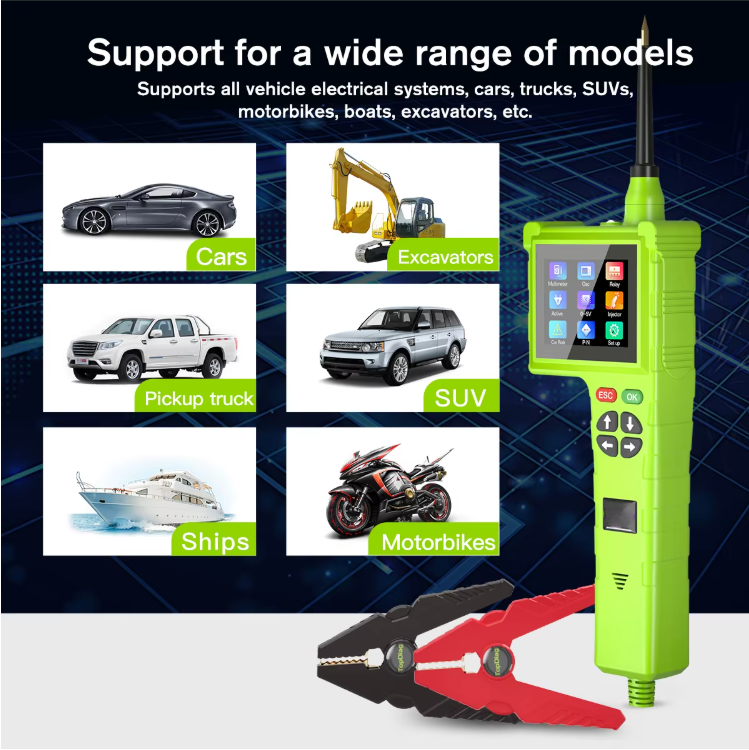

A: This tool is designed for use with automotive electrical systems in cars, trucks, buses, and motorcycles. It is ideal for garages, repair shops, and for mobile diagnostics, as well as for personal car maintenance tasks at home or on the go.Q: What are the key benefits of the P200PRO for automotive maintenance?
A: The P200PRO simplifies diagnostic workflows by combining multiple test functions in one device. Its high-resolution display, long cable, and comprehensive safety features provide accuracy and convenience, making it suitable for both novices and experienced technicians.Q: How does the reverse polarity and short circuit protection feature work?
A: These safety features automatically prevent damage to the tester and vehicle electronics if wrong connections are made or if a short circuit occurs during testing, ensuring safe operation for the user and protecting sensitive components.Tell us about your requirement
