P50 Circuit Tester 12V 24V LED Voltage Display Polarity Frequency Test Pen Probe
1983.0 INR/Piece
Product Details:
- Connecting Type Clip and Probe
- Display Type LED Digital Voltage Display
- Product Type Circuit Tester Test Pen Probe
- Part Type Test Pen
- Finish Smooth
- Material ABS Plastic and Metal Probe
- Corrosion Resistant Yes
- Click to View more
X
P50 Circuit Tester 12V 24V LED Voltage Display Polarity Frequency Test Pen Probe Price And Quantity
- 1 Piece
- 1983.0 INR/Piece
P50 Circuit Tester 12V 24V LED Voltage Display Polarity Frequency Test Pen Probe Product Specifications
- P50
- Matte Finished Handle
- ABS Plastic and Metal Probe
- Yes
- Over 100,000 Times Test
- 12V/24V Vehicles
- 17.5cm x 2.8cm x 2.1cm
- Smooth
- Automotive Electrical Circuit Testing
- Circuit Tester Test Pen Probe
- Test Pen
- LED Voltage and Frequency Display
- Manual
- -20C to +60C
- LED Digital Voltage Display
- Silent
- Approx. 50g
- 175mm x 28mm x 21mm (Approx.)
- Clip and Probe
- Black
- <15mA
- Over-voltage protection and safe insulated housing
- 0.2V (Voltage)
- Approx. 95cm
- Vehicle Battery Powered, No External Power Required
- Detects open circuit, short circuit, voltage level, fuse, and polarity
- 6V to 36V DC
- Approx. 4cm
- Positive/Negative Polarity LED Display
- Hz Display for Frequency Detection
Product Description
3 Working Modes LED Digital Display + Bulb, LED Only, Bulb Only The P50 Circuit Tester features 3 selectable working modes: LED digital display + Bulb mode for combined readout and visual confirmation, LED display only mode for accurate digital voltage reading, and Bulb only mode for traditional test light operation. Simple mode switch button for easy toggling between modes.
Real-time Voltage Display & Polarity Identification Accurate LCD real-time voltage display for instant diagnostic data. Dual LED polarity indicators instantly identify positive (Red LED) and negative (Green LED) circuits. Supports both 12V and 24V vehicle electrical systems for cars, trucks, motorcycles, and more.
Frequency Prediction for Injectors, Spark Plugs & Sensors Built-in frequency prediction function measures AC signals (5-30V) for fuel injector testing, spark plug diagnostics, crankshaft sensor testing, and idle motor detection. Essential for advanced electrical system troubleshooting.

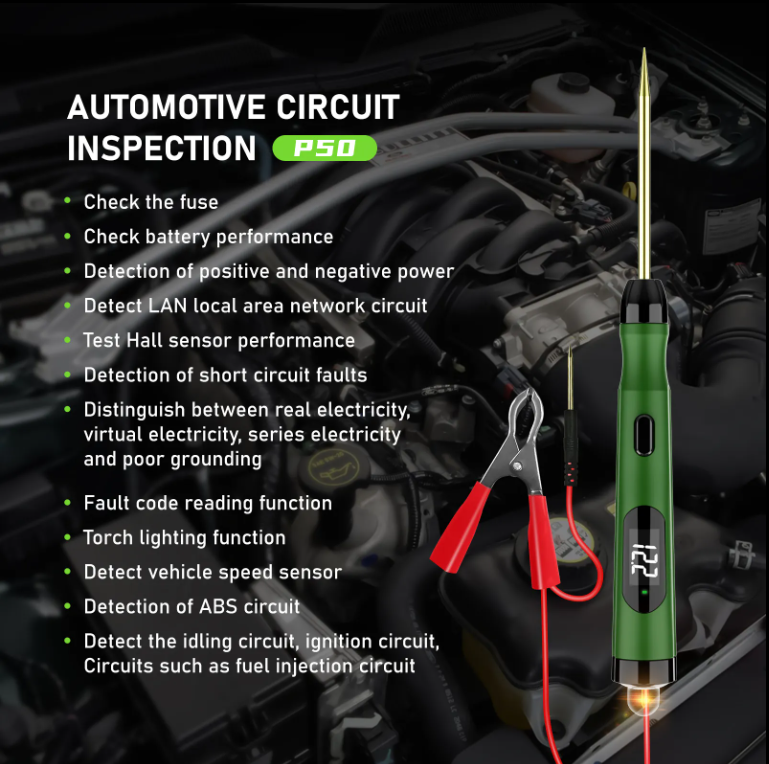

Wide Application Fuse, Battery, ABS & Ignition Circuit Testing Tests fuses, battery performance, LAN circuits, Hall sensors, ABS circuits, and ignition circuits. Also supports fault code reading and circuit inspection. Metal probe tip with spring cable and alligator clip for secure connections.
Compact Design & Complete Package Ergonomic pen-style design with metal probe, LED bulb, LED digital display, mode switch button, and spring cable with alligator clip. Package includes: P50 Circuit Tester Host, Extension Cable with Alligator Clip, User Manual, and Packaging Box.
Full Product Description:
Item No: P50
P50 Vehicle Electrical System Circuit Tester
Automotive Circuit Test Pen with 3 Working Modes, Real-time Voltage Display, Polarity Identification, and Frequency Prediction. Supports 12V and 24V electrical systems.
3 Working Modes
Mode 1: LED Digital Display + Bulb Combined readout and visual confirmation
Mode 2: LED Display Only Accurate digital voltage reading
Mode 3: Bulb Only Traditional test light operation
Core Functions
Real-time Voltage Display Accurate LCD readout for instant diagnostics

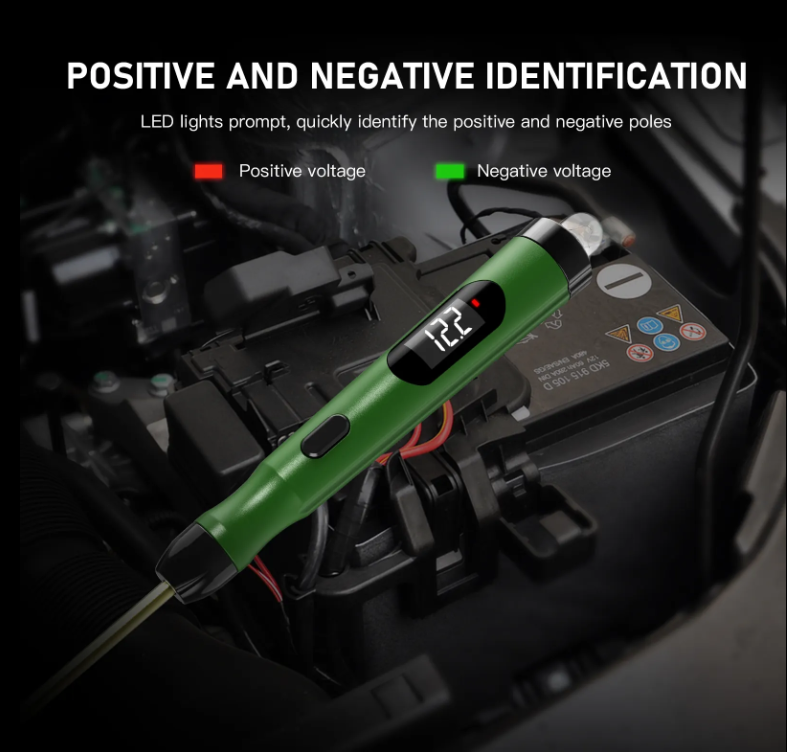

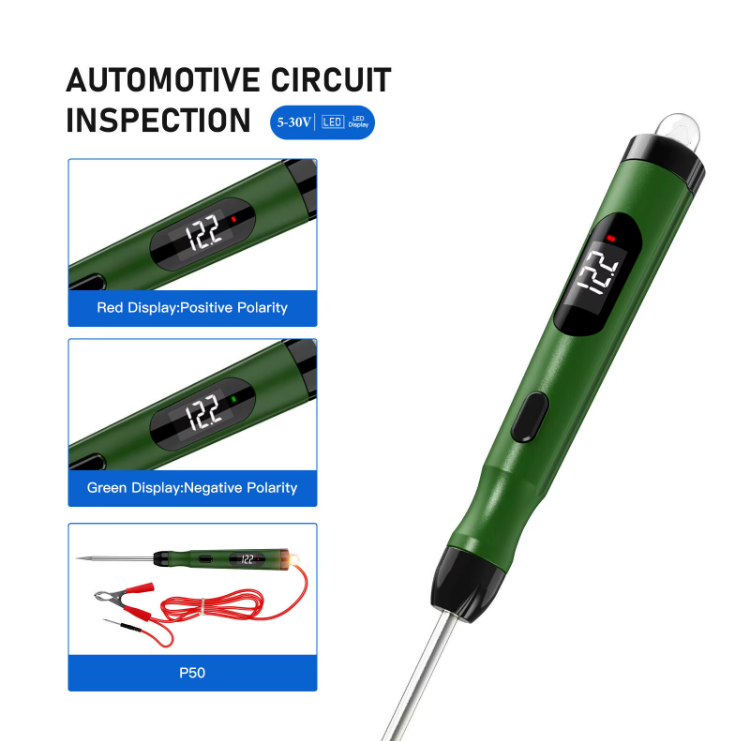

Polarity Identification Red LED (Positive), Green LED (Negative)
Frequency Prediction Measures AC signals (5-30V) for injectors, spark plugs, crankshaft sensors
Fuse Detection Quick identification of blown fuses
Circuit Inspection Comprehensive circuit testing
Idle Motor Detection Tests idle motor operation
Fault Code Reading Basic fault code diagnostics
ABS Circuit Detection Tests ABS system circuits
Battery Performance Testing Check battery condition

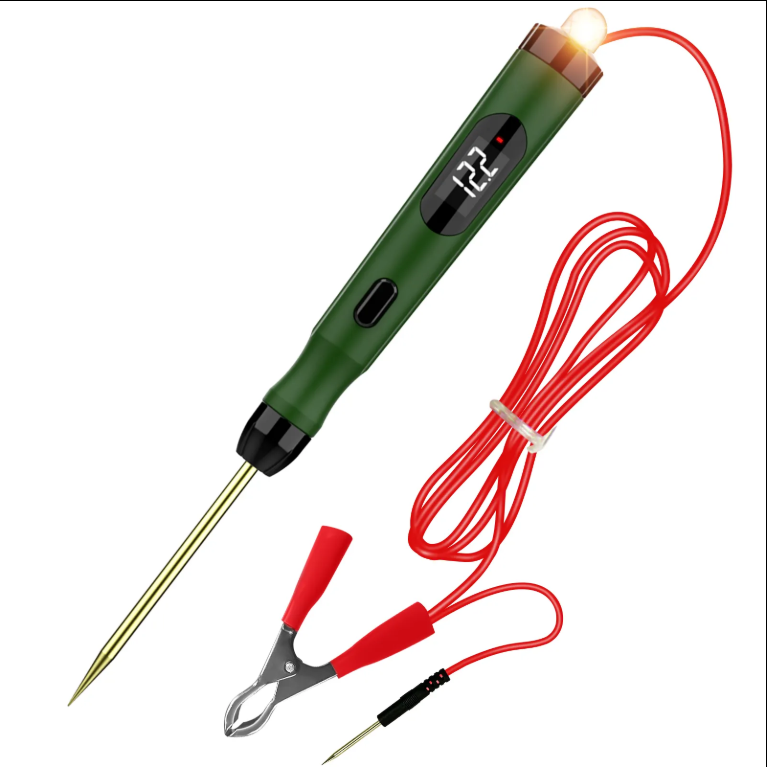

Component Diagram
Metal Probe Precision probe tip
LED Bulb Visual test indicator
LED Digital Display Real-time voltage readout
Mode Switch Button Toggle between 3 modes
Spring Cable with Alligator Clip Secure ground connection
Package Contents
1 x P50 Circuit Tester Host
1 x Extension Cable with Alligator Clip
1 x User Manual
1 x Packaging Box
Advanced LED Voltage and Frequency Display
The P50 Circuit Tester is equipped with an intuitive LED digital display that shows voltage (accuracy: 0.2V) and frequency (Hz) readings in real-time. This feature enables users to quickly assess circuit performance and diagnose issues with ease, all while maintaining clear visibility in diverse lighting conditions.
Comprehensive Automotive Circuit Analysis
Ideal for detecting open and short circuits, verifying voltage levels, checking fuses, and confirming electrical polarity, the P50 covers essential automotive diagnostic needs. Its wide voltage compatibility (6V-36V DC) and insulated construction ensure reliable and safe usage in a variety of vehicle systems.
FAQ's of P50 Circuit Tester 12V 24V LED Voltage Display Polarity Frequency Test Pen Probe:
Q: How do I use the P50 Circuit Tester on my vehicle's electrical system?
A: Simply connect the tester's clip to the vehicle battery ground, then use the probe to touch the point in the circuit you wish to test. The LED display will show the voltage and polarity, and frequency readings if applicable.Q: What types of faults can the P50 Circuit Tester detect?
A: This tester can identify open circuits, short circuits, voltage level inconsistencies, blown fuses, and electrical polarity (positive/negative) within a voltage range of 6V to 36V DC.Q: When should I use the frequency test capability of the P50 tester?
A: The frequency (Hz) display function is useful when working with circuits that involve pulsed signals or need frequency confirmation, such as sensor outputs or electronic modules in automotive systems.Q: Where is the P50 Circuit Tester most beneficial to use?
A: It's ideal for use in automotive workshops, garages, and by vehicle owners for electrical diagnostics on 12V or 24V systems, including cars, trucks, and motorcycles.Q: What process should I follow for safe operation of the P50 tester?
A: Ensure the vehicle's power is appropriate (6V-36V DC), attach the ground clip securely, and use the insulated probe to touch test points. The tester's over-voltage protection and insulated housing provide additional safety.Q: What are the main benefits of the P50 Circuit Tester over standard test pens?
A: The P50 offers digital voltage and frequency readings, polarity indication, broad voltage compatibility, and improved safety features like over-voltage protection, providing more comprehensive diagnostics with user-friendly operation.Tell us about your requirement
