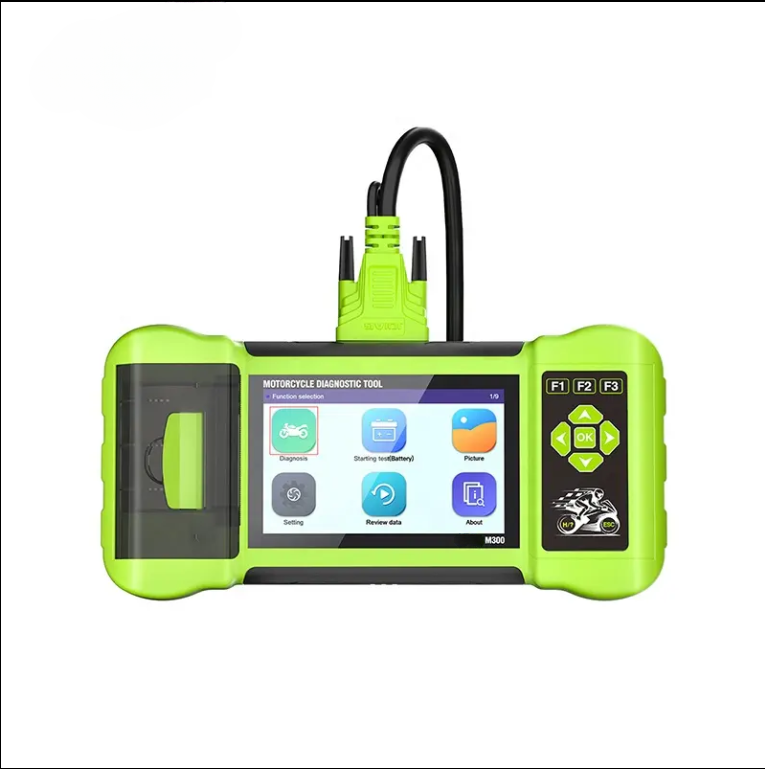

M300 Professional Motorcycle Diagnostic Scanner, Full System, 30+ Brands, Android, WiFi
37689.0 INR/Piece
Product Details:

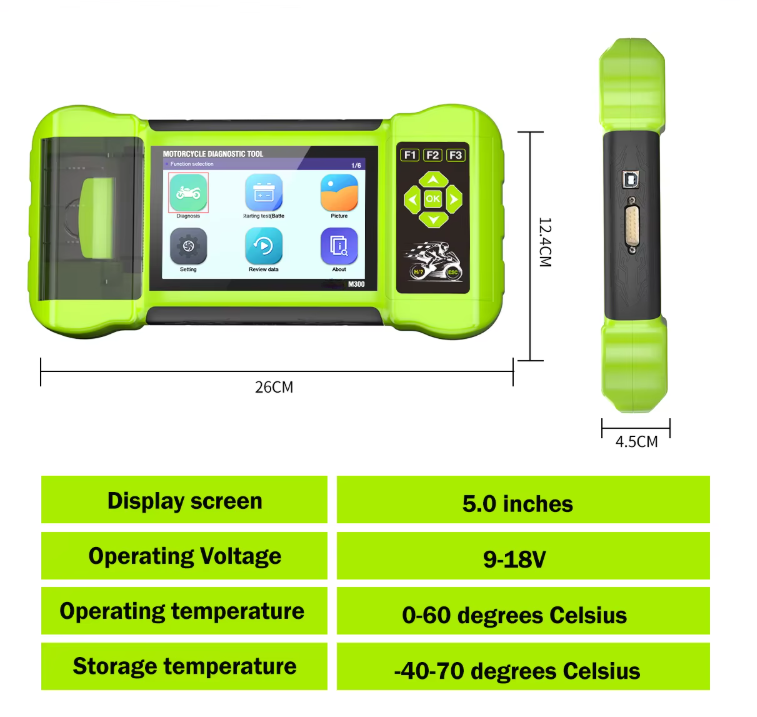

- Dimension (L*W*H) 202mm x 112mm x 37mm
- Color Black
- Size 202mm x 112mm x 37mm
- Vehicle Type Motorcycle
- Part Type Scanner
- For Use In Professional Motorcycle Maintenance & Diagnostics
- Temperature Range -10C to 50C
- Click to View more
X
M300 Professional Motorcycle Diagnostic Scanner, Full System, 30+ Brands, Android, WiFi Price And Quantity
- 1 Piece
- 37689.0 INR/Piece
M300 Professional Motorcycle Diagnostic Scanner, Full System, 30+ Brands, Android, WiFi Product Specifications
- WiFi/Bluetooth
- 202mm x 112mm x 37mm
- 50dB
- Black
- 202mm x 112mm x 37mm
- Android
- M300
- Motorcycle Diagnostic Scanner
- Scanner
- Motorcycle
- Matte Finish
- Professional Motorcycle Maintenance & Diagnostics
- -10C to 50C
- 7 inch Touchscreen
- Yes
- >5 years
- ABS Plastic
- 600g
- Matte
- Electronic & Wireless Diagnostic
- 16GB Internal, Expandable via microSD
- IP54 Rated (Splash & Dust Resistant)
- DC 9~24V/USB Charger
- 30+ Motorcycle Brands (Including Honda, Yamaha, Suzuki, Kawasaki, etc.)
- USB, OBD-II, DC Charging Port
- M300 Scanner, Carry Case, Cables, Charging Adapter, User Manual
- Full System Diagnostics, ECU Programming, Service Reset, Data Logging
- 1-Click Online Update (Free for 1 Year)
- 4000mAh Rechargeable Li-ion
- Multilingual
Product Description
PROFESSIONAL ANDROID MOTORCYCLE DIAGNOSTIC SCANNER 30+ BRANDS: A professional full-system Android-based motorcycle diagnostic scanner supporting 30+ motorcycle brands. Equipped with a large touchscreen, built-in WiFi for free online updates, and OBD-II & EOBD compatibility for comprehensive EFI motorcycle diagnostics.
EXTENSIVE BRAND COMPATIBILITY: Supports 30+ motorcycle brands including Honda, Yamaha, Suzuki, Kawasaki, KTM, Aprilia, Vespa, Piaggio, SYM, Kymco, Aeon, PGO, Hartford, Benelli, BMW, Ducati, Triumph, and more. Includes a complete set of dedicated adapter cables for all supported brands.
FULL DIAGNOSTIC FUNCTIONS: Reads system information and ECU data, reads and erases fault codes, views real-time dynamic data stream and freeze frame data, and performs component (actuator) tests. Supports CO adjustment, ISC reset, accelerator reset, ABS system test, and throttle body adaptation.
WIFI & FREE ONLINE UPDATES: Built-in WiFi enables free online software updates to expand vehicle coverage and add new features. Android OS provides an intuitive, fast interface with easy navigation.
TECHNICAL SPECS & COMPLETE KIT: Operating temperature: 0C to 70C; storage temperature: -10C to 85C; humidity: <90%. Kit includes: Main Unit, User's Manual, USB Cable, Power Cable, Main Test Cable, OBD-16P Cable, Protective Case, Plastic Tool Box, and adapter cables for all supported brands.
Full Product Description
M300 Professional Android Motorcycle Diagnostic Scanner, 30+ Brands
The M300 is a professional-grade Android-based motorcycle diagnostic scanner supporting 30+ motorcycle brands. Features a large touchscreen, built-in WiFi, and OBD-II & EOBD compatibility. Free online updates keep the tool current with expanded brand coverage and the latest service functions.
Diagnostic Functions
1. Read System Information Retrieves ECU hardware version and system details before diagnostics begin.
2. ECU Information Displays detailed ECU module data including controller identification and version.
3. Read Fault Code Identifies stored diagnostic trouble codes to pinpoint fault sources quickly.
4. Erase Fault Code Clears stored fault codes after repairs to confirm resolution.
5. Read Data Stream (Dynamic Data) Monitors live sensor data in real time for precise troubleshooting.
6. Freeze Data Records all sensor values at the moment a fault code was triggered.
7. CO Volume Adjustment Fine-tunes CO output for optimal fuel-air balance and emissions compliance.
8. ISC (Idle Speed Control) Reset Restores smooth engine idling after throttle body or fuel system service.
9. Accelerator Reset Recalibrates the accelerator position sensor after service.
10. Component Test (Actuator Test) Tests individual electronic components without disassembly.
11. ABS System Test Verifies ABS module and sensor functionality.
12. Throttle Body Adaptation Performs throttle body matching and adaptation for smooth engine response after replacement or cleaning.
Supported Motorcycle Brands
- Honda, Yamaha, Suzuki, Kawasaki
- KTM, Aprilia, Vespa, Piaggio
- SYM, Kymco, Aeon, PGO, Hartford, Benelli
- BMW, Ducati, Triumph
- And more (30+ brands total)
- OBD-II (Standard OBD-II compliant vehicles)
Technical Specifications
- Display: Large Android Touchscreen
- Operating System: Android
- Connectivity: Built-in WiFi
- Operating Temperature: 0C to 70C
- Storage Temperature: -10C to 85C
- Humidity: < 90%

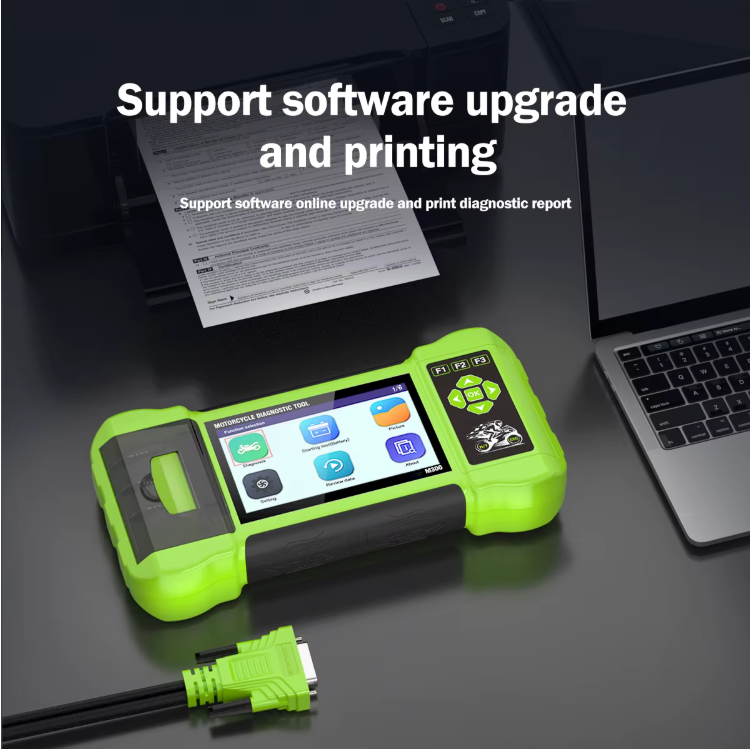

- Upgrade: Online via WiFi
- Language: Supports Multiple Languages
- OBD Standard: OBD-II & EOBD

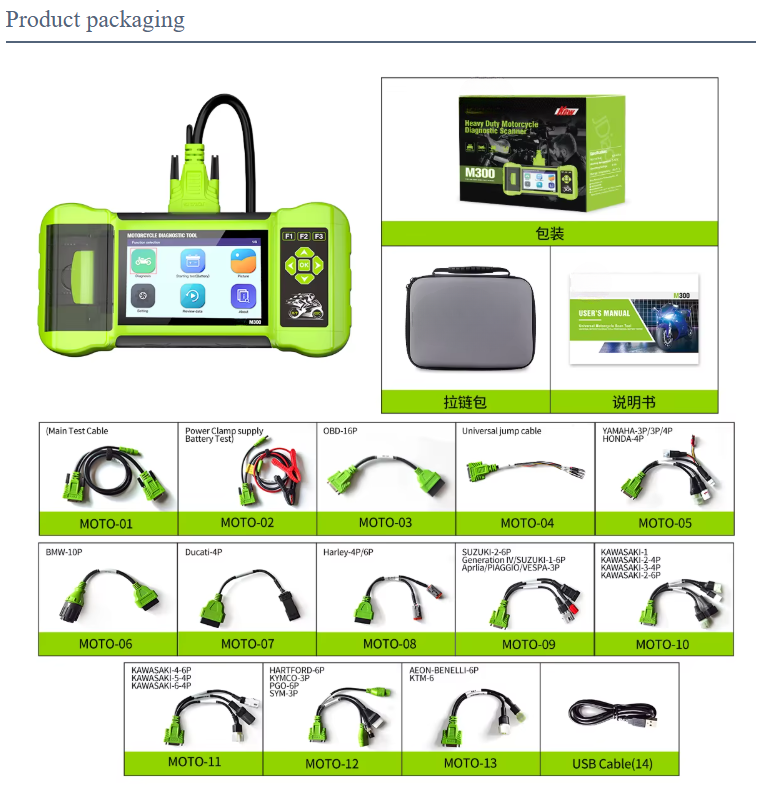

Package Contents
- M300 Main Unit
- User's Manual
- USB Cable
- Power Cable
- Main Test Cable
- OBD-16P Cable
- Protective Case
- Plastic Tool Box
- Adapter Cables (for all supported brands)
All-in-One Diagnostic Solution
The M300 scanner covers more than 30 leading motorcycle brands, offering full system diagnostics, ECU programming, and service resets. Its comprehensive compatibility makes it the preferred tool for professional mechanics and service providers, ensuring versatility across a wide range of motorcycle models.
User-Friendly and Updatable
Operating on a powerful Android system, the M300 provides an intuitive experience with its 7-inch touchscreen. The device supports 1-click online software updates, which are free for the first year, keeping your diagnostic capabilities current with the latest industry standards.
Engineered for Professional Use
This scanner is designed with a rugged ABS build, IP54 protection, and a robust 4000mAh battery-ready for tough workshop environments. Portable and reliable, it comes complete with cables, adapters, and a convenient carry case, making it ideal for on-site or mobile diagnostics.
FAQ's of M300 Professional Motorcycle Diagnostic Scanner, Full System, 30+ Brands, Android, WiFi:
Q: How do I update the software on the M300 scanner?
A: You can update the M300 scanner's software using the 1-click online update feature. Connect the device to WiFi and select the update option; software updates are free for the first year after activation.Q: What motorcycle brands are supported by the M300 diagnostic scanner?
A: The M300 supports diagnostics for over 30 motorcycle brands, including popular names such as Honda, Yamaha, Suzuki, Kawasaki, and more, covering a wide range of models globally.Q: When should I use the M300 scanner for my motorcycle?
A: Use the M300 for routine maintenance, diagnosing faults, performing ECU programming, or after repairs to ensure all systems operate correctly. It's suitable for both preventive checks and troubleshooting.Q: Where can I use the M300 diagnostic scanner?
A: The M300 is built for professional workshops, service centers, or mobile technicians. It's highly portable with IP54 rating, making it suitable for a variety of environments, from garages to outdoor locations.Q: What is the process for performing a full system diagnostics with the M300?
A: Connect the M300 scanner to the motorcycle via OBD-II or compatible ports, select the relevant make and model, and follow on-screen prompts to run diagnostics on all relevant systems. Detailed reports can be saved or exported for further analysis.Q: How long does the M300 scanner battery last during use?
A: Equipped with a 4000mAh rechargeable Li-ion battery, the M300 provides extended operation-often lasting through multiple sessions on a full charge. Battery life depends on usage frequency and diagnostic tasks performed.Q: What are the primary benefits of using the M300 scanner?
A: The M300 offers accurate, comprehensive diagnostics, time-saving ECU programming, and convenient service resets, all in a portable, durable unit. This increases efficiency, reduces downtime, and ensures motorcycles are serviced to the highest standards.Tell us about your requirement
