M200 Pro Motorcycle Diagnostic Scanner, Full System, 14+ Brands, Android Touchscreen, WiFi
25409.0 INR/Piece
Product Details:
- Display Type 7-inch IPS Touchscreen
- Weight 550 g
- Working Life Over 10,000 cycles
- Operating System Android
- Part Type Diagnostic Tool
- Connecting Type WiFi, Wired OBDII
- Vehicle Type Motorcycle
- Click to View more
X
M200 Pro Motorcycle Diagnostic Scanner, Full System, 14+ Brands, Android Touchscreen, WiFi Price And Quantity
- 25409.0 INR/Piece
- 1 Piece
M200 Pro Motorcycle Diagnostic Scanner, Full System, 14+ Brands, Android Touchscreen, WiFi Product Specifications
- ABS Plastic, Electronic Components
- <40 dB
- Matte
- Motorcycle
- Black
- M200 Pro
- Motorcycle Diagnostic Scanner
- Yes
- 7-inch IPS Touchscreen
- 550 g
- Electronic Diagnosis
- -10C to 60C
- 7-inch
- Over 10,000 cycles
- Motorcycle Electronic System Diagnosis
- Matte Finish
- Android
- 236 117 45 mm
- WiFi, Wired OBDII
- Diagnostic Tool

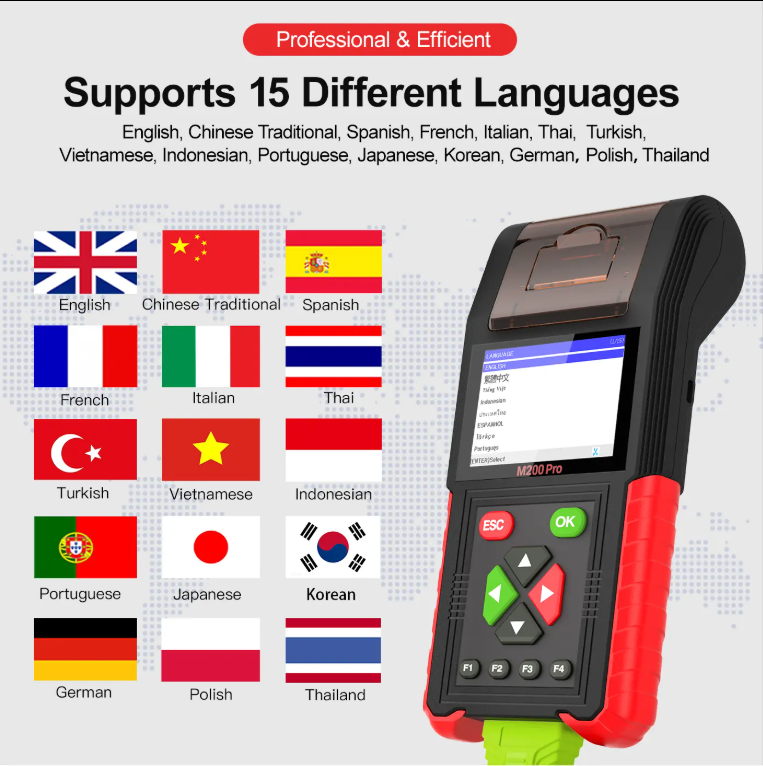

- Multilingual
- 6000mAh Rechargeable Lithium Polymer
- Main Unit, VCI, OBD Cables, Power Adapters
- Supported for VCI Connection
- Online via WiFi
- Automatic and Manual
- 1024600 pixels
- 14+ (Including Honda, Yamaha, Kawasaki, Suzuki, BMW, Ducati, KTM, Benelli, Aprilia, SYM, Kymco, VESPA, PIAGGIO, CF MOTO, AEON, and more)
- 32GB Internal Memory
- Quad-core 1.5GHz
- 5MP Rear Camera
- Micro USB
Product Description
ANDROID-BASED PROFESSIONAL MOTORCYCLE DIAGNOSTIC SCANNER: A professional full-system motorcycle diagnostic scanner running on Android with a large touchscreen display. Supports OBD-II and EOBD standards, built-in WiFi for online updates, and provides comprehensive diagnostics across all major EFI motorcycle systems.
WIDE MOTORCYCLE BRAND COMPATIBILITY: Compatible with Honda, Yamaha, Suzuki, Kawasaki, KTM, Aprilia, Vespa, Piaggio, SYM, Kymco, Aeon, PGO, Hartford, Benelli, and standard OBD-II vehicles. Includes a full set of dedicated adapter cables for all supported brands.
FULL DIAGNOSTIC FUNCTIONS: Reads system information and ECU data, reads and erases fault codes, views real-time dynamic data stream and freeze frame data, and performs component (actuator) tests. Supports CO volume adjustment, ISC reset, accelerator reset, and ABS system test.

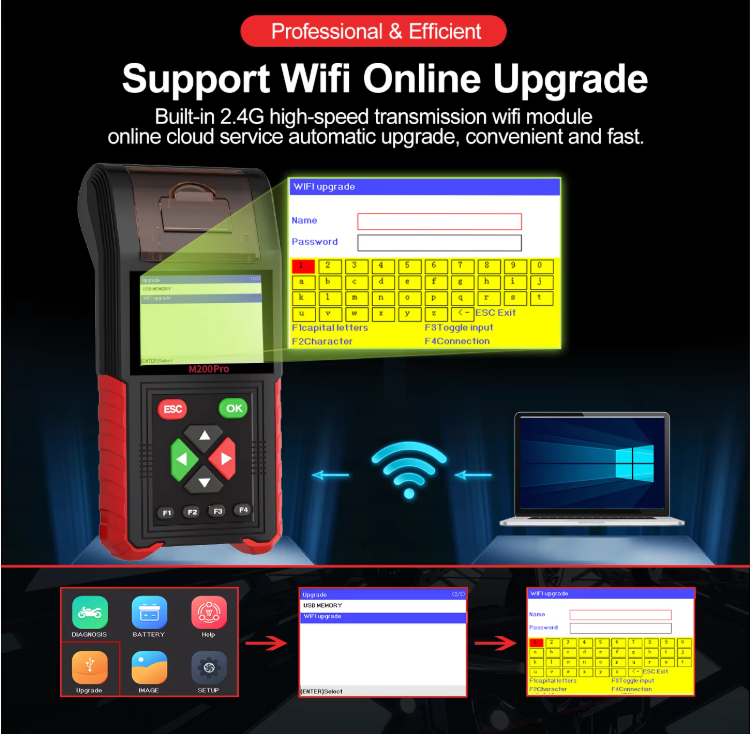

WIFI CONNECTIVITY & FREE ONLINE UPDATES: Built-in WiFi enables free online software updates to expand vehicle coverage and access new features. Android OS provides a familiar, intuitive interface with fast navigation.
TECHNICAL SPECS & COMPLETE KIT: Operating temperature: 0C to 70C; storage temperature: -10C to 85C; humidity: <90%. Kit includes: Main Unit, User's Manual, USB Cable, Power Cable, Main Test Cable, OBD-16P Cable, and all brand adapter cables.
Full Product Description
M200 Pro Android Full-System Motorcycle Diagnostic Scanner with WiFi
The M200 Pro is a professional-grade Android-based motorcycle diagnostic scanner with a large touchscreen and built-in WiFi. Supports OBD-II and EOBD standards with full-system diagnostics for 14+ motorcycle brands. Free online updates via WiFi ensure the tool stays current with the latest vehicle coverage.
Diagnostic Functions
1. Read System Information Retrieves ECU hardware version and system details before diagnostics begin.
2. ECU Information Displays detailed ECU module data including controller identification and version.
3. Read Fault Code Identifies stored diagnostic trouble codes to pinpoint fault sources quickly.
4. Erase Fault Code Clears stored fault codes after repairs to confirm resolution.
5. Read Data Stream (Dynamic Data) Monitors live sensor data in real time for precise troubleshooting.
6. Freeze Data Records all sensor values at the moment a fault code was triggered.
7. CO Volume Adjustment Fine-tunes CO output for optimal fuel-air balance and emissions compliance.
8. ISC (Idle Speed Control) Reset Restores smooth engine idling after throttle body or fuel system service.
9. Accelerator Reset Recalibrates the accelerator position sensor after throttle body replacement.
10. Component Test (Actuator Test) Tests individual electronic components without disassembly.
11. ABS System Test Verifies ABS module and sensor functionality.
Supported Motorcycle Brands
- Honda
- Yamaha
- Suzuki
- Kawasaki
- KTM
- Aprilia
- Vespa
- Piaggio
- SYM
- Kymco
- Aeon
- PGO
- Hartford
- Benelli
- OBD-II (Standard OBD-II compliant vehicles)
Technical Specifications
- Display: Large Android Touchscreen
- Operating System: Android
- Connectivity: Built-in WiFi
- Operating Temperature: 0C to 70C
- Storage Temperature: -10C to 85C
- Humidity: < 90%
- Upgrade: Online via WiFi
- Language: Supports Multiple Languages
- OBD Standard: OBD-II & EOBD
Package Contents
- M200 Pro Main Unit
- User's Manual
- USB Cable
- Power Cable
- Main Test Cable
- OBD-16P Cable
- Adapter Cables (for all supported brands)
Comprehensive Brand Coverage
The M200 Pro supports diagnostic functions for over 14 major motorcycle brands, ensuring compatibility with widely used models from Honda, Yamaha, Kawasaki, Suzuki, and more. This breadth makes it ideal for mixed-brand workshops or enthusiasts managing diverse fleets.
User-Friendly Touchscreen Interface
Equipped with a 7-inch IPS touchscreen, the M200 Pro delivers a smooth, intuitive experience. The Android-driven interface simplifies navigation between diagnostic functions, data storage, and update processes for efficient workflow.
Efficient Diagnosis and Connectivity
With both automatic and manual scan modes, WiFi-based updates, and Bluetooth VCI support, the M200 Pro ensures seamless operation and the latest data coverage. Its 6000mAh battery and corrosion-resistant build promise reliability for large-scale and on-the-go diagnostics.
FAQ's of M200 Pro Motorcycle Diagnostic Scanner, Full System, 14+ Brands, Android Touchscreen, WiFi:
Q: How do I perform a diagnostic scan with the M200 Pro?
A: Simply power on the device, connect the VCI module via Bluetooth or wired OBDII, select the motorcycle brand and model, then choose automatic or manual scan mode to begin diagnosing the electronic system.Q: What motorcycles are compatible with the M200 Pro?
A: The M200 Pro is designed to work with over 14 brands, including Honda, Yamaha, Kawasaki, Suzuki, BMW, Ducati, KTM, Benelli, Aprilia, SYM, Kymco, VESPA, PIAGGIO, and others, covering a wide range of models.Q: When do I need to update the device's database or system?
A: It is recommended to check for updates regularly, especially when connecting to new vehicle models or if the manufacturer releases upgrades. Updates are effortlessly installed online via the device's WiFi connection.Q: Where can I store and access diagnostic reports?
A: Reports and data are securely stored in the M200 Pro's 32GB internal memory, allowing easy retrieval directly from the device. You can also transfer data via USB or cloud storage based on your workflow needs.Q: What is the process for connecting the M200 Pro to a motorcycle?
A: Attach the correct OBD cable to the motorcycle's diagnostic port, connect the VCI module, pair via Bluetooth or USB, and then follow the on-screen prompts to initiate diagnostics from the touchscreen interface.Q: How does the M200 Pro benefit professional workshops and service providers?
A: Its wide brand support, substantial data storage, fast processing, and wireless updates streamline diagnostic routines, reduce downtime, and enhance efficiency, making it a valuable investment for multi-brand service centers.Tell us about your requirement
