M100 Pro 2-in-1 Motorcycle Diagnostic Scanner & Battery Tester, 14 Brands, Color Screen
18797.0 INR/Set
Product Details:
- Dimension (L*W*H) 165mm x 80mm x 35mm
- Size Compact handheld
- Surface Treatment Matte finish
- Model No M100 Pro
- Temperature Range -20C to 60C
- Operating System Proprietary embedded OS
- Working Life Over 3 years
- Click to View more
X
M100 Pro 2-in-1 Motorcycle Diagnostic Scanner & Battery Tester, 14 Brands, Color Screen Price And Quantity
- 1 Set
- 18797.0 INR/Set
M100 Pro 2-in-1 Motorcycle Diagnostic Scanner & Battery Tester, 14 Brands, Color Screen Product Specifications
- Matte finish
- 2-in-1 Motorcycle Diagnostic Scanner & Battery Tester
- Textured
- 165mm x 80mm x 35mm
- Compact handheld
- M100 Pro
- Wired OBD and clip connectors
- Yes
- Black with color display
- Silent operation
- -20C to 60C
- Approx. 320g
- Over 3 years
- Proprietary embedded OS
- Diagnostic tool and battery tester
- Motorcycles
- Electronic diagnosis and test method
- High-strength ABS plastic and electronic components
- Motorcycle diagnostics and battery testing
- 2.8-inch color LCD screen
- Includes main device, connection cables, carrying case, user manual
- 14 Brands including major manufacturers like Honda, Yamaha, Suzuki, Kawasaki, BMW, KTM, and others
- USB firmware upgrade
- 6V-12V batteries
- DC 12V via vehicle battery or internal power
- Supports multiple motorcycle diagnostic protocols
- Multi-language menu (English, Spanish, etc.)

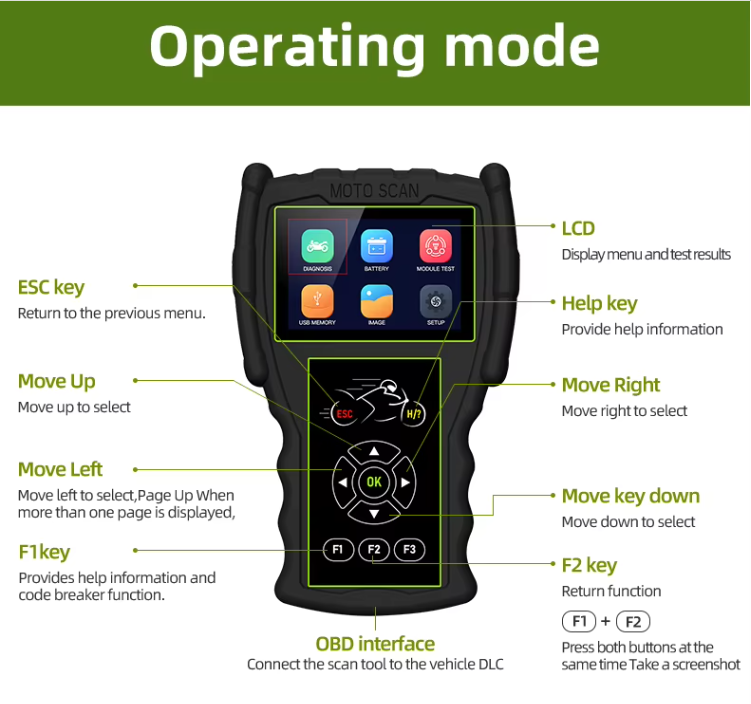

- Intuitive menu navigation with function keys
- -30C to 70C, dry environment
Product Description
2-IN-1 MOTO SCANNER & PROFESSIONAL BATTERY TESTER: A professional-grade 2-in-1 handheld tool combining a full-system motorcycle EFI diagnostic scanner and a professional battery tester. Features a color screen, supports multiple languages, and is compatible with OBD-II and EOBD standards. Designed for professional workshops and serious riders.
WIDE MOTORCYCLE BRAND COMPATIBILITY: Compatible with 14 motorcycle brands Honda, Yamaha, Suzuki, Kawasaki, KTM, Aprilia, Vespa, Piaggio, SYM, Kymco, Aeon, PGO, Hartford, Benelli plus standard OBD-II vehicles. Includes a full set of dedicated adapter cables covering all supported connector types.
FULL MOTO SCANNER FUNCTIONS: Reads system information and ECU data, reads and erases fault codes, views real-time dynamic data stream and freeze frame data. Performs component (actuator) tests, CO volume adjustment, ISC (Idle Speed Control) reset, accelerator reset, and ABS system test.
PROFESSIONAL BATTERY TESTER WITH 5 TEST MODES: The integrated battery tester offers: Quick Test, Standard Test, Start Test (cranking performance), Charge Test (charging system verification), and Wave Test (real-time voltage waveform). Uses high-quality chips with large-capacity storage for fast, reliable diagnostics.
COMPLETE KIT INCLUDED: Operates on DC 1015V / 250mA. Operating temperature: 0C to 70C; storage temperature: -10C to 85C; humidity: <90%. USB upgrade port and COM communication port. Kit includes: Main Unit, User's Manual, USB Cable, Power Cable, Main Test Cable, OBD-16P Cable, Protective Case, and Plastic Tool Box.
Full Product Description
M100 Pro 2-in-1 Moto Scanner + Professional Battery Tester
The M100 Pro is a professional-grade 2-in-1 handheld diagnostic tool combining a full-system OBD-II & EOBD motorcycle scanner with a professional battery tester. It features a color display, supports multiple languages, and uses high-quality chips for comprehensive failure analysis to quickly locate vehicle faults.
Moto Scanner Functions
1. Read System Information Retrieves ECU hardware version and system details for a full overview of the motorcycle's electronic control unit.
2. ECU Information Displays detailed information from the ECU module, including controller identification and version data.
3. Read Fault Code Quickly identifies stored diagnostic trouble codes from the ECU to pinpoint the source of a fault.
4. Erase Fault Code Clears stored fault codes from the ECU after repairs are completed.
5. Read Data Stream (Dynamic Data) Monitors real-time live sensor data from the engine and related systems.
6. Freeze Data Captures a snapshot of all sensor values at the exact moment a fault code was triggered.
7. CO Volume Adjustment Fine-tunes the CO output level for optimal engine fuel-air balance and emissions performance.
8. ISC (Idle Speed Control) Reset Resets the idle speed control system to restore smooth engine idling after service.
9. Accelerator Reset Recalibrates the accelerator position sensor after throttle body replacement or service.
10. Component Test (Actuator Test) Performs functional tests on individual electronic components to confirm correct operation.
11. ABS System Test Tests the Anti-lock Braking System to verify ABS module and sensor function.
Battery Tester Functions
1. Quick Test Performs a rapid battery health check in seconds, instantly identifying weak or failed batteries.
2. Standard Test Conducts a detailed battery analysis to evaluate battery condition and remaining life.
3. Start Test Measures battery voltage output during engine cranking to assess starting power.
4. Charge Test Checks charging system output voltage while the engine is running to identify charging faults.
5. Wave Test Displays real-time voltage waveforms for deeper battery behavior analysis under load.
Supported Motorcycle Brands
- Honda
- Yamaha
- Suzuki
- Kawasaki
- KTM
- Aprilia
- Vespa
- Piaggio
- SYM
- Kymco
- Aeon
- PGO
- Hartford
- Benelli
- OBD-II (Standard OBD-II compliant vehicles)
Technical Specifications
- Power Supply: DC 10V 15V
- Operating Current: 250mA
- Operating Temperature: 0C to 70C
- Storage Temperature: -10C to 85C
- Humidity: < 90%
- Upgrade Port: USB Port
- Communication Port: COM Port

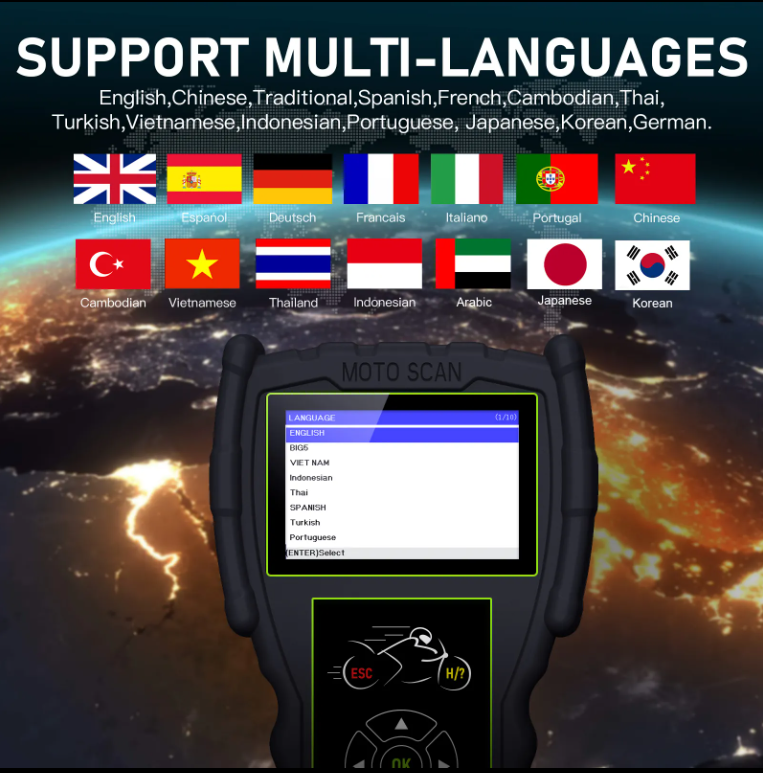

- Language: Supports Multiple Languages

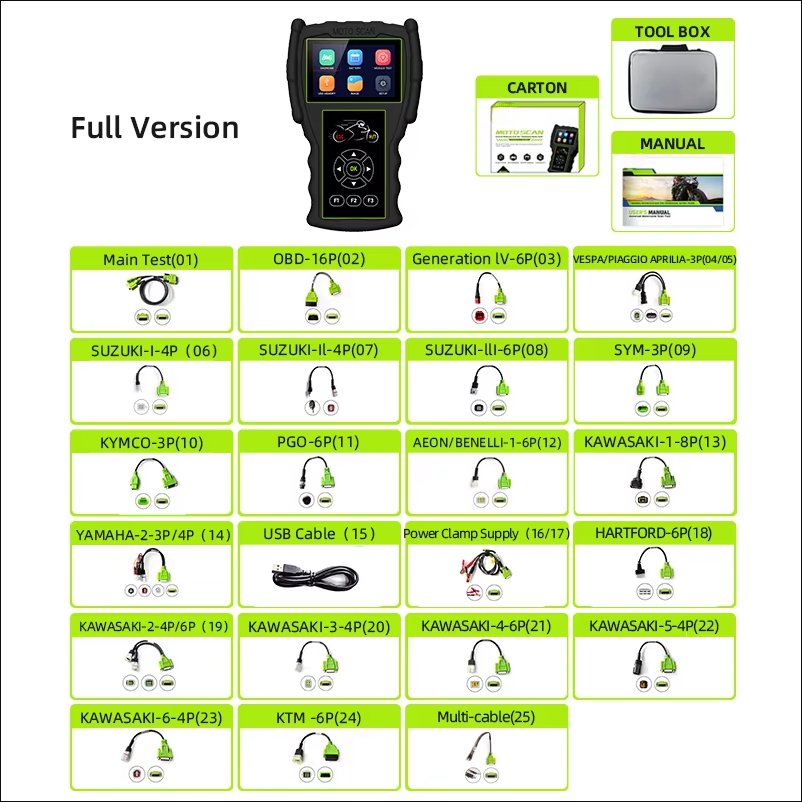

Package Contents
- Scan Tool Main Unit
- User's Manual
- USB Cable
- Power Cable
- Main Test Cable (MOTO-01)
- OBD-16P Cable (MOTO-03)
- Protective Case
- Plastic Tool Box
Multi-Brand Diagnostic Power
With support for 14 leading motorcycle manufacturers, the M100 Pro offers expansive compatibility, making it perfect for multi-brand service environments. From fast error detection to advanced troubleshooting, it streamlines diagnostics and enhances productivity for mechanics and riders alike.
Efficient Battery Health Assessment
The M100 Pro facilitates precise battery evaluation for 6V and 12V batteries, crucial for reliable starting and long-term vehicle health. Its comprehensive test reports help users identify battery issues quickly, preventing unexpected breakdowns and ensuring peace of mind on the road.
User-Friendly Interface and Robust Build
Featuring a crisp 2.8-inch color display and intuitive menu navigation, the M100 Pro is easy to operate. Made from high-strength ABS plastic with a textured matte finish, it's built to withstand tough workshop conditions while remaining compact and portable.
FAQ's of M100 Pro 2-in-1 Motorcycle Diagnostic Scanner & Battery Tester, 14 Brands, Color Screen:
Q: How do I use the M100 Pro to diagnose my motorcycle?
A: Connect the M100 Pro to your motorcycle using the included wired OBD or clip connectors, then follow the on-screen menu to select your motorcycle brand and model. The intuitive interface will guide you through fault code retrieval, system tests, and other diagnostic functions.Q: What brands of motorcycles are supported by the M100 Pro diagnostic scanner?
A: The device is compatible with 14 popular brands, including Honda, Yamaha, Suzuki, Kawasaki, BMW, KTM, and several others, enabling service across a wide range of makes and models.Q: When should I utilize the battery testing feature?
A: Use the battery tester regularly-especially before long trips or after periods of vehicle inactivity-to check the health of your 6V or 12V batteries and to prevent unexpected starting issues.Q: Where can I update the firmware of the M100 Pro?

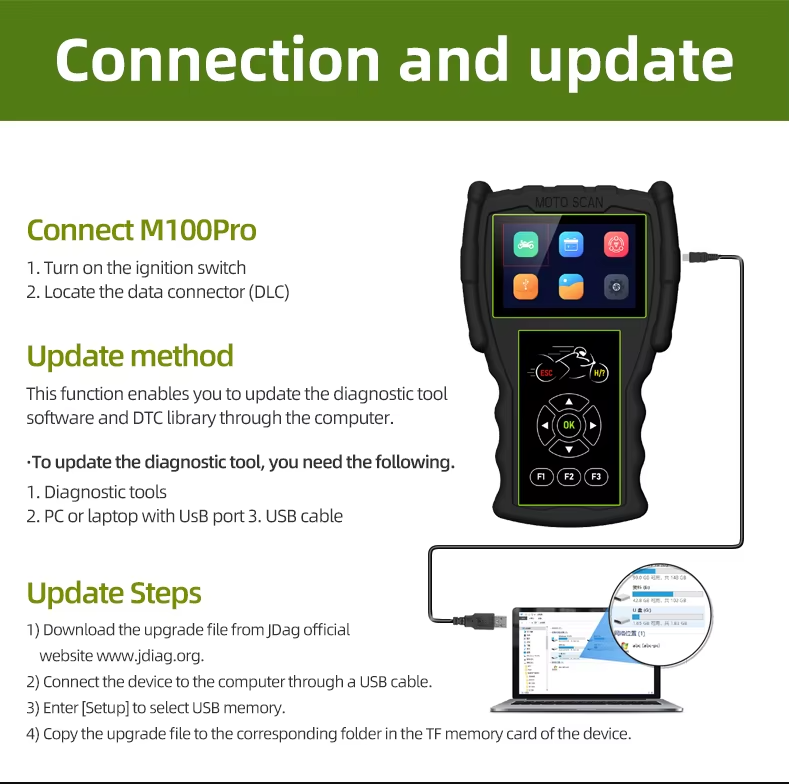

A: Firmware updates are performed via the device's USB interface. Simply connect the scanner to your computer and follow the instructions provided in the user manual to ensure you have the latest software and features.Q: What is the maintenance process for the M100 Pro?
A: Store the device in the provided carrying case in a dry environment at temperatures between -30C and 70C. Clean the surfaces with a soft, dry cloth and avoid exposure to water or corrosive substances for optimal performance.Q: How does the color screen benefit the user?
A: The 2.8-inch color LCD screen displays clear menus and diagnostic information, making the tool easy to read and navigate even in bright workshop environments. This helps users complete diagnostic and battery tests more efficiently.Q: What are the benefits of using the M100 Pro for motorcycle maintenance?
A: By combining diagnostic and battery testing functions in one compact tool, the M100 Pro saves time, reduces equipment costs, and empowers users to quickly identify and resolve vehicle issues-enhancing both safety and operational reliability.Tell us about your requirement
