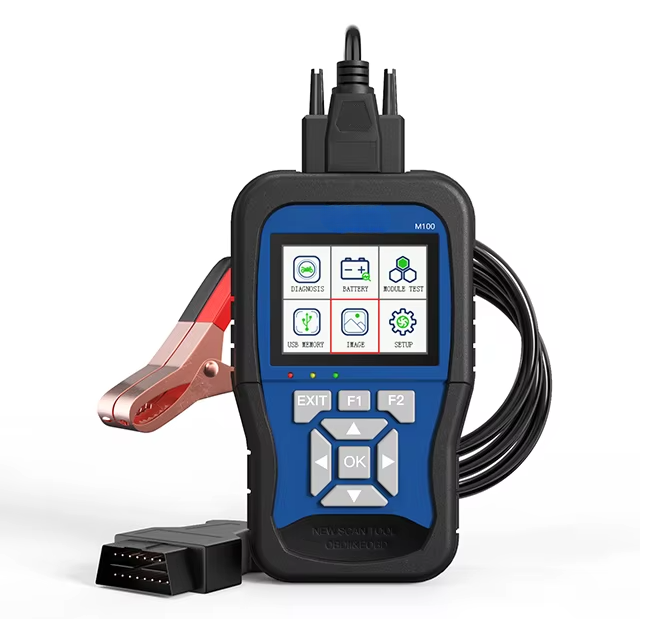

M100 2-in-1 Motorcycle Diagnostic Scanner & Battery Tester, 14 Brands, 3.2" Color Screen

Product Description

2-IN-1 MOTO SCANNER & PROFESSIONAL BATTERY TESTER: A powerful 2-in-1 handheld tool combining a full-system motorcycle EFI scanner and a professional battery tester in a single device. Features a bright 3.2-inch color screen, supports multiple languages, and provides comprehensive failure analysis to quickly locate vehicle faults. Compatible with OBD-II and EOBD standards.

WIDE MOTORCYCLE BRAND COMPATIBILITY: Compatible with 14 popular motorcycle brands Honda, Yamaha, Suzuki, Kawasaki, KTM, Aprilia, Vespa, Piaggio, SYM, Kymco, Aeon, PGO, Hartford, Benelli plus standard OBD-II vehicles. Includes 10 dedicated adapter cables (MOTO-01 through MOTO-13) covering a wide range of connector types for the supported brands.

FULL MOTO SCANNER FUNCTIONS: Reads system information and ECU information, reads and erases fault codes, views real-time dynamic data stream and freeze frame data. Performs component (actuator) tests, CO idle speed adjustment, CO volume adjustment, ISC (Idle Speed Control) reset, accelerator reset, and ABS system test all from one easy-to-use interface.

PROFESSIONAL BATTERY TESTER WITH 5 TEST MODES: The integrated battery tester offers five comprehensive test modes: Quick Test, Standard Test, Start Test (cranking performance), Charge Test (charging system verification), and Wave Test (real-time voltage waveform). Built-in large-capacity storage using high-quality chips ensures fast and reliable operation.

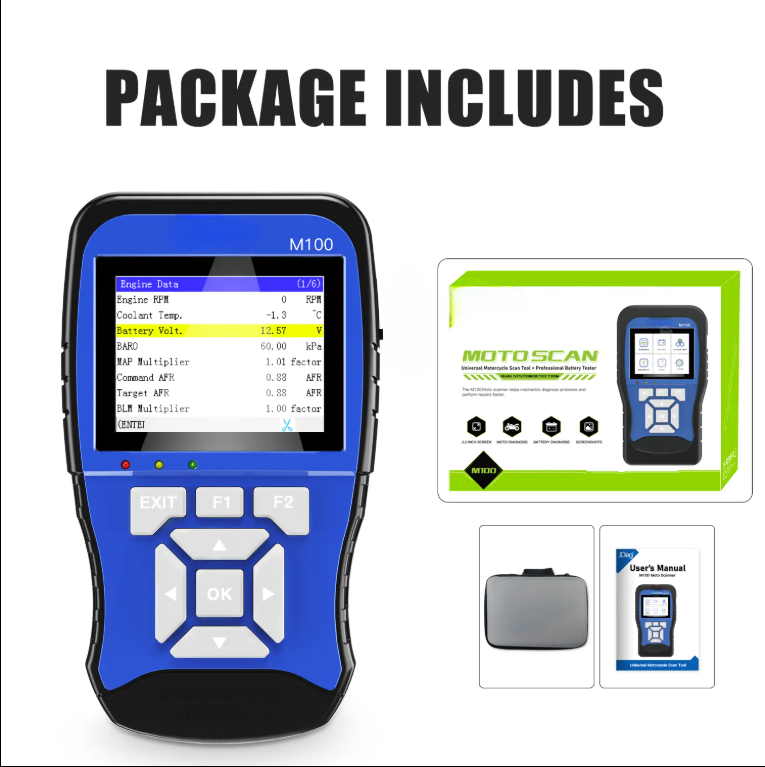

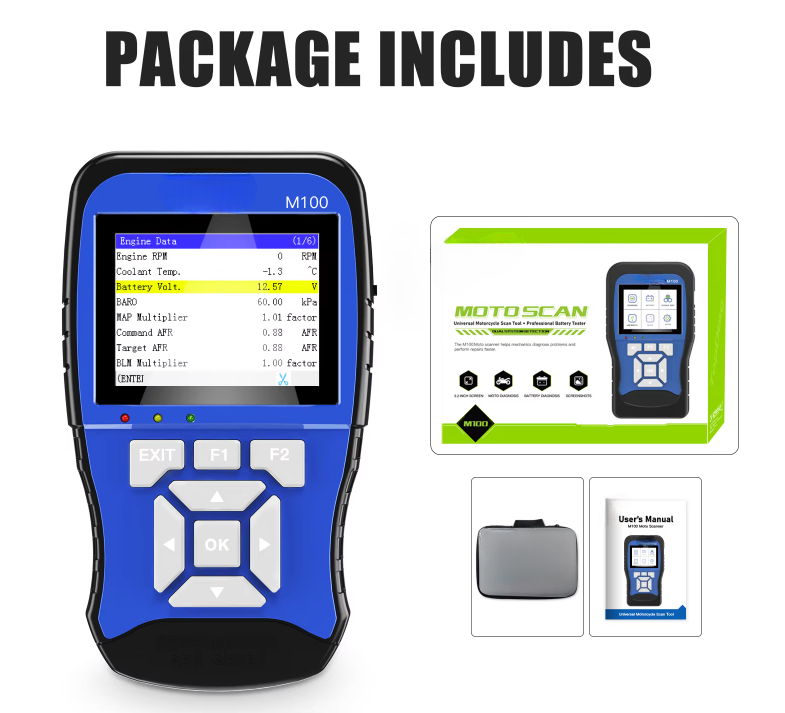

TECHNICAL SPECS & COMPLETE KIT: Operates on DC 1015V / 250mA. 3.2-inch color screen. Operating temperature: 0C to 70C; storage temperature: -10C to 85C; humidity: <90%. USB upgrade port and COM communication port. Kit includes: Scan Tool Main Unit, User's Manual, USB Cable, Power Cable, Main Test Cable, OBD-16P Cable, Protective Case, and Plastic Tool Box.

Full Product Description

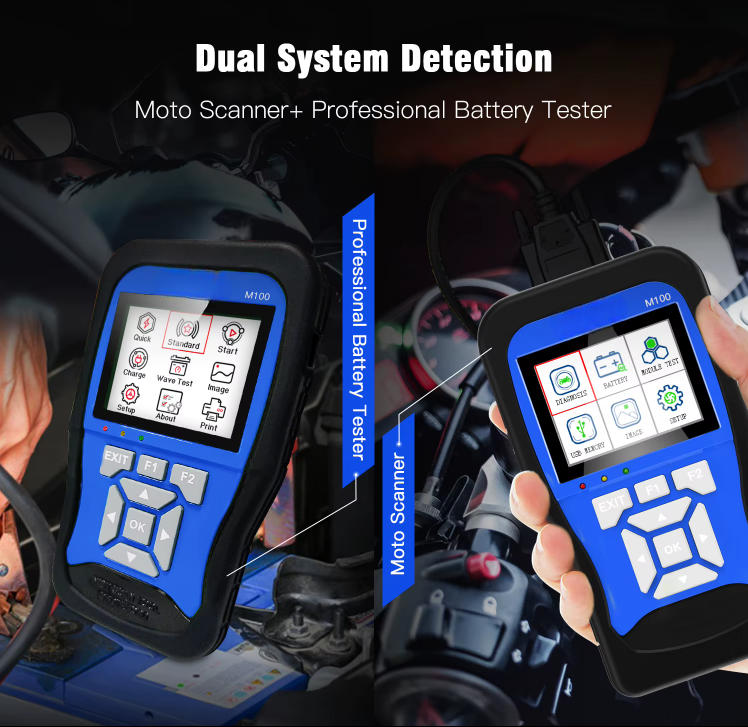

M100 2-in-1 Moto Scanner + Professional Battery Tester

The M100 is a professional-grade 2-in-1 handheld diagnostic tool featuring a 3.2-inch color screen and support for multiple languages. It combines a full-system OBD-II & EOBD motorcycle scanner with a professional battery tester, providing comprehensive failure analysis and using high-quality chips to quickly locate vehicle faults. Ideal for workshops, roadside diagnostics, and personal use.

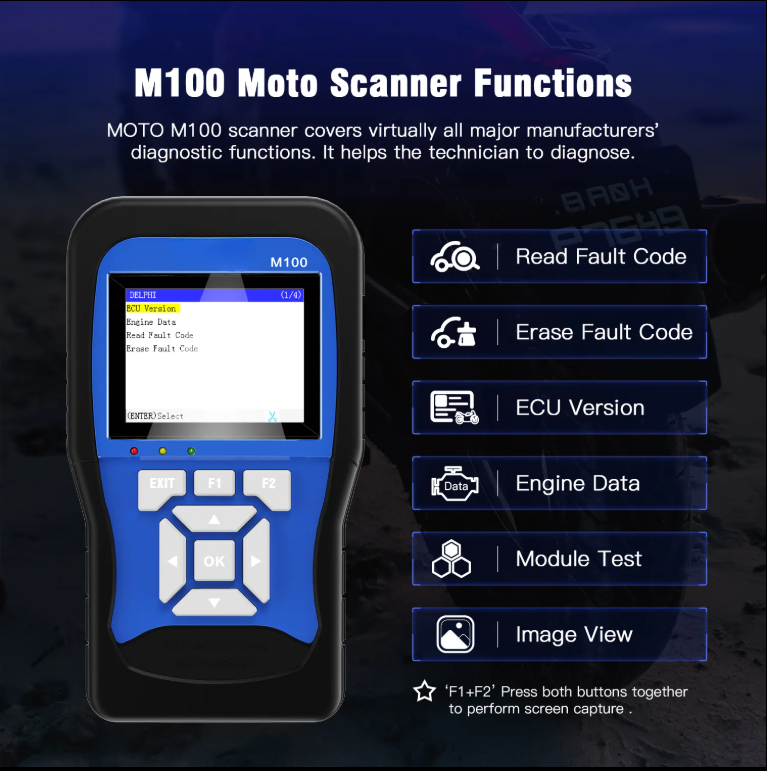

Moto Scanner Functions

1. Read System Information Retrieves ECU hardware version and system details, giving a full overview of the motorcycle's electronic control unit before diagnostics begin.

2. ECU Information Displays detailed information from the ECU module, including controller identification and version data.

3. Read Fault Code Quickly identifies stored diagnostic trouble codes from the ECU to pinpoint the source of a fault.

4. Erase Fault Code Clears stored fault codes from the ECU after repairs are completed, confirming the issue has been resolved.

5. Read Data Stream (Dynamic Data) Monitors real-time live sensor data from the engine and related systems, allowing observation of parameter fluctuations during operation.

6. Freeze Data Captures a snapshot of all sensor values at the exact moment a fault code was triggered, providing critical context for diagnosing intermittent faults.

7. CO Idle Speed Adjustment / CO Volume Adjust Fine-tunes the CO (carbon monoxide) output and idle speed for optimal engine fuel-air balance and emissions performance.

8. ISC (Idle Speed Control) Reset Resets the idle speed control system to restore smooth engine idling after throttle body or fuel system service.

9. Accelerator Reset Recalibrates the accelerator position sensor after throttle body replacement or service, ensuring accurate throttle response.

10. Component Test (Actuator Test) Performs functional tests on individual electronic components to confirm correct operation without disassembly.

11. ABS System Test Tests the Anti-lock Braking System to verify that the ABS module and sensors are functioning correctly.

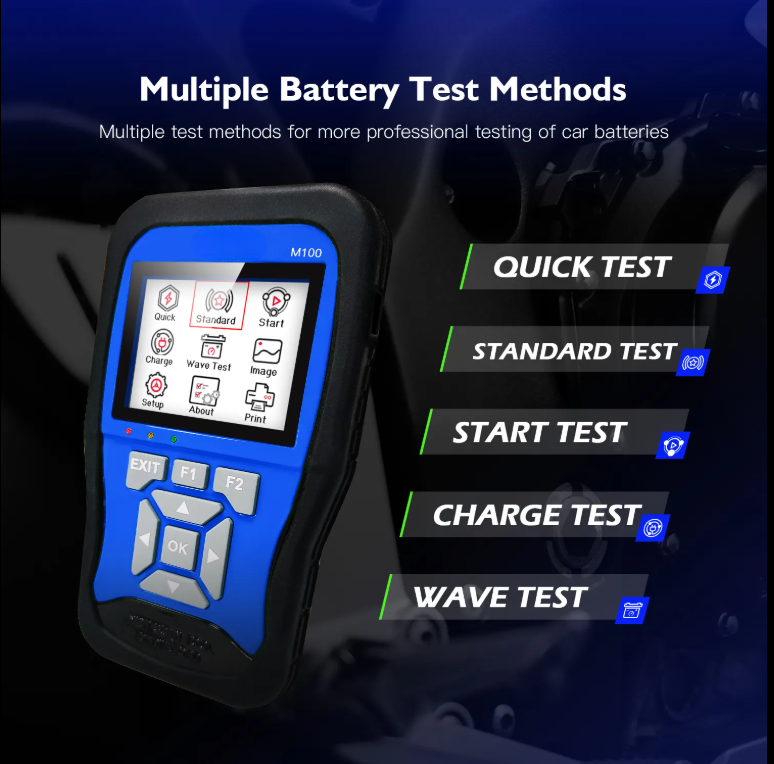

Battery Tester Functions

1. Quick Test Performs a rapid battery health check in seconds, instantly identifying weak or failed batteries.

2. Standard Test Conducts a detailed battery analysis to provide a thorough evaluation of battery condition and remaining life.

3. Start Test Measures the battery's voltage output during engine cranking to assess whether it can deliver sufficient power to start the engine reliably.

4. Charge Test Checks the charging system's output voltage while the engine is running to identify undercharging or overcharging conditions.

5. Wave Test Displays real-time voltage waveforms, providing a deeper analysis of battery behavior under load to detect intermittent electrical issues.

Supported Motorcycle Brands

The M100 supports the following brands and OBD standards (as shown in product images):

• Honda
• Yamaha
• Suzuki
• Kawasaki
• KTM
• Aprilia
• Vespa
• Piaggio
• SYM
• Kymco
• Aeon
• PGO
• Hartford
• Benelli
• OBD-II (Standard OBD-II compliant vehicles)

Technical Specifications

• Power Supply: DC 10V 15V
• Operating Current: 250mA
• Screen: 3.2-inch Color Screen
• Operating Temperature: 0C to 70C
• Storage Temperature: -10C to 85C
• Humidity: < 90%
• Upgrade Port: USB Port
• Communication Port: COM Port
• Language: Supports Multiple Languages
